Maintenance Instruction
5.6.2 Front drive axle main drive adjustment
Normal axial clearance between front wheel bearings 8 and 9 is
0.05~0.15mm. During the operation, if the clearance is greater
than 0.4mm, the front wheel of the tractor will move from side to
side and the bearing may be damaged by the impact. Therefore, it
is necessary to adjust the clearance immediately. When adjusting,
prop up the front wheel above the ground, remove bearing cap
and pull out split pin 7 of nut 6. Screw nut 6 until the clearance
disappears, return nut 6 by 1/15~1/7 circle, then lock nut 6 with
split pin 7 and install bearing cap.

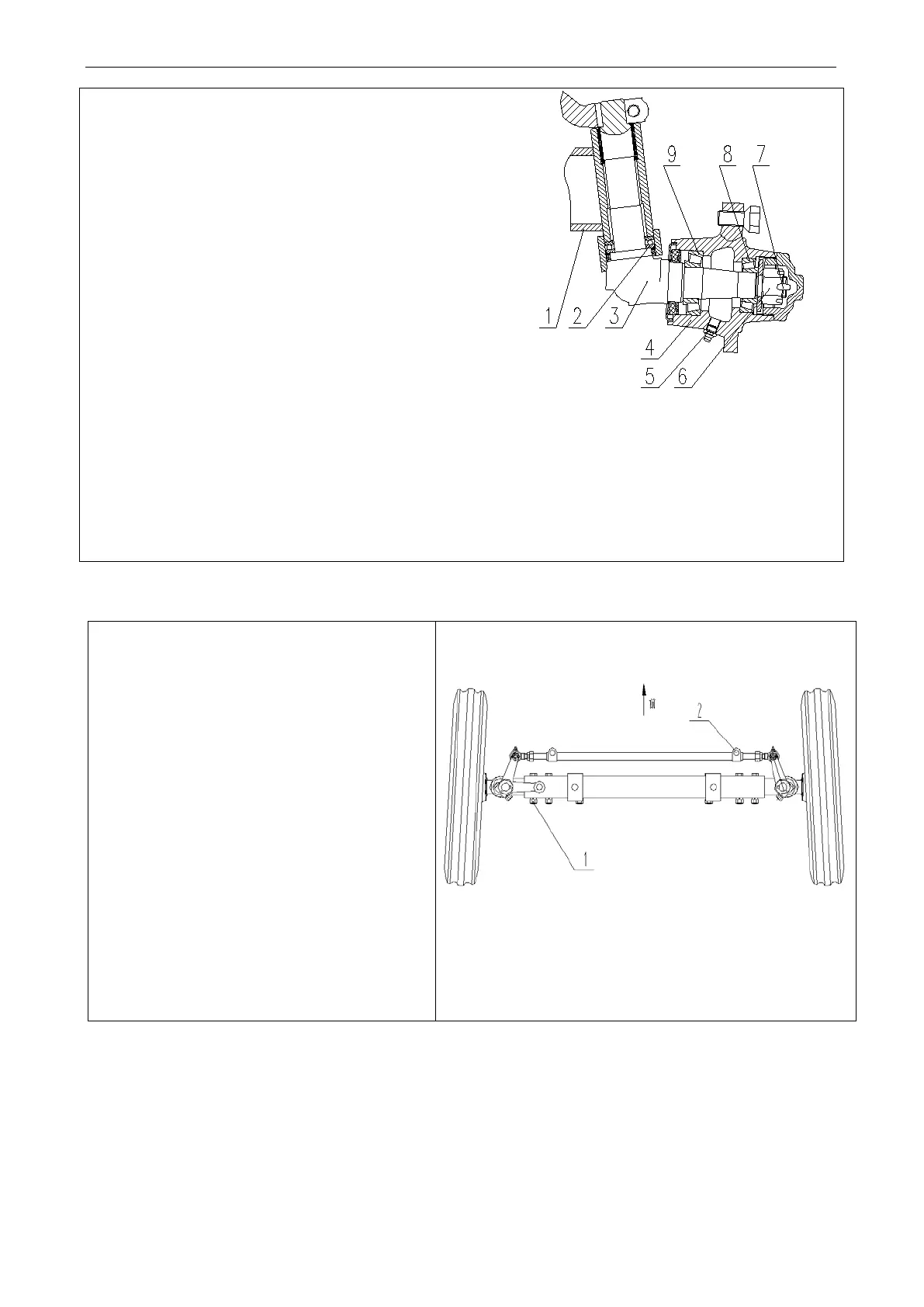

Figure 5-8 Front Wheel Hub
1. Front Shaft Bushing 2. Thrust Bearing 3. Steering Knuckle
4. Front Wheel Hub 5. Oil Cup 6. Nut 7. Split Pin
8. Bearing 9. Bearing
5.6.3 Adjustment for Front Wheel Tread
Adjustment for two-wheel driven tractor:
prop up the
front shaft with a jack, remove
bolt 1 for left/right inner/outer sleeve and
then remove connecting bolt 2 on tie rod.
Adjust left/right inner sleeve position and
left/right tie rod length. Finally, install bolts
and lock the removed bolts. Three options for
wheel tread are 1100mm, 1200mm and
1300mm.
Narrow 1050mm wheel tread is optional;
Figure 5-10 Front Wheel Tread Adjustment
62
