5.6.4 Adjustment for Rear Wheel Tread
 Stepless adjustment for r
ear wheels is achieved by
changing fixed position of rear wheel hub on driving
shaft. At the same time, step adjustment can be made
by turning drive wheel rim over and exchanging
left/right drive wheel.
For the first rim installation type, adjustment range of tread
is 1050~1260mm.
For the second rim installation type, adjustment range of
tread is 1310~1460mm.
 TE series 25-
28hp tractor can select 960mm narrow
tread;
 TE series 30-32hp tractor can select 1000mm narrow
tread.

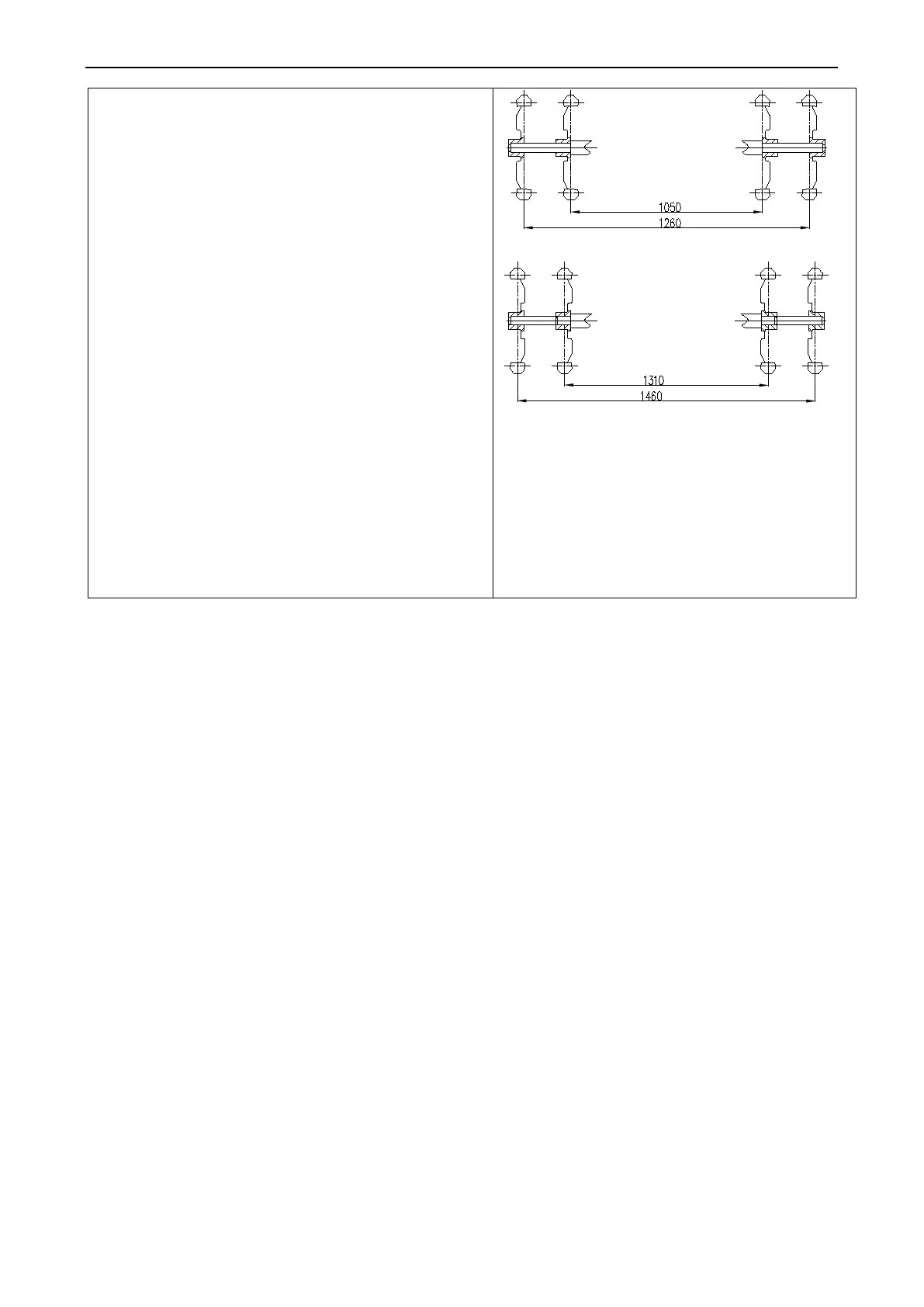

Figure 5-11 Adjustment of Rear Wheel Tread
