Operation Instruction
3.1 Product description
This manual describes usage, technical maintenance, adjustment, fault and troubleshooting and so on for LOVOL
series wheeled tractors.
LOVOL series wheeled tractor is of multi-purpose medium-
scale agriculture tractor, featured with compact
structure, handy operation, flexible steering, large towing force, and convenient maintenance etc.
3.2 Tractor maneuvering mechanism and instrument
3.2.1 Tractor maneuvering mechanism

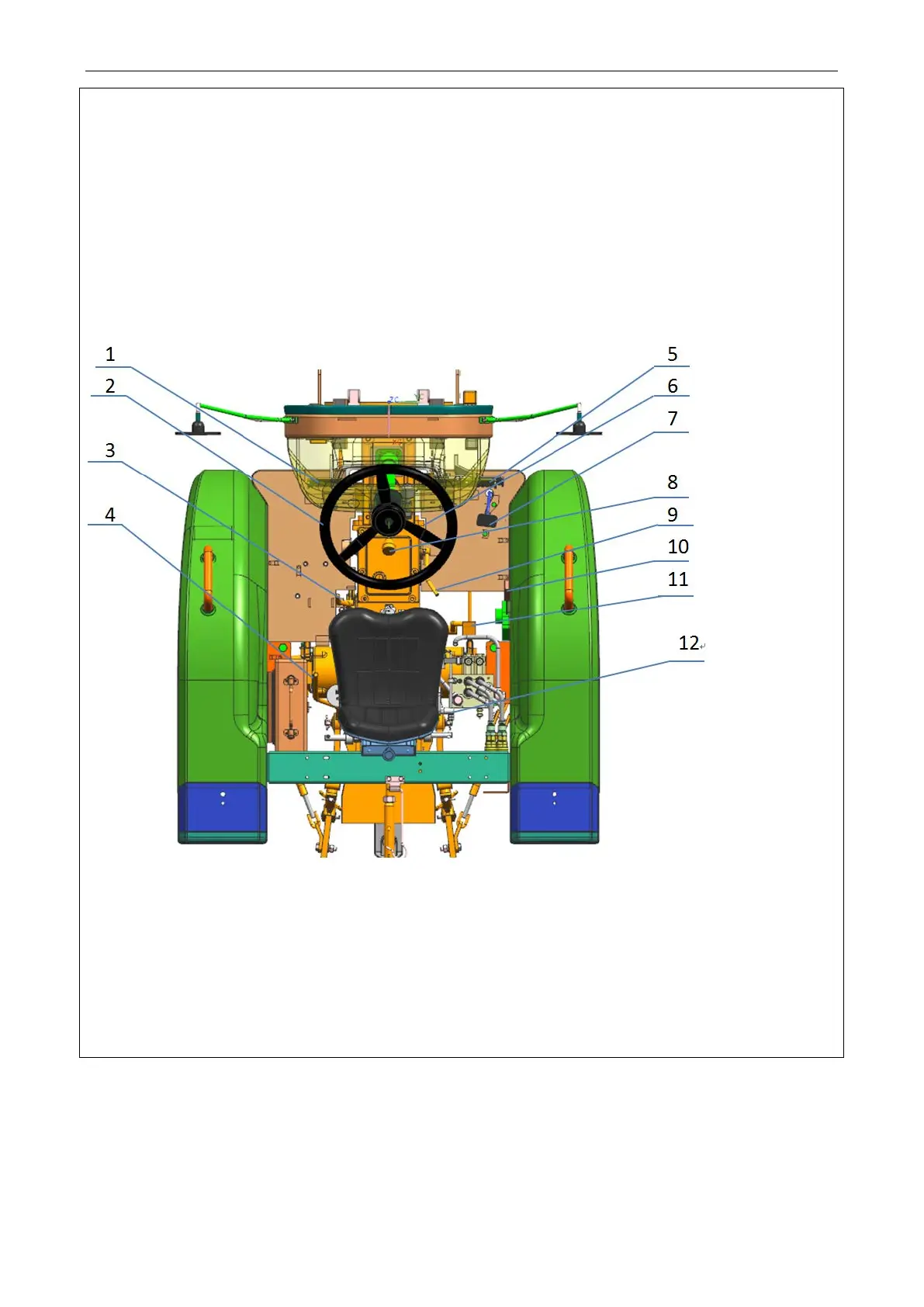

Fig.3-1 Tractor maneuvering mechanism
1.Clutch Pedal 2. Steering wheel 3.Front drive axle joystick 4. Power takeoff gear shift lever 5.Brake
pedal 6. Parking brake lever 7. Foot accelerator pedal 8. Main gear lever 9. Auxiliary gear lever 10. Manual
accelerator joystick 11. Differential lock joystick 12. Distributor joystick
