Maintenance Instruction
5.12 Fuel filter maintenance
Fuel filter is located on the left front side of engine.Paper
filter element of filter is not allowed to clean.Replace the
filter element every 200h.For detail maintenance, please
follow the manufacturer’s instruction.

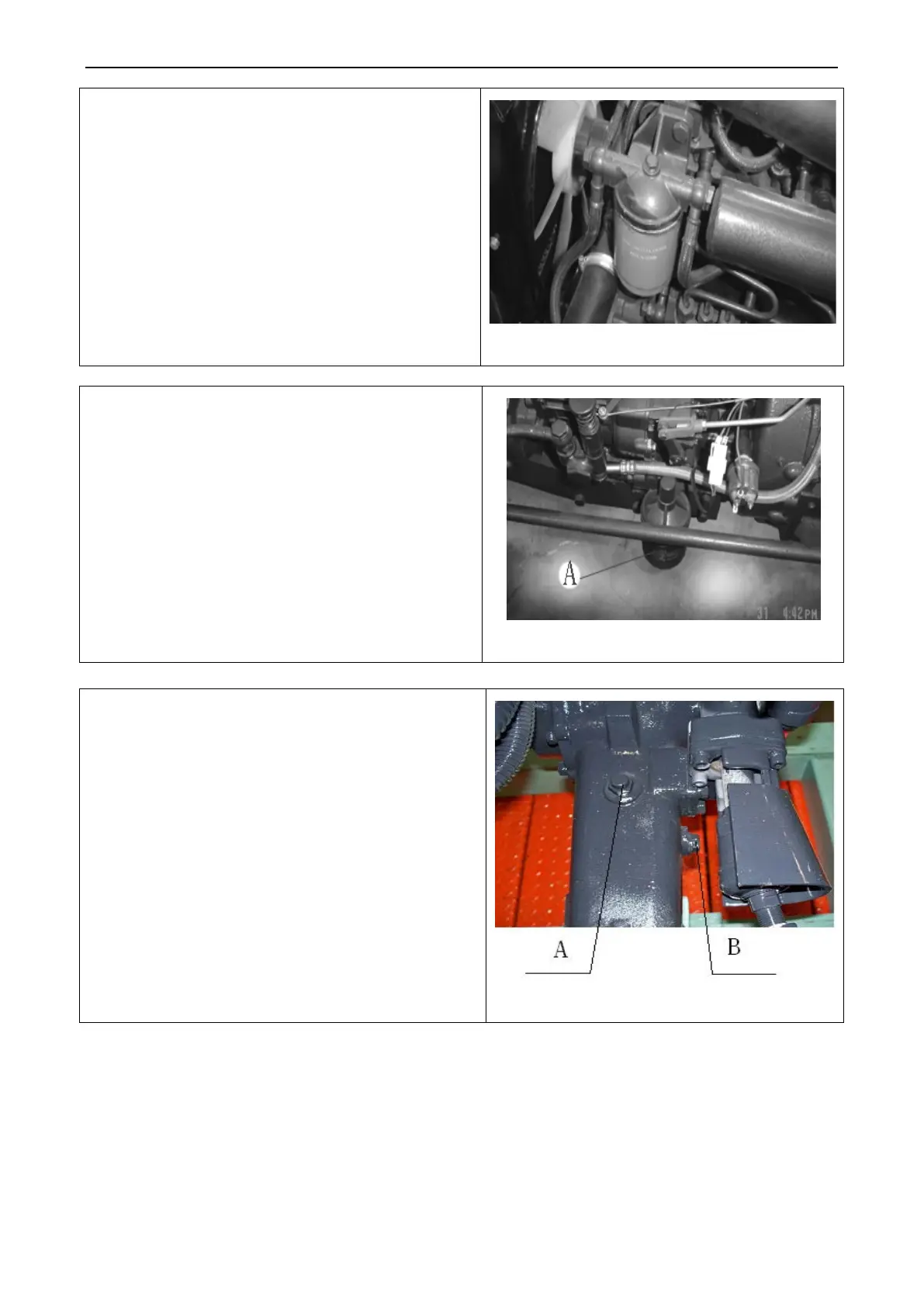

Fig.5-21Fuel filter maintenance
5.13 Oil filter maintenance
Oil filter A is located at the left-
Rep
lace it every 200h according to technical
requirement.Please entirely replace the oil filter. Secure it
during installing.For detail maintenance, please follow the
manufacturer’s instruction.
Fig.5-22 Oil filter maintenance
5.14 Oil level inspection of front drive axle
When checking for oil level in the front drive housing,
please remove the dipstick “A” to ensure the oil lever is
within scale range. If not, fill oil.When changing oil, screw
out the drain plugs at main drive and final drives at the left
and right to drain the used oil. Tighten the plug again. The
oil should be filled from “A”. After a while, oil
overflowing from B shows that the oil is filled up.
Fig.5-23 Oil level inspection of front drive
