Operation Instruction
Dimmer switch
Position “2”: high beams light up; Position “0”: low beams light up; Position “1”: standby.

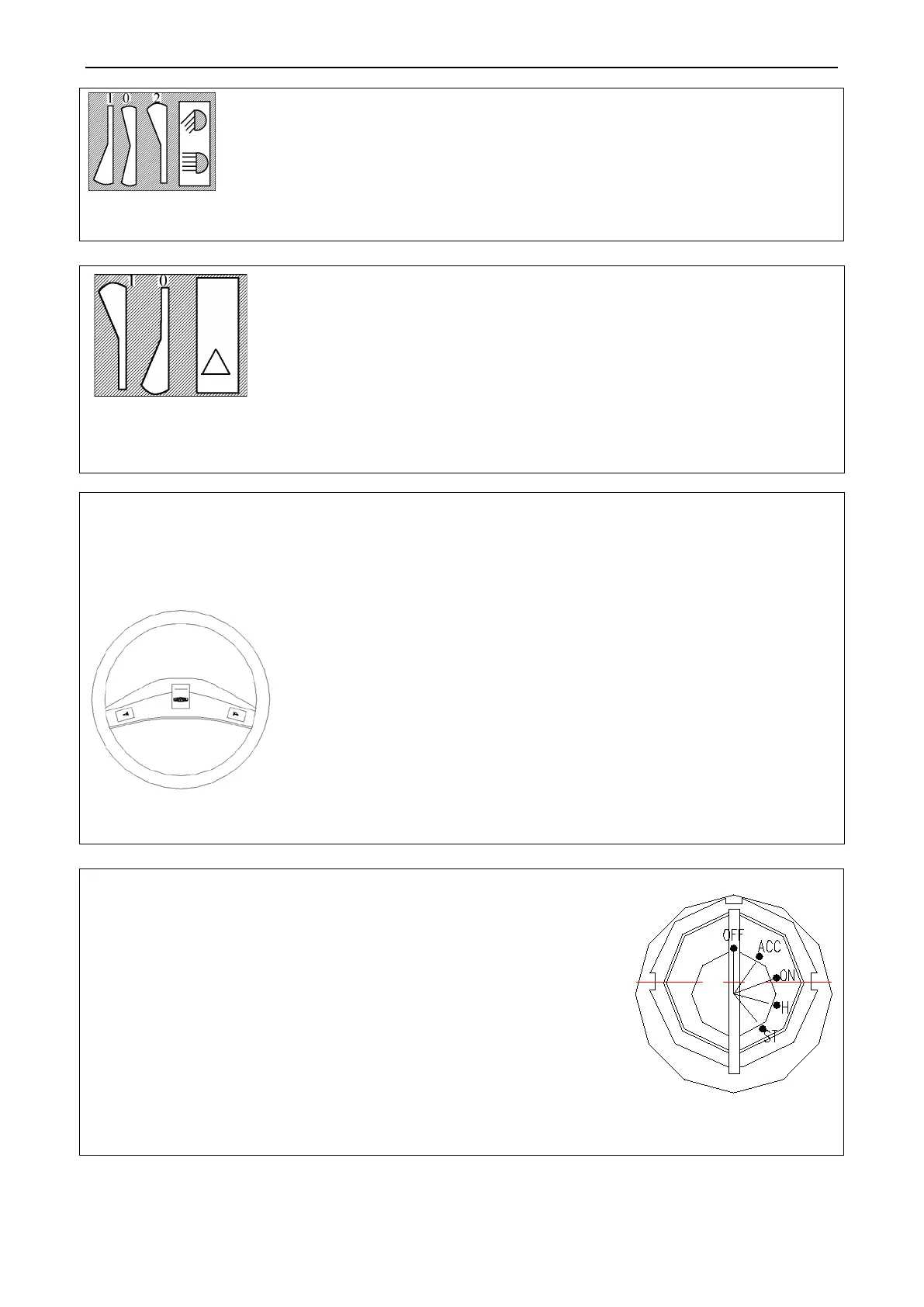

Fig.3-7 Dimmer switch
Hazard warning switch
Position “1”: turn signal lamps in front and rear and at left and right, left and right turn
signal indicator lamps on the instrument and indicator lamp on the hazard warning
switch all light up. When the tractor is parking on a highroad due to faults or other
causes and it is necessary to warn vehicles and passers-
by in front and behind via
activating this function in order to avoid accidents.
Fig.3-8 Hazard warning switch
Horn switch
Horn switch is located at the center of steering wheel. The horn switch could be turned on by pressing it, as shown
in following picture.
Fig.3-9 Horn switch
Ignition lock
Clockwise rotate the preheat start knob to ACC to turn on the auxiliary
electrical appliance. Clockwise rotate it to ON to turn on the control circuit.
Clockwise rotate it to H to turn on the preheating device.
rotate it to ST to start engine. After engine is started, immediately loosen it, the
key will automatically return to ON. The time of key staying at ST should not
more than5s to avoid engine burnout.
Fig.3-10 Ignition lock
3.3 Engine start
20
