L-STAT User Manual 21 LOYTEC
Version 1.0 LOYTEC electronics GmbH
3.3 Modbus Register Usage for Value Display

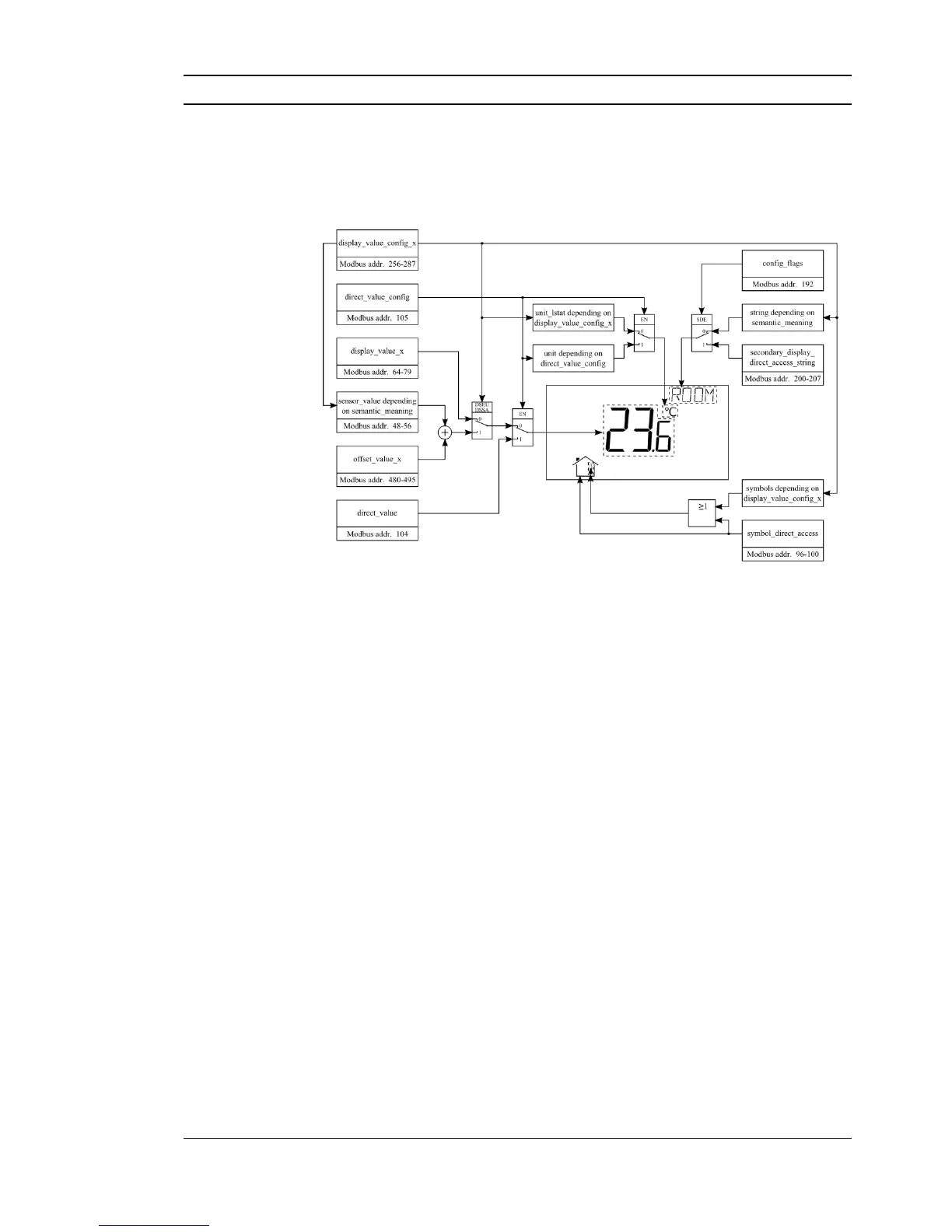

The following Figure 6 shows, which Modbus registers have influence on a displayed value,
unit, text on the secondary display or symbols. Depending on settings in configuration
registers different combinations are possible to achieve the desired result.
Figure 6: Modbus Register Usage for Value Display
