L-STAT User Manual 32 LOYTEC
Version 1.0 LOYTEC electronics GmbH
Register Name
Register
Address
Bit Position
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
occupancy_sensor_
config
184
0x00B8
EN
[1]
R
[0]
R
[0]
R
[0]
R
[0]
R
[0]
R
[0]
R
[0]
occupancy_timeout
[0x0A]
With this register the function of occupancy sensor is enabled and controlled.
 Applies only to LSTAT-801-Gx-Lx and LSTAT-802-Gx-Lx.
occupancy_timeout:
defines a timeout in seconds when the state of the occupancy flag
of the present state and short pressed register at address 0 and 1
will be cleared again after motion was detected.
Please see Figure 7 for further information on operation.
EN:
occupancy sensor enabled, only if enabled the occupancy flag of
the present state and short pressed register at address 0 and 1,
Table 7 on Page 22 will be set.

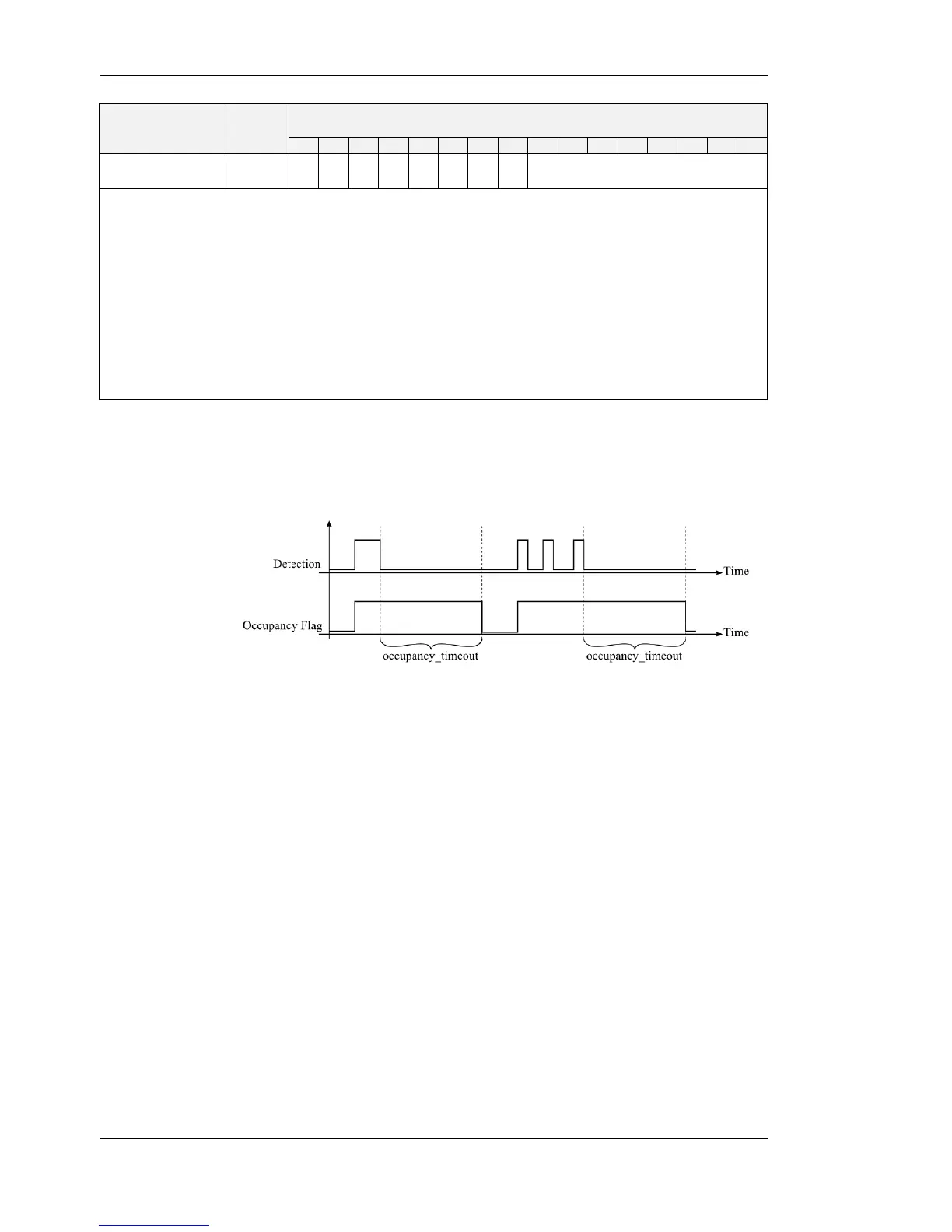

Table 21: Occupancy Sensor Configuration
As depicted in Figure 7 the occupancy flag is set when motion is detected and will be
cleared again after the occupancy_timeout has exceeded as defined at the
occupancy_sensor_configuration register.
Figure 7: Occupancy Sensor Operation
