Chapter 8 Modbus Communication
8-8

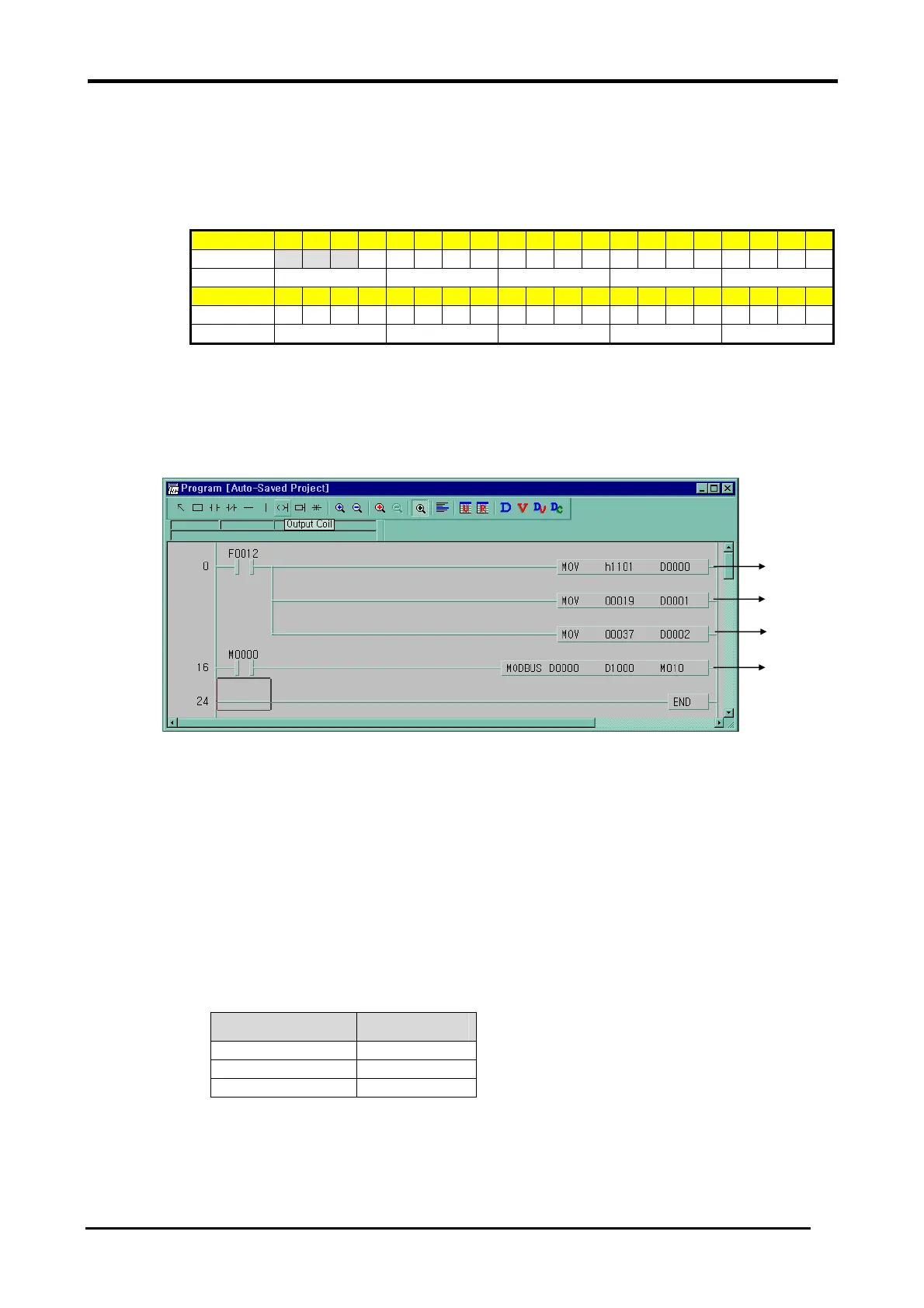

Example Program 1
The master reads status of the Coil 00020 ~ 00056 of the slave station no. 17. The Coil of the slave
station is supposed to be as follows and the data that are read is saved in data register D1000.
Coil
59 58 57 56 55
54
53
52
51
50
49
48
47
46 45 44 43 42
41
40
Status X X X 1 1011000011 1 0 1 011
Hex 1 B 0 E B
Hex
39 38 37 36 35
34
33
32
31
30
29
28
27
26 25 24 23 22
21
20
Status 0 0 1 0 0110101111 0 0 1 101
Hex 2 6 B C D
The status of Coil 57, 58, 59 is redundancy.
Data is sent starting from the low bit by byte unit. If the deficient bit of a byte is filled with 0.
An example of sending the above data is as the following example 1.
Example 1) CD B2 0E 1B
It designates slave station and function code (No. of station : h11(17) , function code : h01)
Address setting
- Address 0 at MODBUS protocol means address ‘1’ actually .So if you want to designate
address ‘20’, write address ‘19’
Reading number setting (Reading number is 37 from 20 to 56.)
This is MODBUS Communication instruction.
채널 1 통해서 D000 ~ D002 까지 설정된 형식으로 통신하고 받는 데이터는 D1000 부터 저장
하는 정입니다.
- Data is sent starting from the low bit by byte unit. If the deficient bit of a byte is filled with 0. An
example of sending the above data is as follows.
Example 1) CD 6B B2 0E 1B
Device Stored data
D1000 h CD 6B
D1001 h B2 CE
D1002 h 00 1B
