Appendix 3 Control and Monitoring Specific Inverter Data
Appendix 3-5
3) In stop condition, D4470 is “h0000” (see “List of PLC option card Special D Registers for Inverter
Operation Status Monitoring” above).
4) Now, press the “FWAD” key on the digital loader of the inverter to a give forward operation reference.
During forward acceleration, D4470 is “h0021” (see “List of PLC option card Special D Registers for
Inverter Operation Status Monitoring” above).
5) While in constant speed in forward operation, D4470 is “h0031” (see “List of PLC option card Special D
Registers for Inverter Operation Status Monitoring” above).
6) On the digital loader of the inverter, change DRV01 (Cmd Frequency) into “5.00 Hz” for forward
deceleration. In this mode, D4470 is “h0041” (see “List of PLC option card Special D Registers for Inverter
Operation Status Monitoring” above).

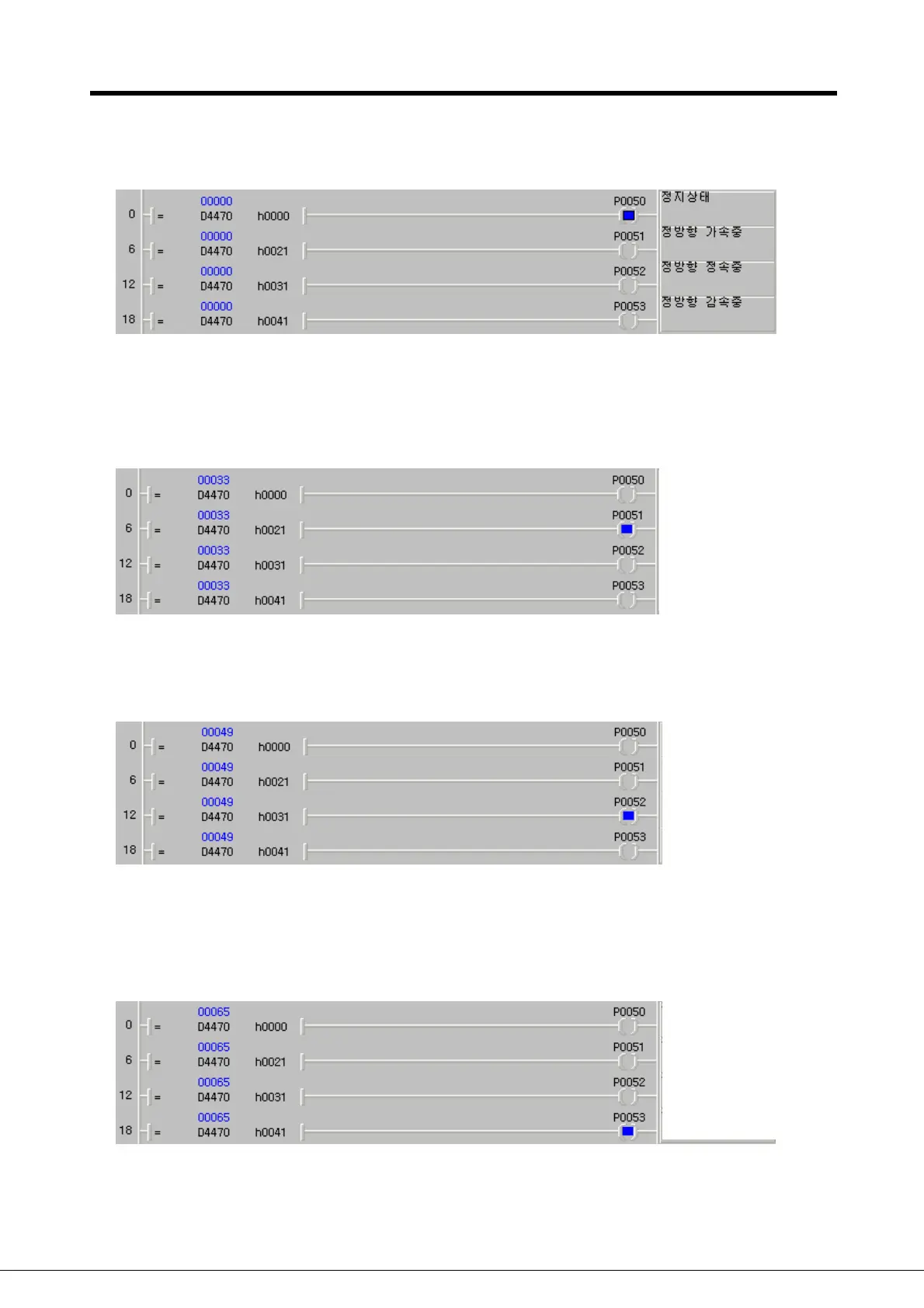

Stopped
Forward Accel.
Forward Constant
Speed.
Forward Decel.
Stopped
Forward Accel.
Forward Constant
Speed.
Forward Decel.
Stopped
Forward Accel.
Forward Constant
Speed.
Forward Decel.
Stopped
Forward Accel.
Forward Constant
Speed.
Forward Decel.
