SERVICE MANUAL(COMPONENTS)

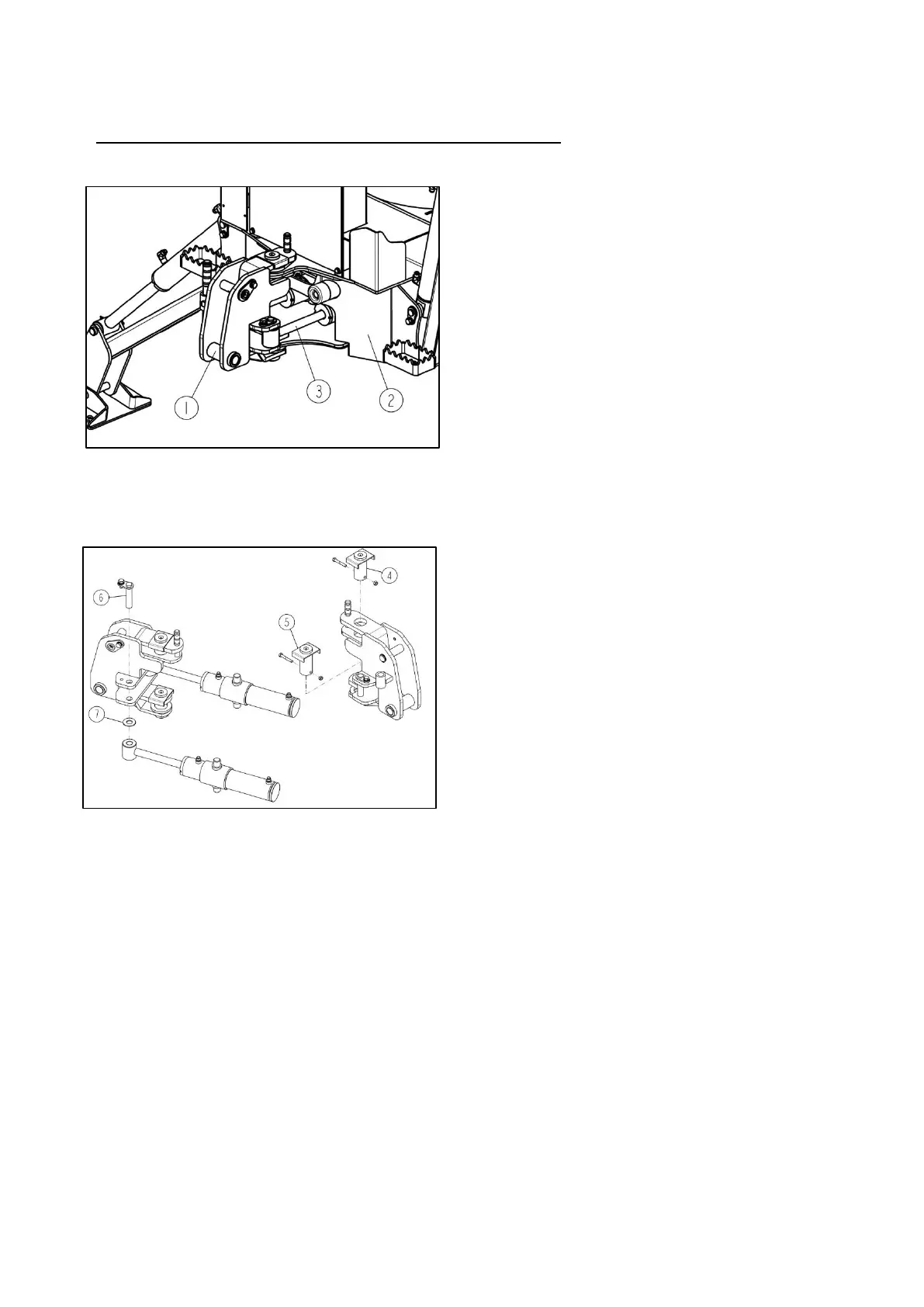

Swing frame
1. Remove the pin (6) and remove the swing
cylinder rod (3).
2. Remove the pins (4, 5)
3. Remove the swing frame (1) from main frame (2).
(1) Swing frame
(2) Main frame
(3) Swing cylinder rod
(4) Pin (Ø45x100L)
(5) Pin (Ø45x100L)
(6) Pin (Ø20x105L)
(7) Washer
