LS tractor LB1300 - SERVICE MANUAL(CYLINDERS); Stabilizer cylinder LH; RH; Swing cylinder

75
SERVICE MANUAL(COMPONENTS)

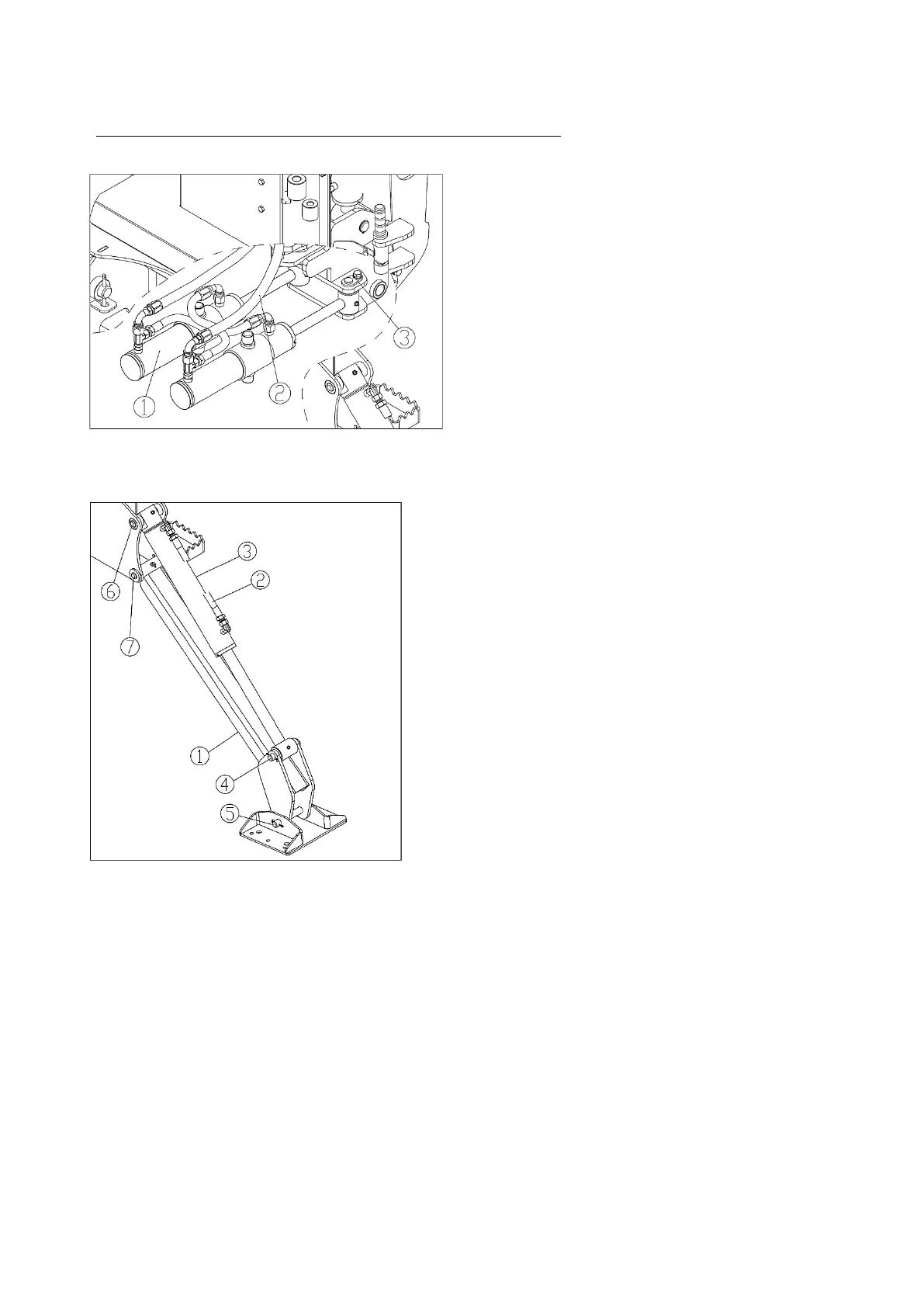

Swing cylinder
1. Disconnect the hydraulic hose (2) and remove
the pin (3).
2. Remove the swing cylinder (1) from main frame.
(1) Swing cylinder
(2) Hydraulic hose
(3) Pin (Ø20x105L)
Stabilizers and stabilizer cylinder
1. Disconnect the hydraulic hose (2) and remove the
Pins (4,5,6,7)
2. Remove the stabilizer cylinder (3) and remove the
Stabilizer (1).
(1) Stabilizer
(2) Hydraulic hose
(3) Stabilizer cylinder
(4) Pin (Ø20)
(5) Pin (Ø20)
(6) Pin (Ø20x131L)
(7) Pin (Ø20x143L)
