LS tractor LB1300 - SERVICE MANUAL(CYLINDERS); Dipper stick cylinder

76
SERVICE MANUAL(CYLINDERS)

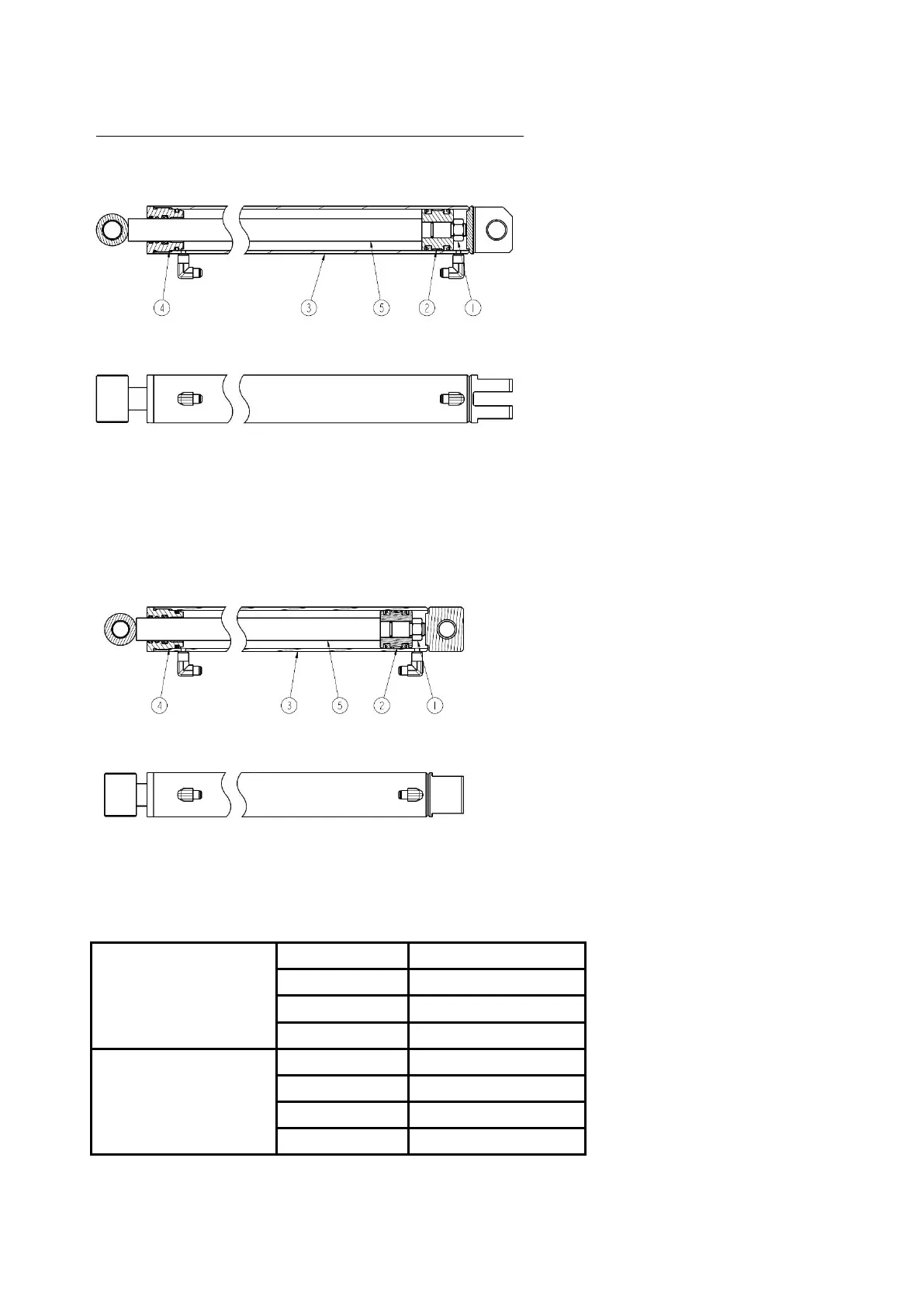

Boom cylinder
(1) Nut
(2) Piston
(3) Cylinder tube
(4) Cylinder head
(5) Piston rod
Boom cylinder consists of a nut (1), piston
(2), cylinder tube (3), cylinder head (4),
piston rod (5) and other parts as shown in
the figure above. They are single-rod
double acting cylinder in which the
reciprocating motion of the piston is
controlled by hyd.
Bucket cylinder
(1) Nut
(2) Piston
(3) Cylinder tube
(4) Cylinder head
(5) Piston rod
Bucket cylinder consists of a nut (1),
piston (2), cylinder tube (3), cylinder head
(4), piston rod (5) and other parts as
shown in the figure above. They are
single-rod double acting cylinder in which
the reciprocating motion of the piston is
controlled by hyd.
Cylinder specifications
Boom cylinder
Tube I.D.
65 mm (2.6")
Rod O.D.
35 mm (1.4")
Closed length
605 mm (23.8")
Stroke
375 mm (14.8")
Bucket cylinder
Tube I.D.
60 mm (2.4")
Rod O.D.
35 mm (1.4")
Closed length
514 mm (20.2")
Stroke
310 mm (12.2")
