77
SERVICE MANUAL(CYLINDERS)

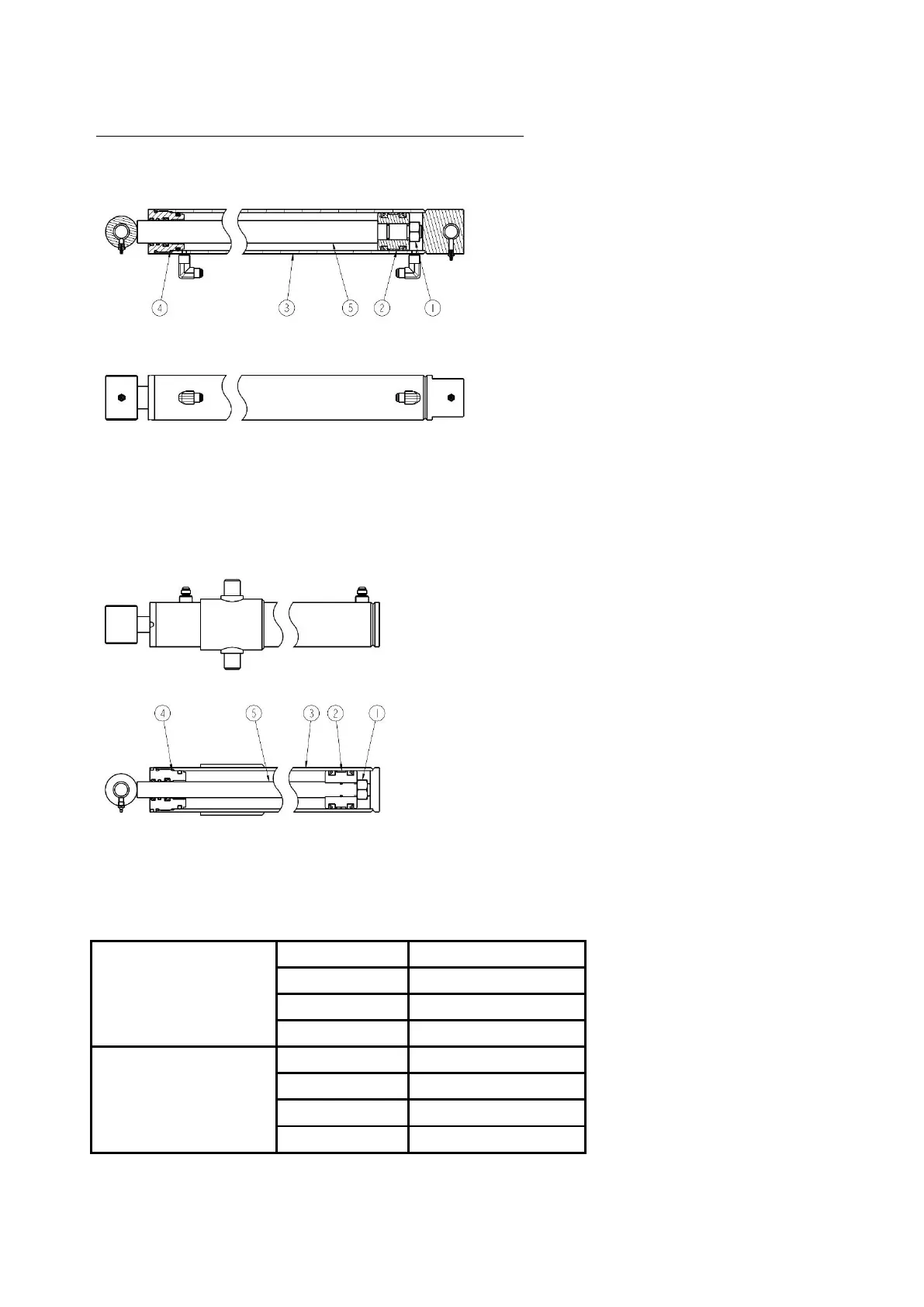

Stabilizer cylinder LH / RH
(1) Nut
(2) Piston
(3) Cylinder tube
(4) Cylinder head
(5) Piston rod
Stabilizer cylinder consists of a nut (1),
piston (2), cylinder tube (3), cylinder head
(4), piston rod (5) and other parts as
shown in the figure above. They are
single-rod double acting cylinder in which
the reciprocating motion of the piston is
controlled by hyd.
Swing cylinder
(1) Nut
(2) Piston
(3) Cylinder tube
(4) Cylinder head
(5) Piston rod
Swing cylinder consists of a nut (1), piston
(2), cylinder tube (3), cylinder head (4),
piston rod (5) and other parts as shown in
the figure above. They are single-rod
double acting cylinder in which the
reciprocating motion of the piston is
controlled by hyd.
Cylinder specifications
Stabilizer cylinder
Tube I.D.
60 mm (2.4")
Rod O.D.
35 mm (1.4")
Closed length
520 mm (20.5")
Stroke
305 mm (12.0")
Swing cylinder
Tube I.D.
60 mm (2.4")
Rod O.D.
25 mm (1.0")
Closed length
175 mm (6.9")
Stroke
220 mm (8.7")
