SERVICE MANUAL(VALVE)

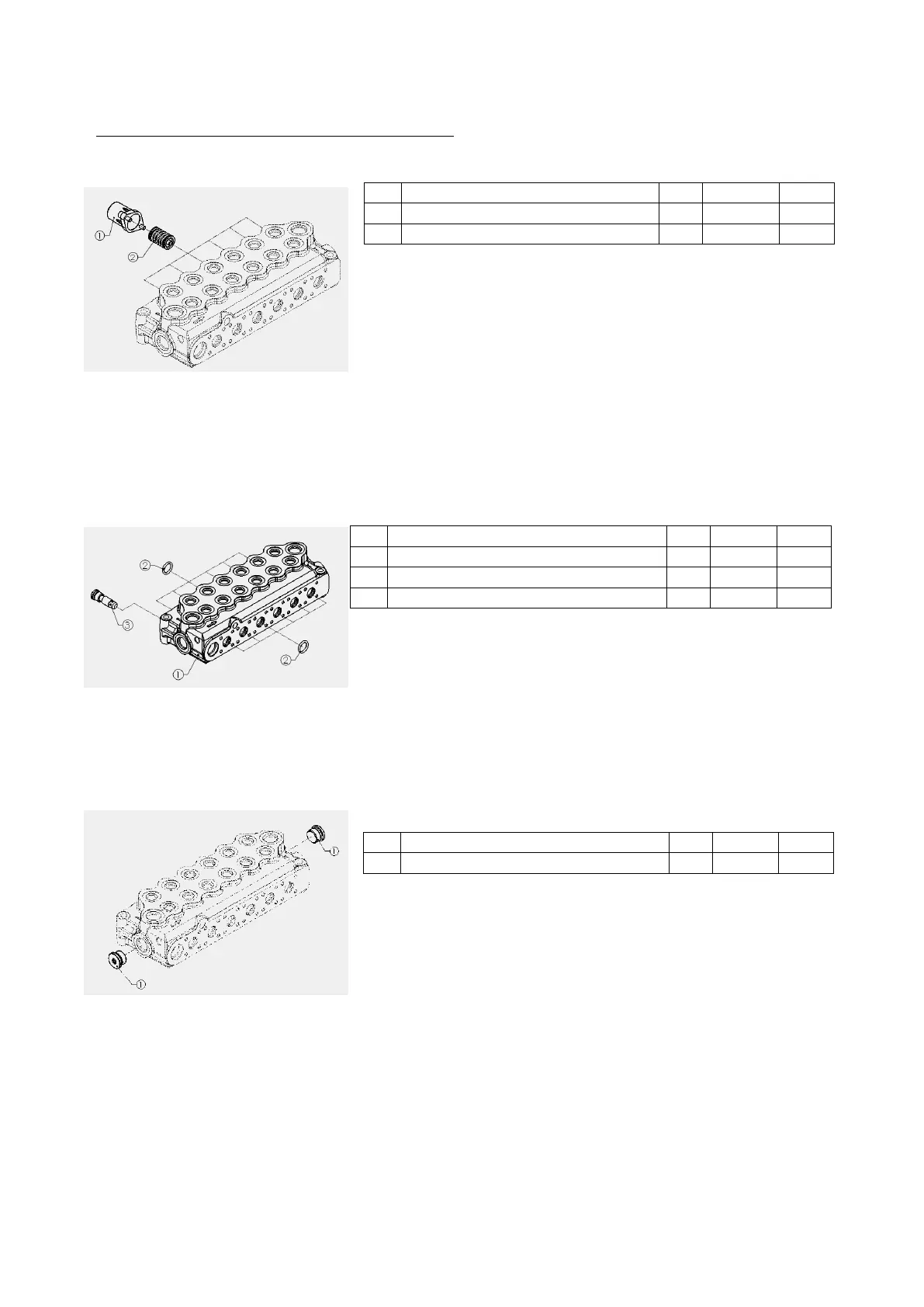

1. Control kit
1) Assemble the spring kit (2) at the spool with torque. (9.8N.m)
2) Assemble the end cap (1) at spool port with torque. (9.8N.m)
2. Check valve
1) Insert the O-ring (2) to spool hole in body (1).
2) Assemble the component kit VR5 (5) with torque 24.
3. Plug
1) Assemble this component metal plug (1) at corresponding
port on the body.
No
Description
Q'ty
Wrench
Torque
1
End cap kit S5 (ZAMA)
6
4
9.8
2
Kit vers .08/S5-MD
6
5
9.8
No
Description
Q'ty
Wrench
Torque
1
Corpo SD5/6-P/SAE
1
2
O-ring 15.88 x 2.62 NBR 70 SH (Parker 5-617)
12
3
Kit VR5
1
6
24
No
Description
Q'ty
Wrench
Torque
1
Plug SAE8
6
4
9.8
