87

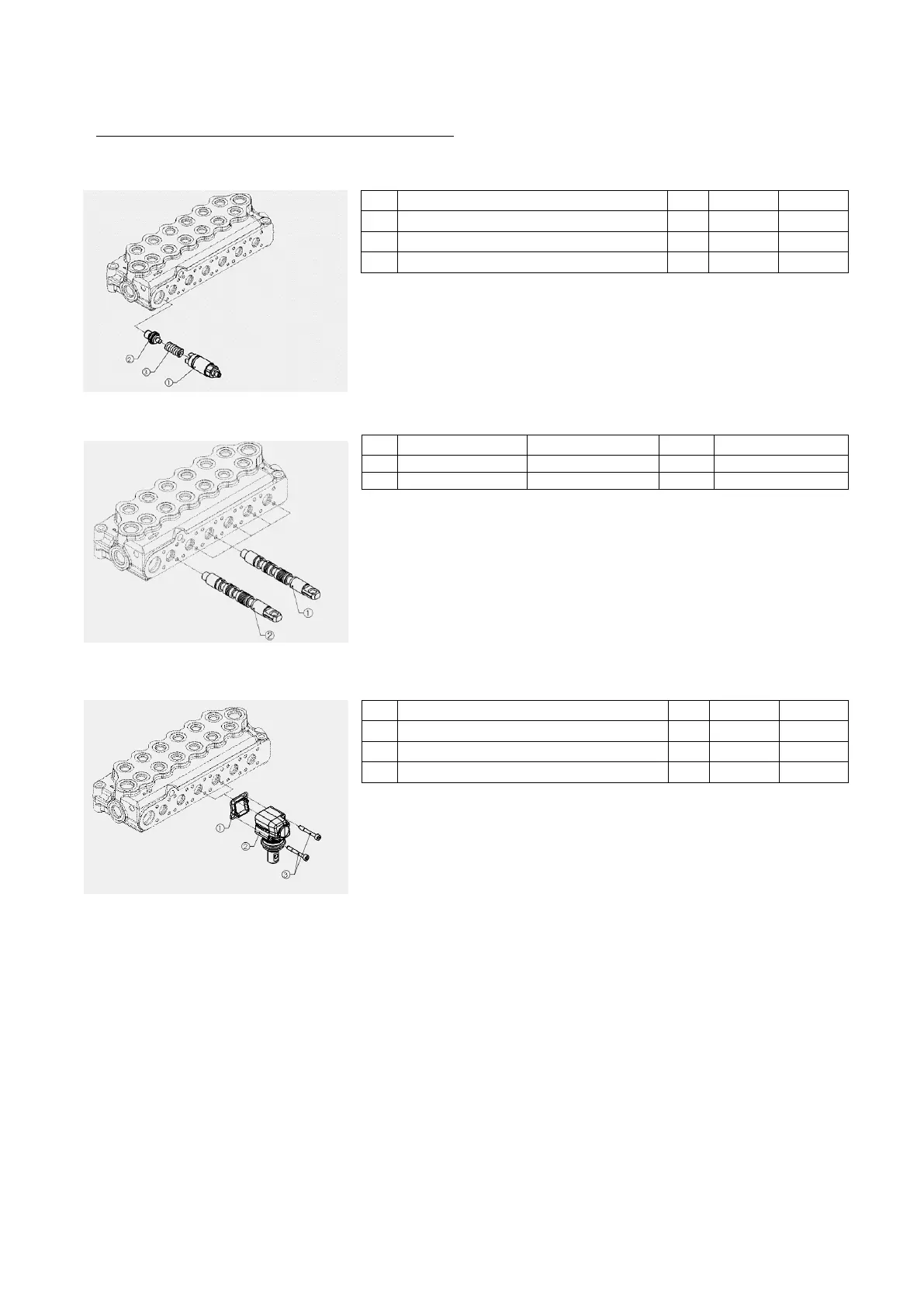

SERVICE MANUAL(VALVE)
4. Main relief valve
NO
Description
Q'ty
Wrench
Torque
1
Spring body VMD5/G
1
19
42
2
Poppet kit VMPJ/S5
1
3
Spring N.3 VMPK-VMPJ/S5
1
1) Insert the component poppet kit VMP in the relief valve port
on body.
2) After assembling (2), insert the component spring (3).
3) Finally, assemble the component spring body (1) with torque 42Nm.
5. Spool
NO
LS PART NO.
Description
Q'ty
Remarks
1
Spool 1CEX/SD5
5
2
40453121
Spool 1CSVR/SD5
1
With check function
1) Insert component spool 1 CEX (1) at spool hole on body.
6. Lever kit
NO
Description
Q'ty
Wrench
Torque
1
Guarnizione Kit LEVA LSG/S5
2
2
Lever kit L/S5
2
3
Screw M5x35-ALLOY 12.9-<KN202/KOFAS>
4
4
9.8
1) Insert the component guarnizione leva (1) on the lever kit (2).
2) Assemble the components (1, 2) with screw (3) with torque 9.8Nm.
