88
SERVICE MANUAL(VALVE)

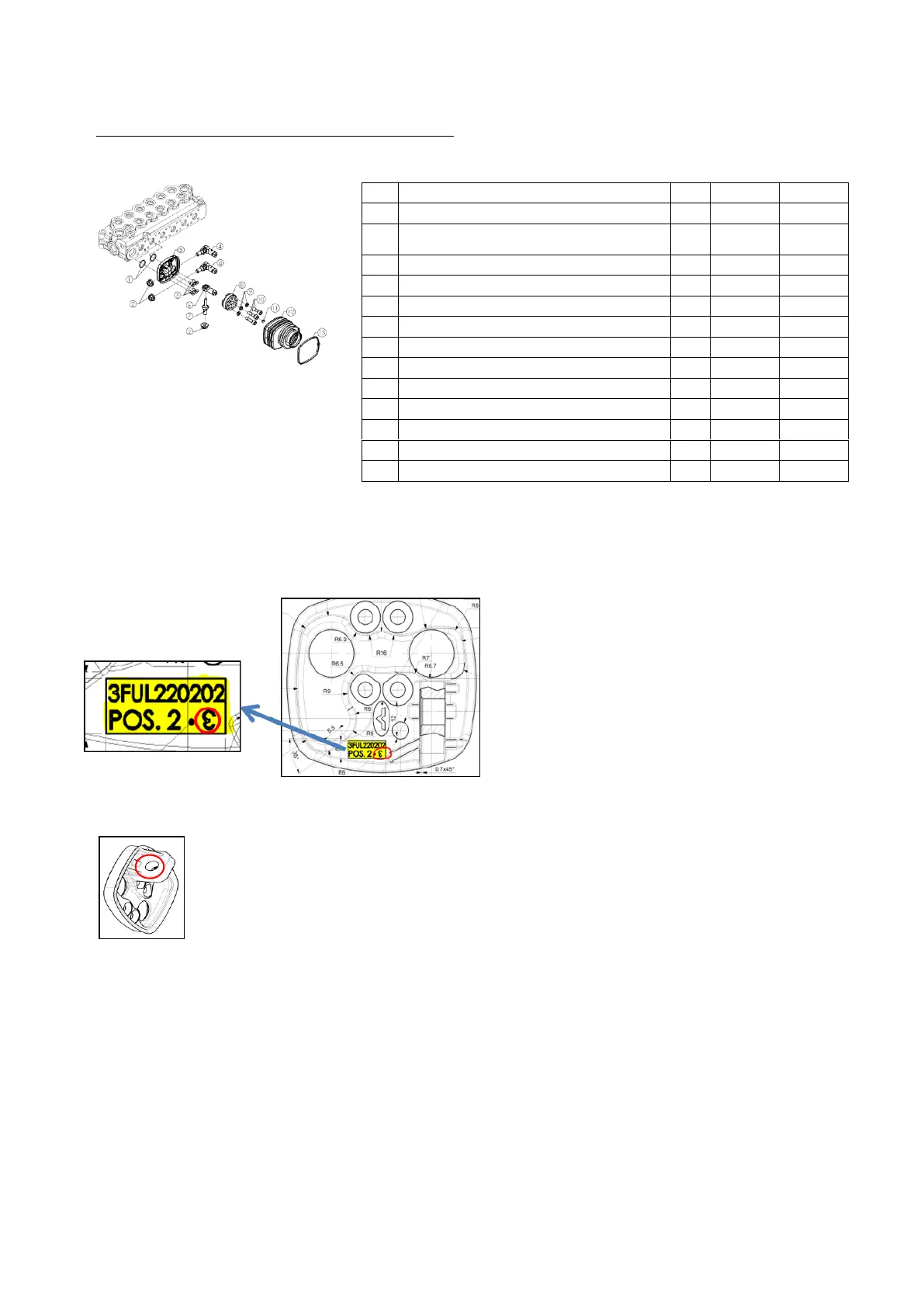

7. LCN kit
No.
Description
Q'ty
Wrench
Torque
1
O-ring 15.60X1.78 NBR 70 SH
4
2
Dado flange. tribloc
M8 Zn/ bianco (DS008)
6
13
24
3
Fulcro LCN /LCA2-3/SD5
2
4
Articolazione M6-LCN/S5
4
13
-
5
Bolt tsei uni -5933/M5x14-10.9
8
3
6.6
6
Testa di biella tuthill M6 Ref. SPF4157*
2
7
Perno LCN-LCA/S5
2
13
-
8
Porta articolazione LCB5(Zama)
2
9
Rosetta A6 DIN-7980 Zn/Bianca/ Deidrog.
6
10
Screw tcei UNI-5931 /M6x25-12.9 Nichelata
6
5
15
11
Tappo 4° foro cloche S5 (Ref.P0250)
2
12
Soffietto LCB5 (PR2210)
2
13
Fascetta TY26MX-3,6x300
2
1) Insert the component o- ring (1) at corresponding hole on the body.
2) Insert the component fulcro LCN (3) at corresponding hole on the body.
Warning!
LCN3 : Verify the (3) surface of component as below picture. (3) is right direction you're looking
3) Assemble the components bolt (5) with torque 6.6 Nm.
4) Insert the components articolazione (4) into the hole on spool & component (3)
It must assemble in the same direction that the spool eye and component (3)
5) After then, assemble the component dado (2) with torque 24Nm.
6) Assemble the other spool eye with component (7) and (2) with torque 24Nm.
And Insert the component (7) to the component (6).
7) Assemble the component (8). When it assembled, please caution about shape of component (4).
8) Assemble the component (9) and (10) with torque 15Nm. It assembled on thread of component (4).
9) Assemble the component (11) on the hole of (8).
10) Assemble the component (12, 13).
