LSIS H100 Troubleshooting Manual

1. Basic Checklist
10
Basic Operations 1.2
 Key Functions

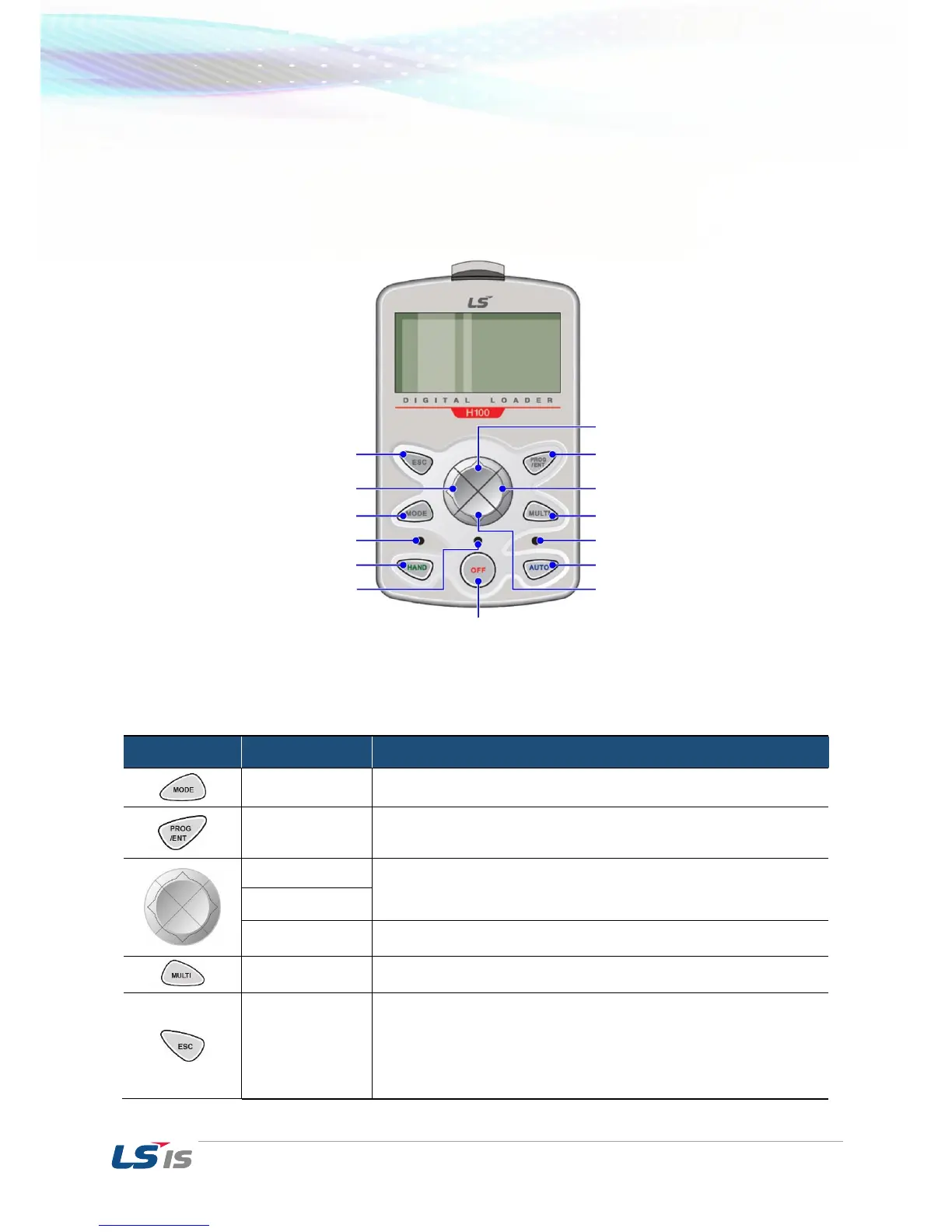

Refer to the following illustration to identify part names and functions
 Operation Keys
The following table lists the names and functions of the keypad’s operation keys.
Key
Key Name
Function Description
[MODE] Key
Used to switch between modes.
[PROG / Ent] Key
Used to select, confirm, or save a parameter value.
[Up] key
Switch between codes or increase or decrease parameter values.
[Down] key
[Left] key
[Right] key
Switch between codes or increase or decrease parameter values.
[MULTI] Key
Used to perform special functions, such as user code registration.
[ESC] Key
Used to cancel an input during parameter setup.
Pressing the [ESC] key before pressing the [PROG / ENT] key reverts the
parameter value to the previously set value.
Pressing the [ESC] key while editing the codes in any function group
makes the keypad display the first code of the function group.
Pressing the [ESC] key while moving through the modes makes the
1. ESC Key
2. LEFT Key
3. MODE Key
4. HAND mode LED indicator
5. HAND Key
6. OFF mode LED indicator
7. OFF Key
8. DOWN Key
9. AUTO Key
10. AUTO mode LED indicator
11. MULTI Key
12. RIGHT Key
13. PROG / Ent Key
14. UP Key

LSIS H100 Specifications

General

Brand	LSIS
Model	H100
Category	Inverter
Language	English
