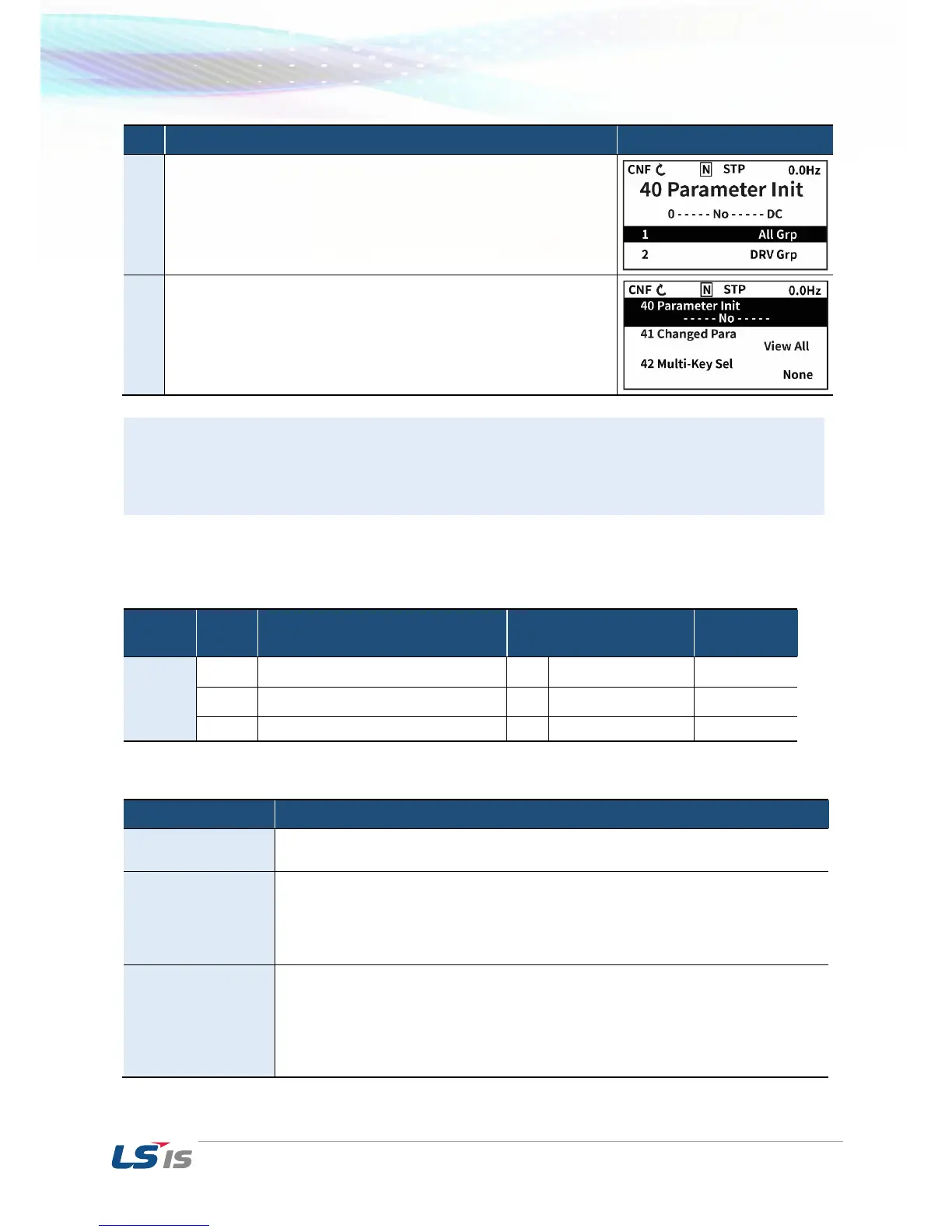

LSIS H100 Troubleshooting Manual

1. Basic Checklist
17
Step
Instruction
Keypad Display
4
In the list of options, select ‘1(All Grp),’ and then press the
[PROG/ENT] key to perform parameter initialization.
5
The parameter initialization option is displayed again when the
initialization is complete.
Note
Following parameter initialization, all parameters are reset to factory default values. Ensure that
parameters are reconfigured before running the inverter again after an initialization.
Read and Write Parameters 1.3.3
This is the function of copying the parameter saved in the inverter to the keypad and copying the
parameter saved in the keypad to the inverter.
Group
Code
No.
Function Display
Setting Display
Unit
CNF
46
Parameter Read
1
YES
CNF
47
Parameter Write
1
YES
48
Parameter Save
1
YES
Read and Write Setting Details
Code
Description
CNF-46 Parameter
Read
Copies the parameter in the inverter to the keypad. The existing parameters
saved in the keypad are all deleted.
CNF-47 Parameter
Write
Copies the parameter saved in the keypad to the inverter. The existing
parameters in the inverter are all deleted. In case of an error during
parameter writing motion, the previously saved data can be directly
used. If there is no data saved in the keypad, a message reading “ EEP
Rom Empty “ is displayed.
CNF-48 Parameter
Save
Because the parameters set in communication are saved in the RAM area,
they are all gone
if the inverter power is turned Off/On. If you set parameters in
communication and select Yes in CNF-48 Parameter Save,
the set parameters remain unchanged even if the inverter power is turned
Off/On.
* Available on LCD keypad only.
