Chapter 7 Program Examples of Positioning
7 - 26
(2) XEC

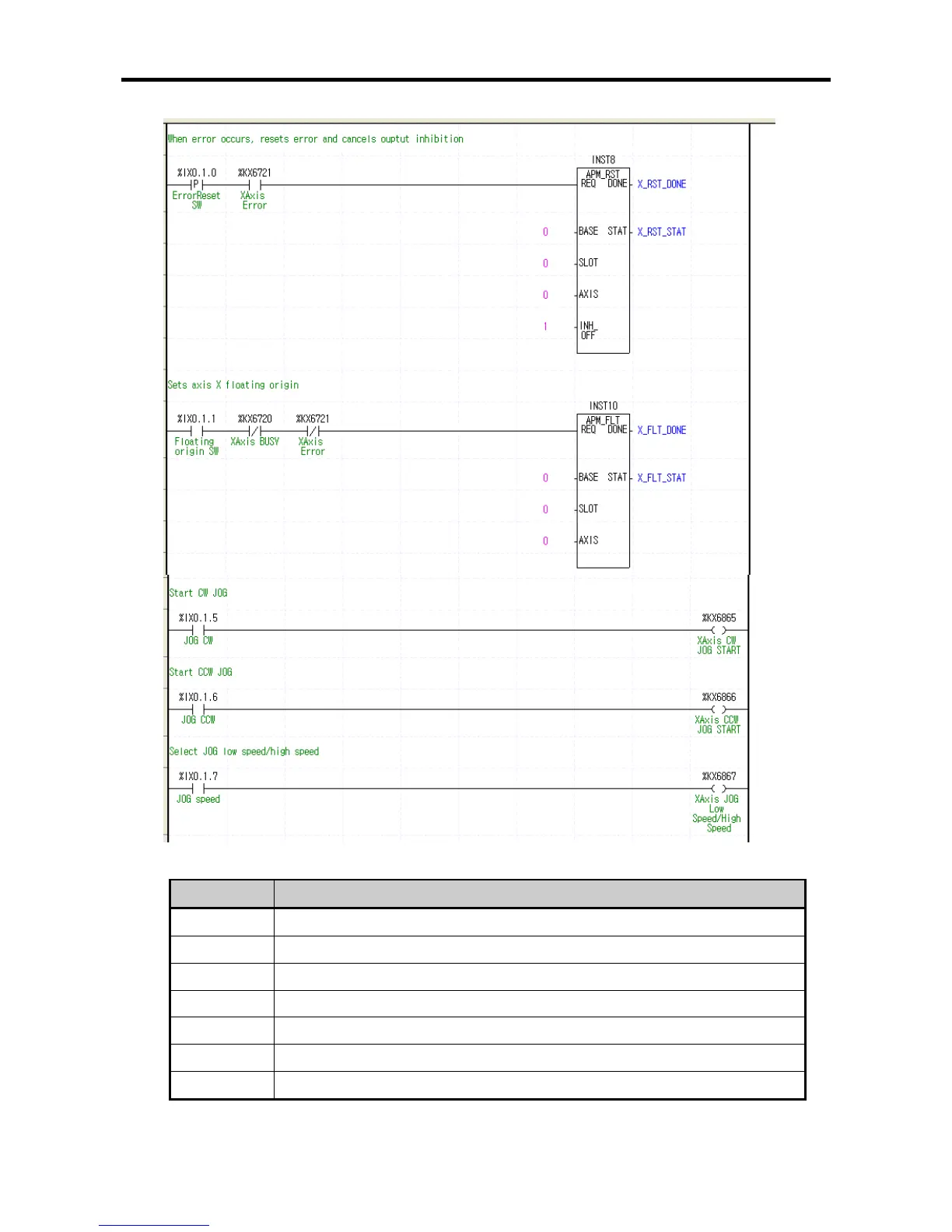

(a) Devices Used
Device Description
%IX0.1.0 Axis X error reset, output inhibition cancel switch
%IX0.1.1 axis X floating origin switch
%IX0.1.5 axis X jog normal direction start switch
%IX0.1.6 axis X jog reverse direction start switch
%IX0.1.7 Switch for low/high speed selection of axis X jog
%KX6880 Signal during axis X operation
%KX6881 Error signal of axis X
