LSIS XEC-DN60SU

Chapter 2 General Specification
2-7

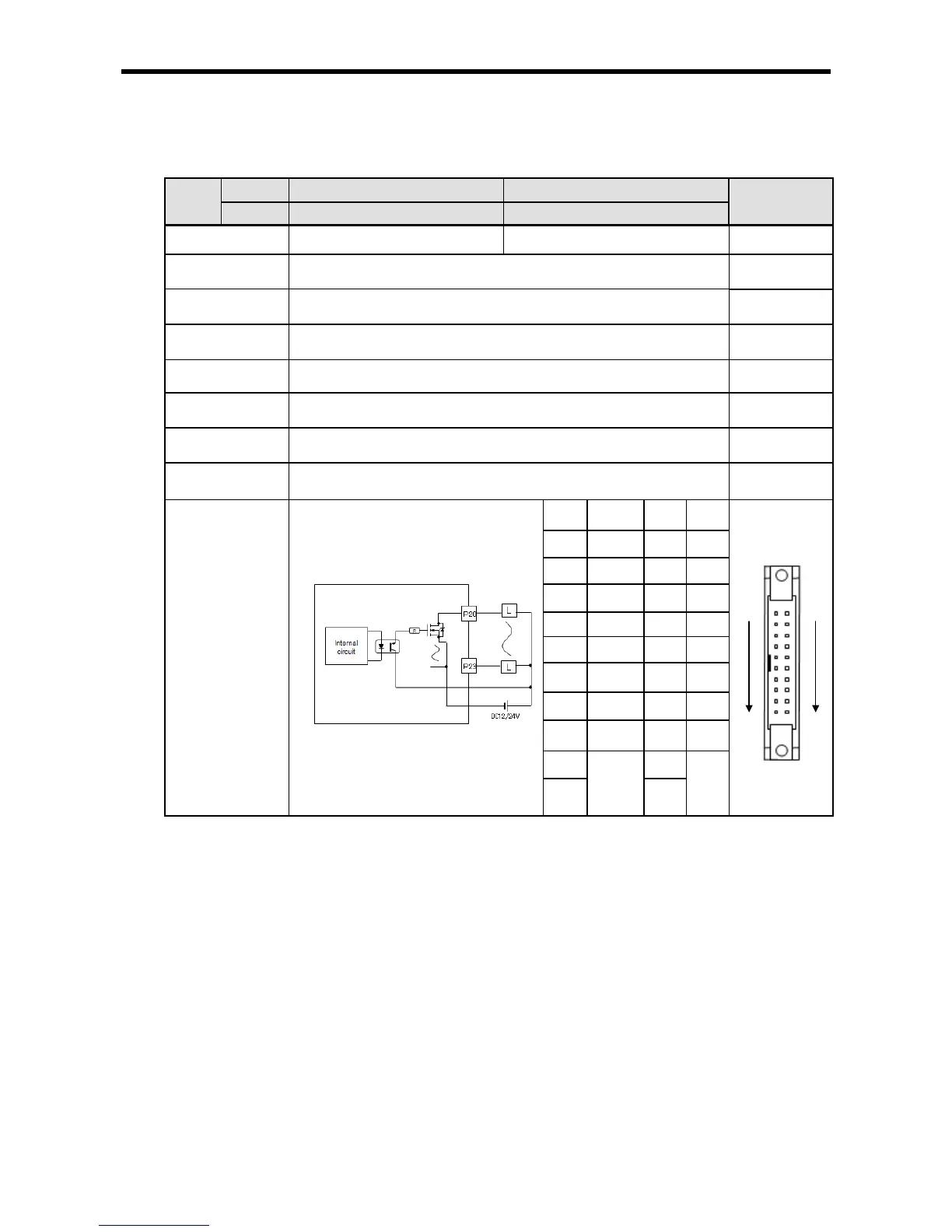

2.3.2 Output specification
(1) Standard type output contact point specification
Conta
ct no.
X axis P0020 P0022
Ref.
Y axis P0021 P0023
Signal name Pulse string output Direction output
Rated load
voltage
DC5~24V (DC4.75~26.4V)
Max. load
current
0.1A/1 point or below
Insulation
method
Photo-coupler insulation
Inrush current
1A/10 ㎳ or below
Voltage drop
when On
DC 0.3V or below
Leakage current
when Off
0.1 ㎃ or below
Response time
0.1 ㎳ or below (Rated load, resistor load)
Circuit
configuration
and connector
array
(standard type)
No. Contact No.
Cont
act
B10 P20 A10 P28
B09 P21 A09 P29
B08 P22 A08 P2A
B07 P23 A07 P2B
B06 P24 A06 P2C
B05 P25 A05 P2D
B04 P26 A04 P2E
B03 P27 A03 P2F
B02
12/24V
A02
CO
M
B01 A01
B10
B1
A10
A1
