With the air pressure removed, lubricant pressure in the primary tubing returns below 30bar and
excess lubricant is recycled back into the pump. Once grease pressure has dropped below
30bar, the re-loading process within the injectors begins.

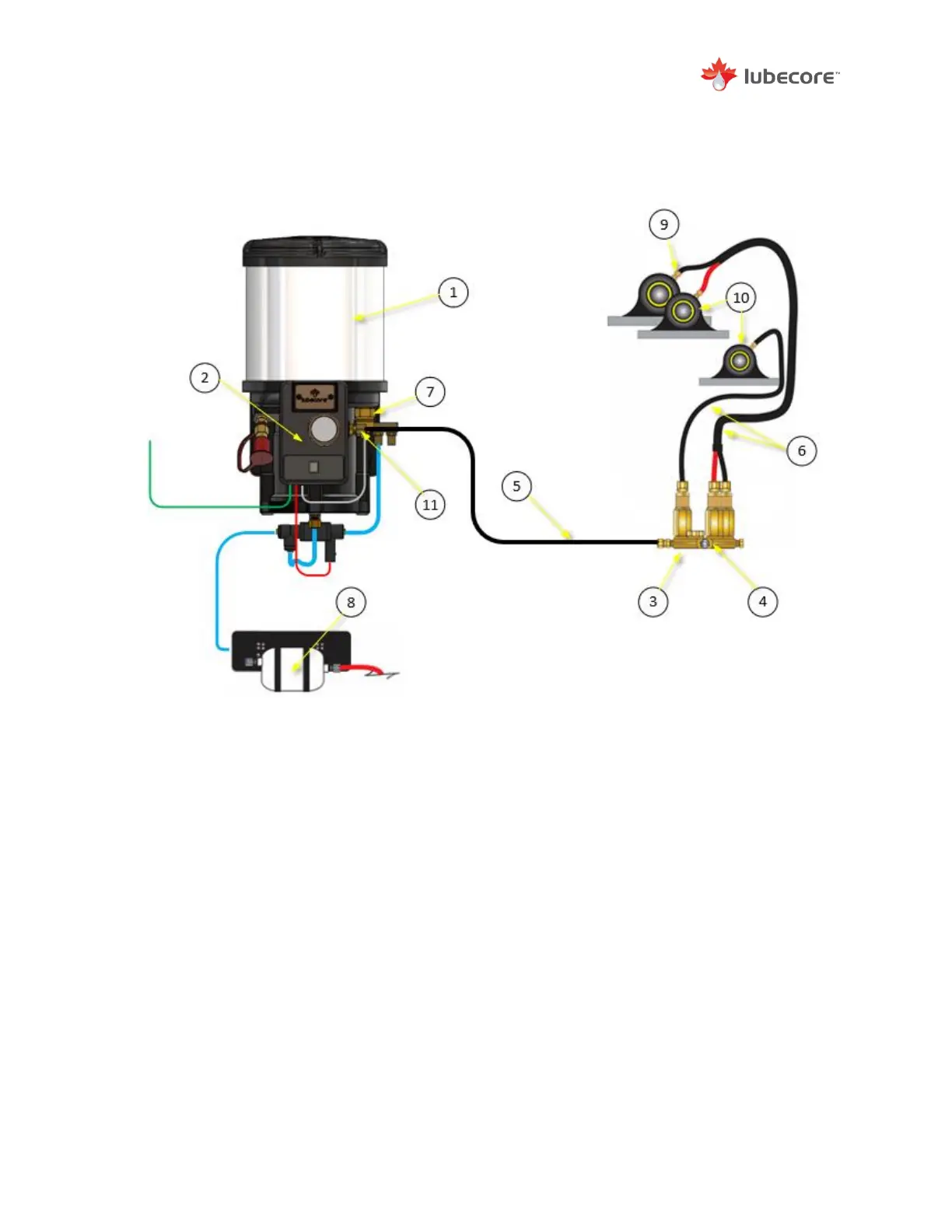

Figure 31 – Standard Lubecore Automated Lubrication System Layout for a Trailer with Pump
Mounted Timer
