Lucent Technologies LINEAGE 2000 ECS - Figure 3-2 B: Bay Dimensions and Clearances (List 1 Equipped with List 10 or List 11)

Lucent Technologies Lineage
®
2000 ECS Battery Plant J85500D-3
3 - 44 Engineering, Planning and Ordering Issue 5 January 1999

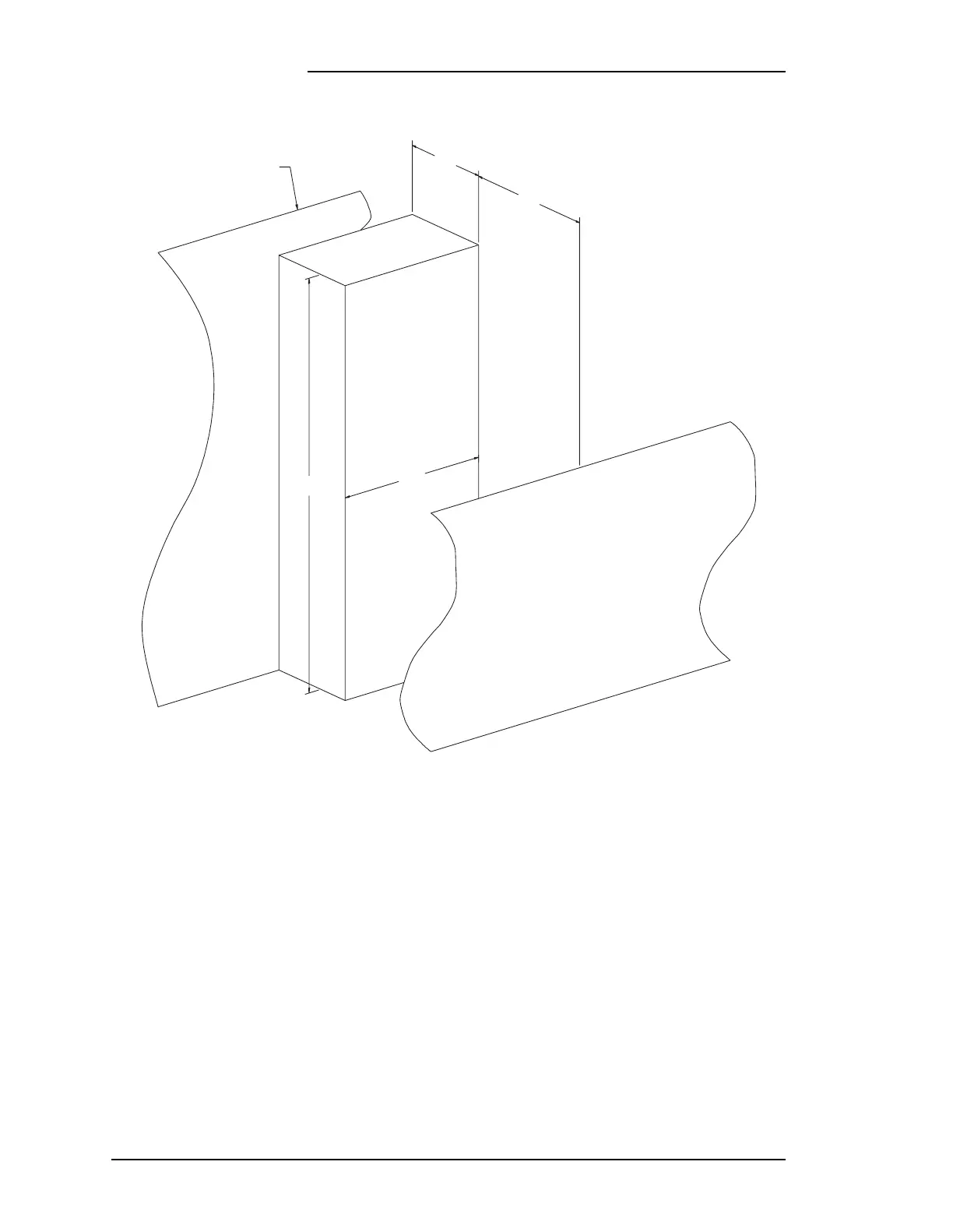

Figure 3-2b: Bay Dimensions and Clearances (List 1
equipped with List 10 or List 11)
No Wall Clearance
Required
DEPTH
L10=24.0"
L11=18.25"
30.00
AISLE CLEARANCE
86.67
HEIGHT
32.25
WIDTH
