Lucent Technologies Lineage
®
2000 ECS Battery Plant J85500D-3
4 - 12 Installation Issue 5 January 1999
Step H: Initial
charge
Batteries may undergo initial charging at this time, according to
the manufacturer's recommendations. One of the rectifiers may
be used for initial charging. Refer to the procedures given in the
Battery and Rectifier manuals.
Step I: Controller
test
Follow the controller test procedure given in the ECS controller
manual to complete the steps below.
1. Test Enable/disable equalize charge feature.
2. Test Enable/disable rectifier restart feature.
3. Test HV shutdown level(s).
4. Test BD alarm levels.
5. Test other optional circuit packs.
Step J: Load
turn-up
Turn on and adjust all rectifiers for normal operation according
to the Rectifier manual.
WARNING:
Before applying power to any individual load, follow the

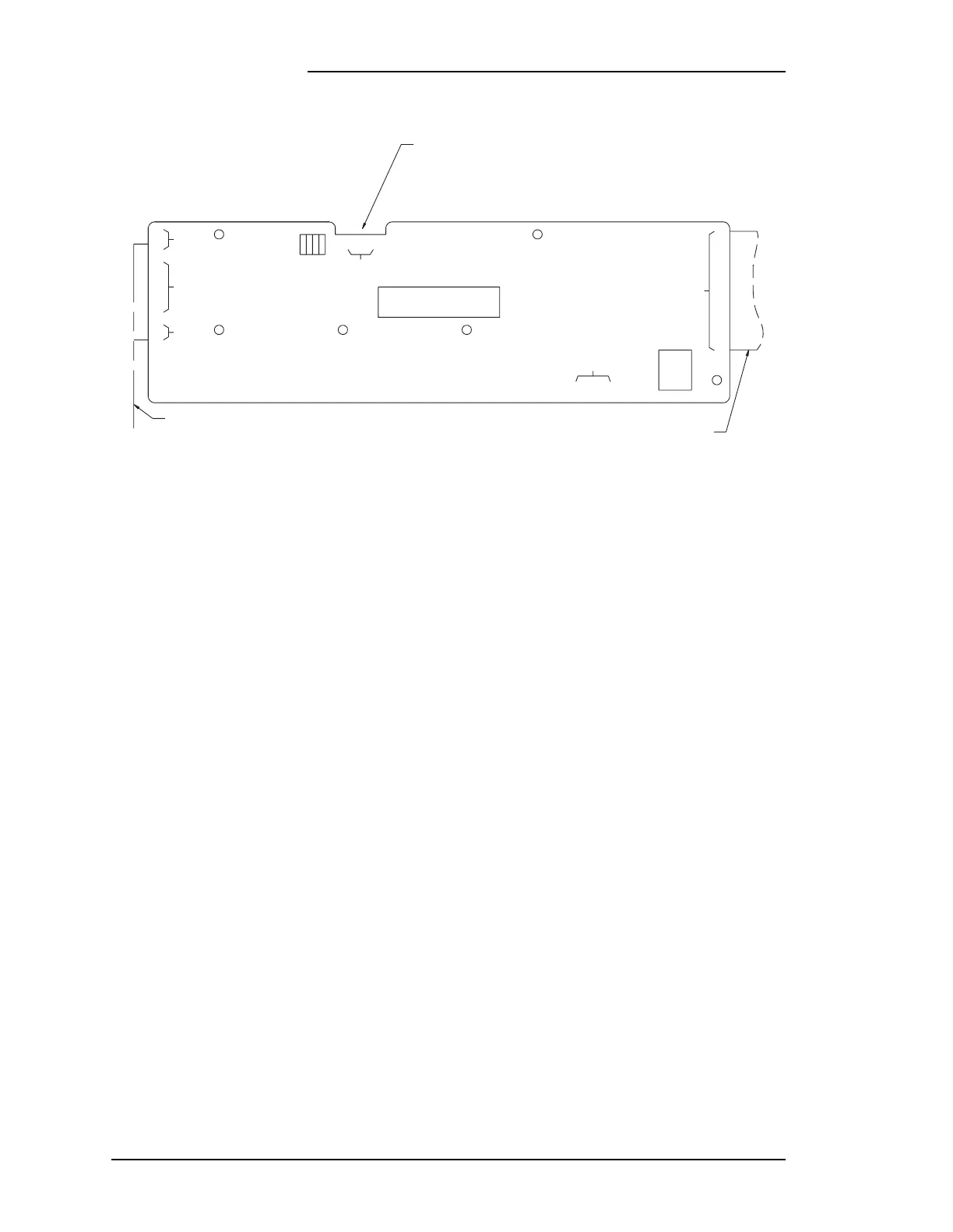

Figure 4-5: LVD/Fuse Board with thermal compensation
circuitry (BID1) switch locations
Jumper
(For Factory Setting
See Table "S" and
Note 8)
General Path
of Cable
General Path
of Cable
P506
P507
P510
F500
P502
1 1/3 A
1
40
10
5
6
1
B1D1
LVD / FUSE BOARD
SD-82678-02
P501
P504
E501
E502
E503
1
1
1
1
1
4
4
5
8
SW500
3
To Next Page
