1) RF IN : HF Normal, Full Band
Frequency : 48MHz ~ 2.7GHz => High Frequency
Range : +10dBm ~ -55dBm => High Power
2) RF IN : HF Low Noise
Frequency : 48MHz ~ 2.7GHz => High Frequency
Range : -30dBm ~ -55dBm => Low Power
3) RF IN : LF Normal
Frequency : 100KHz ~ 48MHz => Low Frequency
Range : +10dBm ~ -45dBmv
4) RF IN : LF AM
Frequency : 100KHz ~ 2MHz => Low Frequency, 2MHz Under
Range : +10dBm ~ -45dBm
5) RF Out : Frequency : 100KHz ~ 2.7GHz
100KHz ~ 48MHz : Max Power(+10dBm)
48MHz ~ 2.7GHz : Max Power(+3dBm)

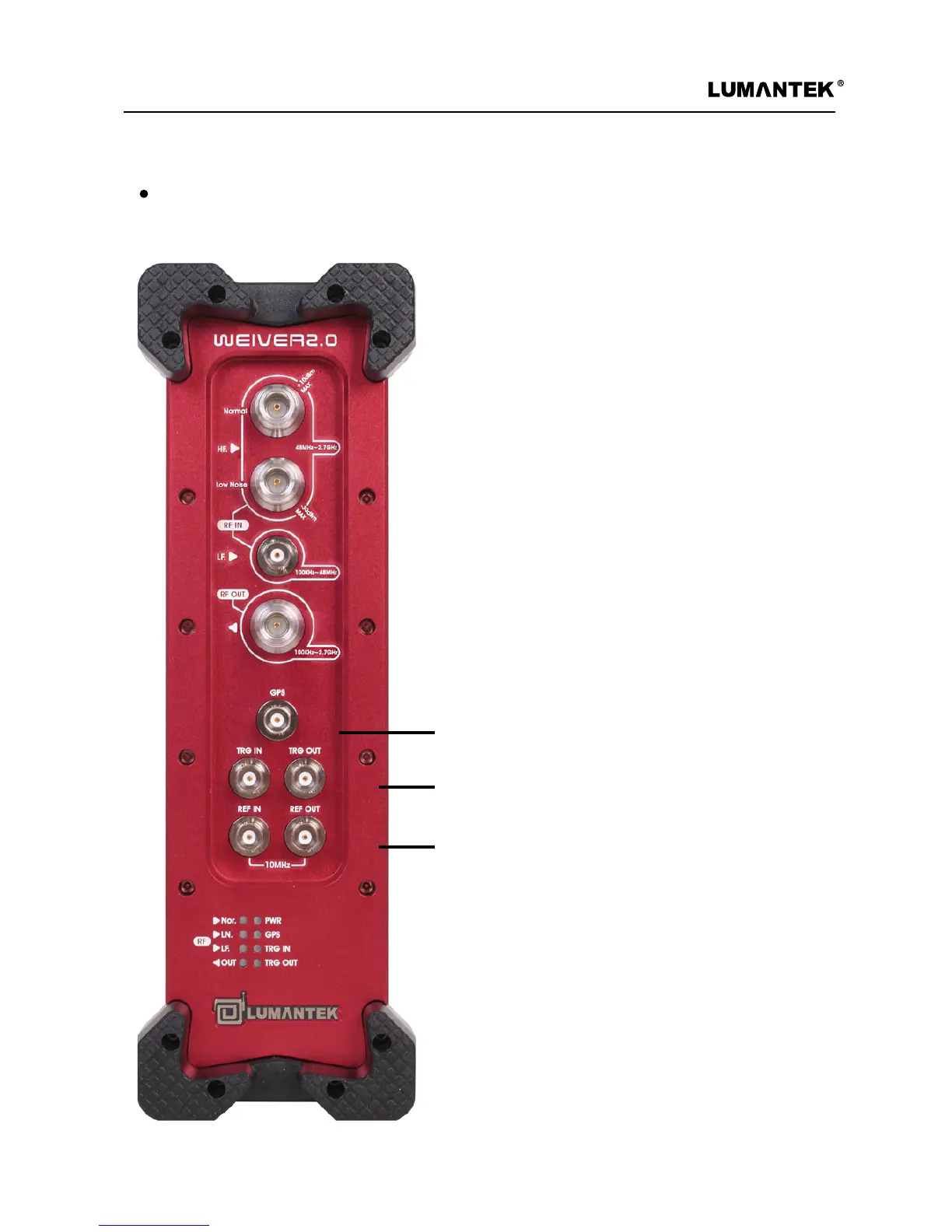

Front – RF Port / Ext Port
GPS In : GPS Antena
Trg IN : Low(0V) or High(3.3V)
Trg OUT : Low(0V) or High(3.3V)
Ref IN : 10MHz
Ref OUT : 10MHz
