Lumantek WEIVER 2.0 User Manual

WEIVER 2.0 Manual
Weiver 2.0
/ Operations Manual
29

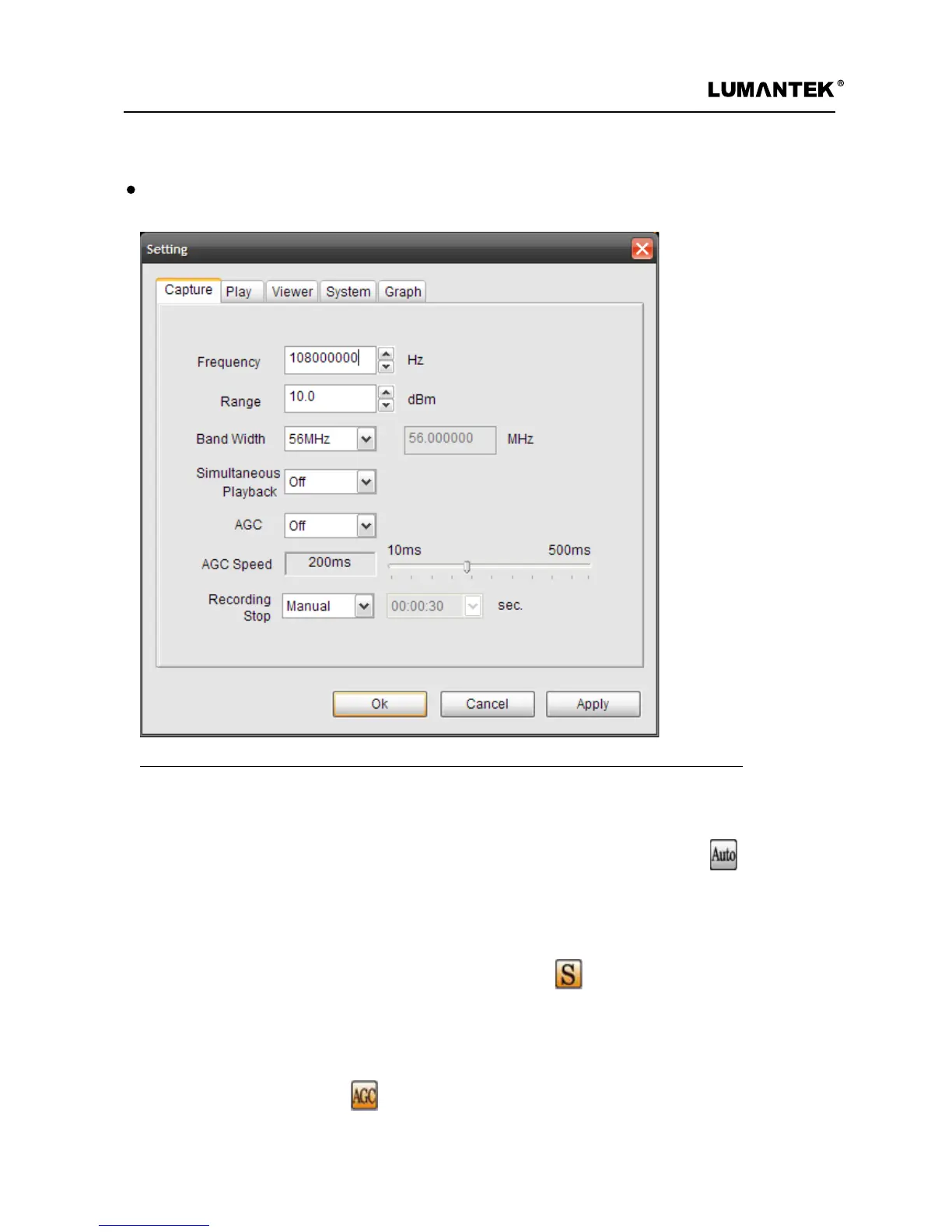

Setting
The rst tab, Capture includes Frequency, Range, Bandwidth, Simultaneous Playback, AGC.
- Frequency : In the Preview or Capture Modes, the frequency can be controlled
- Range ( appendix.) : Range features associated with the Capture Mode, the Auto Power
Adjustment
feature can be activated to automatically adjust for optimal RF signal (weak or strong).
-Band Width : In the Preview or Capture modes, the bandwidth can be selected at either 8M, 24M, 48M. 56M
and arbitrary bandwidth.
- Simultaneous Playback ( Simultaneous Capture and Playback )
When you run the capture status or the preview status, RF OUT port provides the function to make
simultaneousness output so you can measure the actual quality of the signal. What you're seeing is what
you're recording.
- AGC [Automatic Gain Control]
In cases of Fields the input signal power can not be predicted or Drive tests the signal power is irregular, AGC
will nd the signal power automatically and capture a reliable signal by operation of the attenuator.
Within the Setting menu there are 4 unique tabs to choose from.
