30
-AGC Speed : AGC interval can be set to 10ms ~ 500ms .
- Recording Stop : Two options, Manual and Auto, are available. In Manual, a user needs to push 'Start', 'Stop'
button. In Auto, automatically stopped at user's pre-set time.

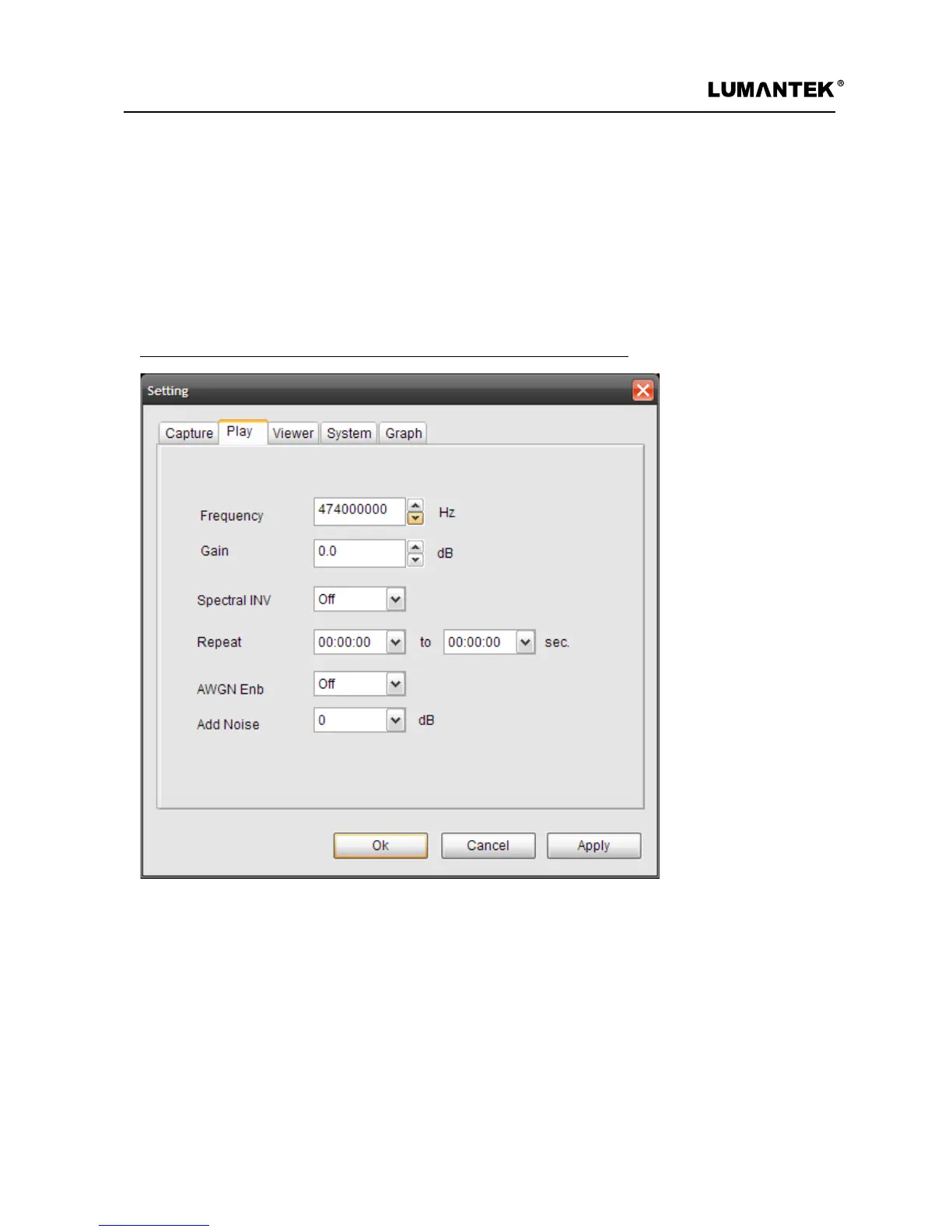

The second tab, Play includes Frequency, Gain, Spectrum INV and Repeat.
- Frequency: Support to Play the signal the user wants optionally by controlling RF Signal Center Frequency.
- Gain : When Playback is initiated, the RF signal can be amplied less than the captured RF signal or it can be
increased more than the captured RF signal (Input RF signal power of -30dB to +30dB). Also during Playback,
Gain 0 dB means that signals(Capture and Playback) power are equal. The maximum output signal can not
exceed +10dBm.
- Spectral INV : Provide the function of inverting I/Q of the signal output.
- Repeat : Provide the function of output a specic section repeatedly on les captured.
