Lumantek WEIVER 2.0 User Manual

WEIVER 2.0 Manual
Weiver 2.0
/ Operations Manual
35

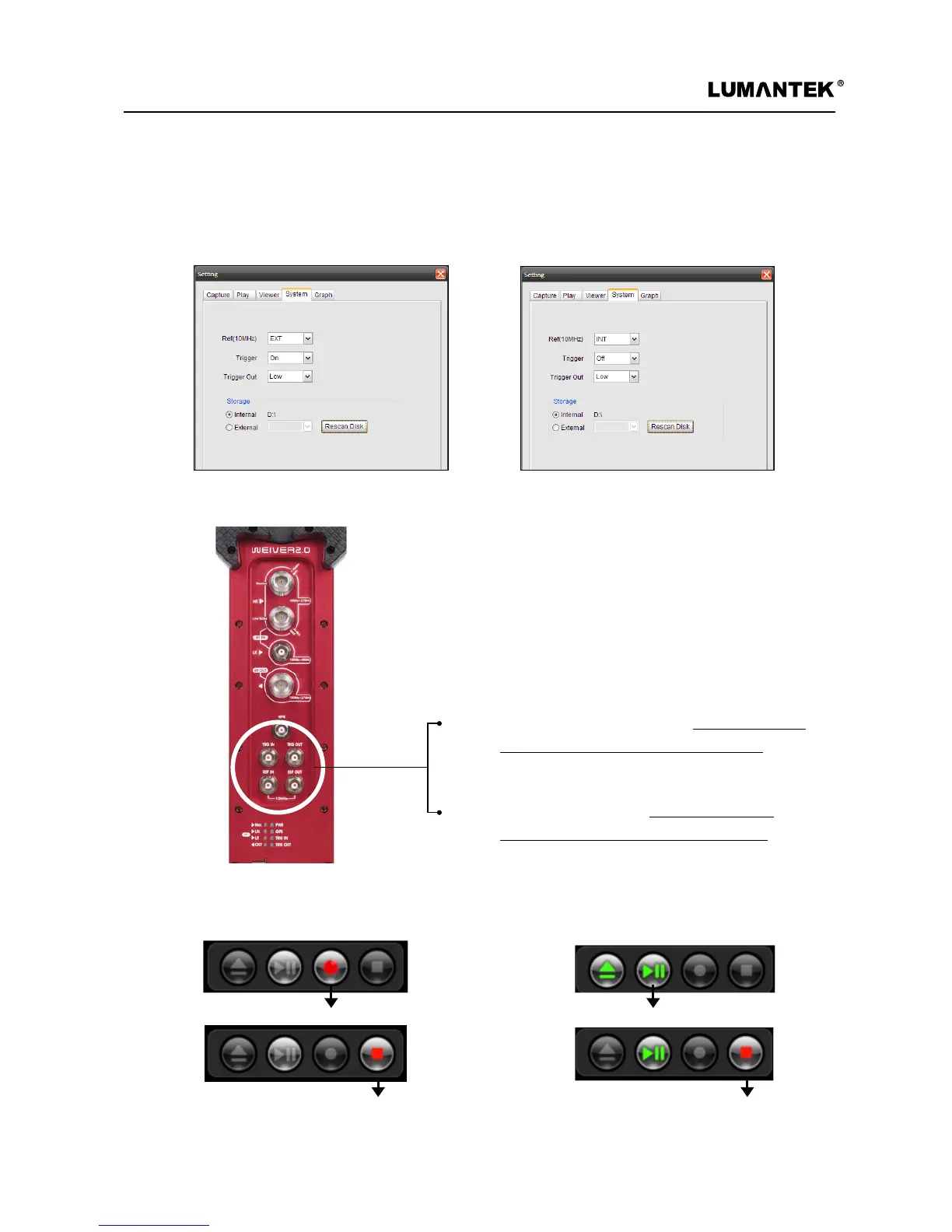

* Trigger Operation
In WEIVERex setting, user can choose to use an external trigger.
Trigger OTrigger On
If user equips an external trigger and choose to turn trigger
on(in previous page),
When you do not push trigger : Low Level(0V) – In
capture & play mode, WEIVER doesn’t work.
When you push trigger : High Level(3.3V)– In
capture & play mode, WEIVER starts to work.
0V
3.3V
Record Start Button
Record Stop Button Play Stop Button
Play Start Button
In Play Mode (WEIVERex)In Capture Mode (WEIVERex)

Lumantek WEIVER 2.0 Specifications

General

Brand	Lumantek
Model	WEIVER 2.0
Category	Measuring Instruments
Language	English
