Weiver 2.0
/ Operations Manual
36

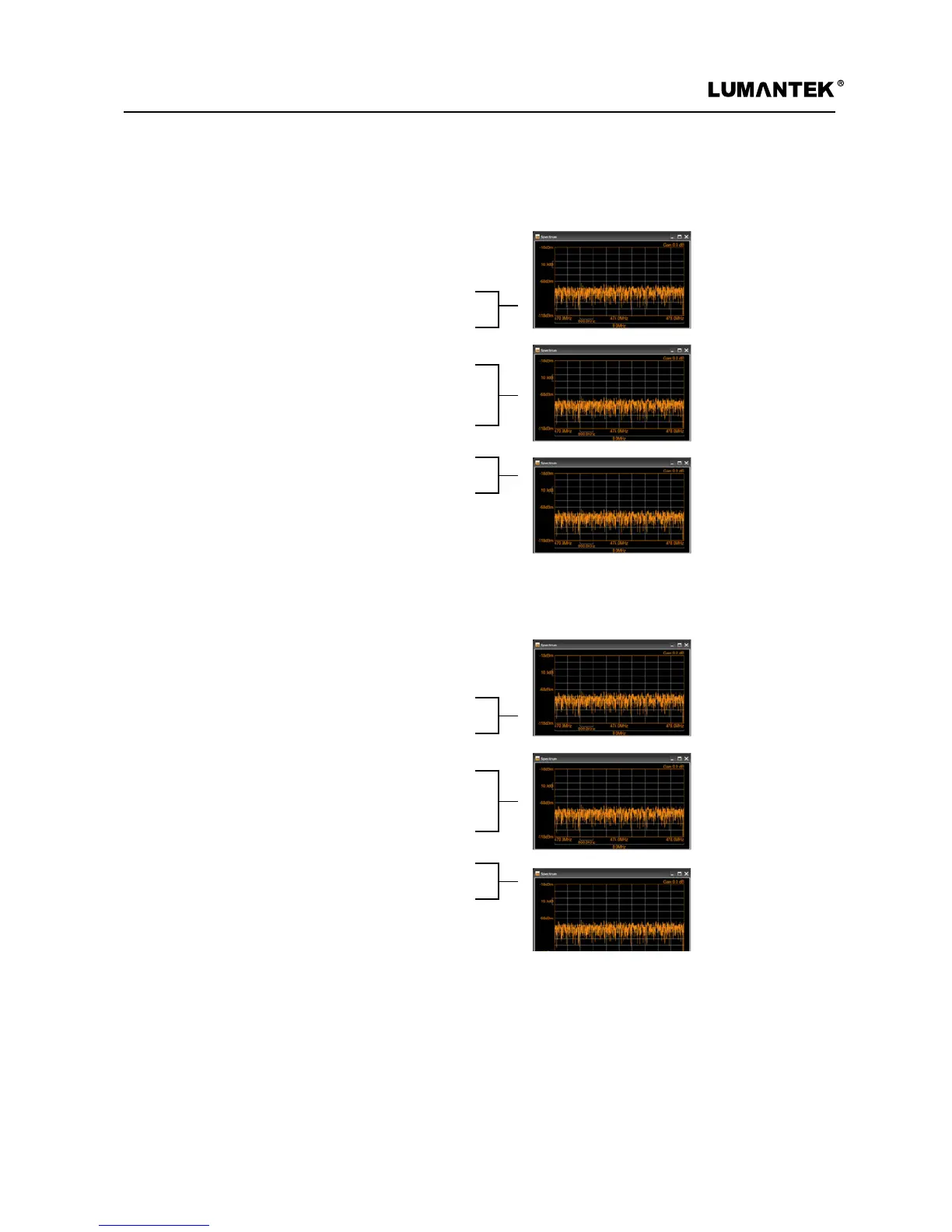

1. Insert a trigger in ‘trigger port’ : Low Level(0V)
2. Trigger’s power On
3. In WEIVERex, Record Start Button Click
4. Activate(push) Trigger : High Level(3.3V)
5. Recording…. Saving le(iqw, wpj)
Recording... Recording...
6. Deactivate(stop pushing) Trigger : Low Level(0V)
7. In WEIVERex, Record Stop Button Click
8. Trigger’s power O
1. Insert a trigger in ‘trigger port’ : Low Level(0V)
2. Trigger’s power On
3. In WEIVERex, Play File Select, Play Start Button Click
4. Activate(push) Trigger : High Level(3.3V)
5. Playing le(iqw, wpj)
Playing... Playing
6. Deactivate(stop pushing) Trigger : Low Level(0V)
7. In WEIVERex, Record Stop Button Click
8. Trigger’s power O
Play Mode Scenario with trigger
- Storage
In Capture Mode, the WEIVER can record to either the internal (default) SSD or the external e-SATA (optional) SSD directly. The recording
data is written in real-time in the two way, internal and external storages.
While on recording, the data overow can be occured. When this overow occurs, the captured data may not be written properly. The
read and write speeds for the e-SATA SSD is more than 240MB/s.
The primary storage destination is D:\ (“D Drive”), all Captured data les can be found in D:\WeiverData\Record. The external SSD’s
location will be E:\ (“E Drive”) and Captured data les can be found in E:\WeiverData\Record.
Capture Mode Scenario with trigger
Stopping
Updating
Updating
Stopping
Stopping
Updating->
Stopping
