IGA 320/23-LO Operating Manual Introduction
12

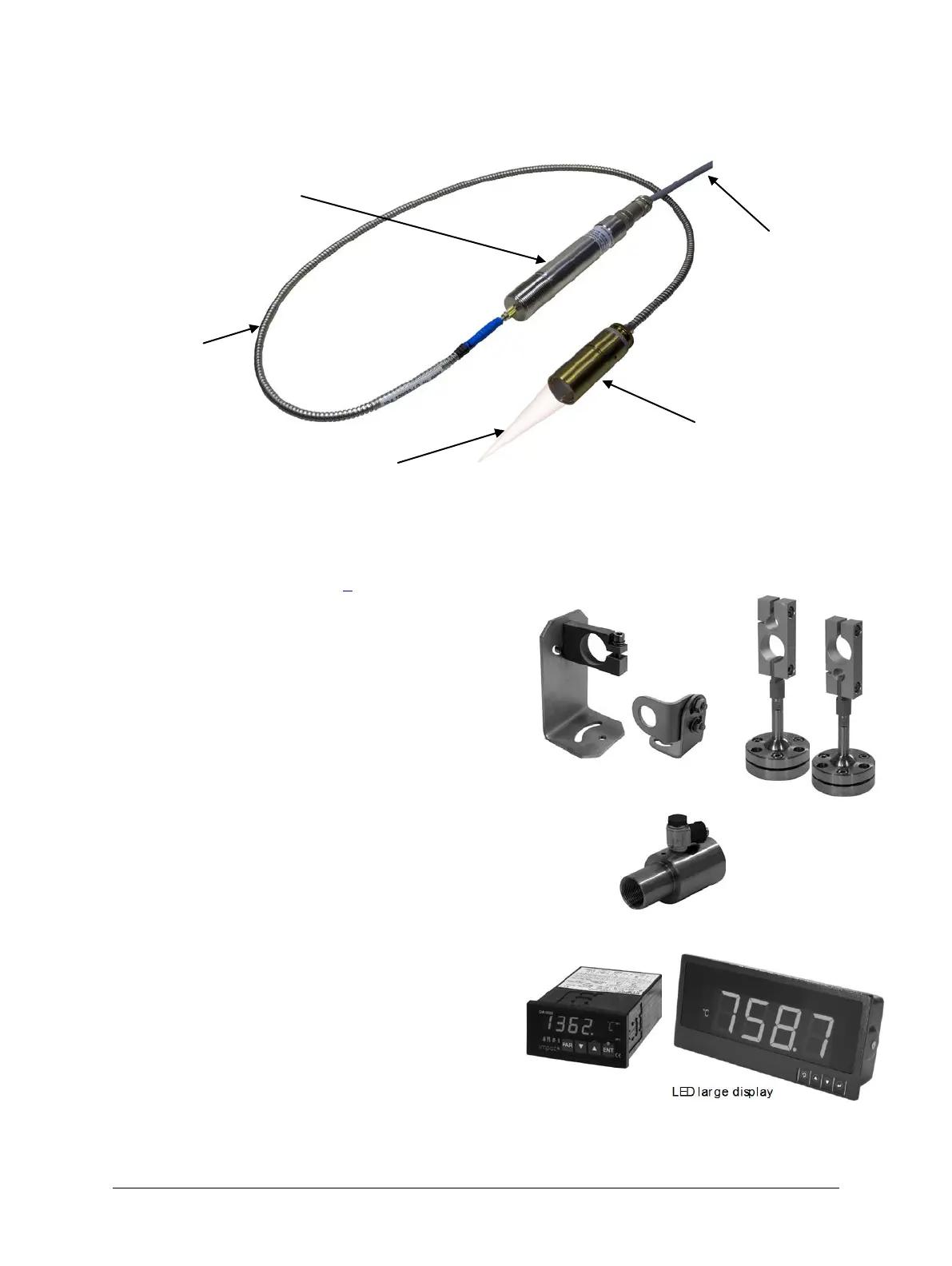

2.5 Physical User Interface
2.6 Accessories (Optional)
Numerous accessories guarantee easy installation of the pyrometer. The following overview
shows a selection of suitable accessories. You can find the entire accessory program with all
reference numbers in Chapter 8
, Reference numbers.
2.6.1 Mounting
To mount and align the optical head to the
measured object, mounting angles or a ball and
socket mounting are available. Both options allow
you to easily mount the optical head and align it to
the measured object. However, the clamping-screws
of the ball and socket mounting also allow you to
quickly adjust the pyrometer in all directions.
Mounting angles
Ball and socket mounting
2.6.2 Air purge
The air purge protects the lens from contamination
of dust and moisture. It has to be supplied with dry
and oil-free pressurized air (1.5 m³ / h) and generates
an air stream shaped like a cone.
Air purge
2.6.3 Displays
For temperature indication, several digital displays
are available. Some of them can also be used for
remote configuration of the pyrometer.
Digital display
DA 6000
Robust stainless steel
housing with small
d
LED targeting light shows middle
of spot size and optics focus
Precision
optics
Connection cable with
connector and cables
for:
Power supply
LED targeting light
switch on/off
RS485 interface
Analog output
Switch contact
Monofiber in
stainless steel, flexible
protection tube
