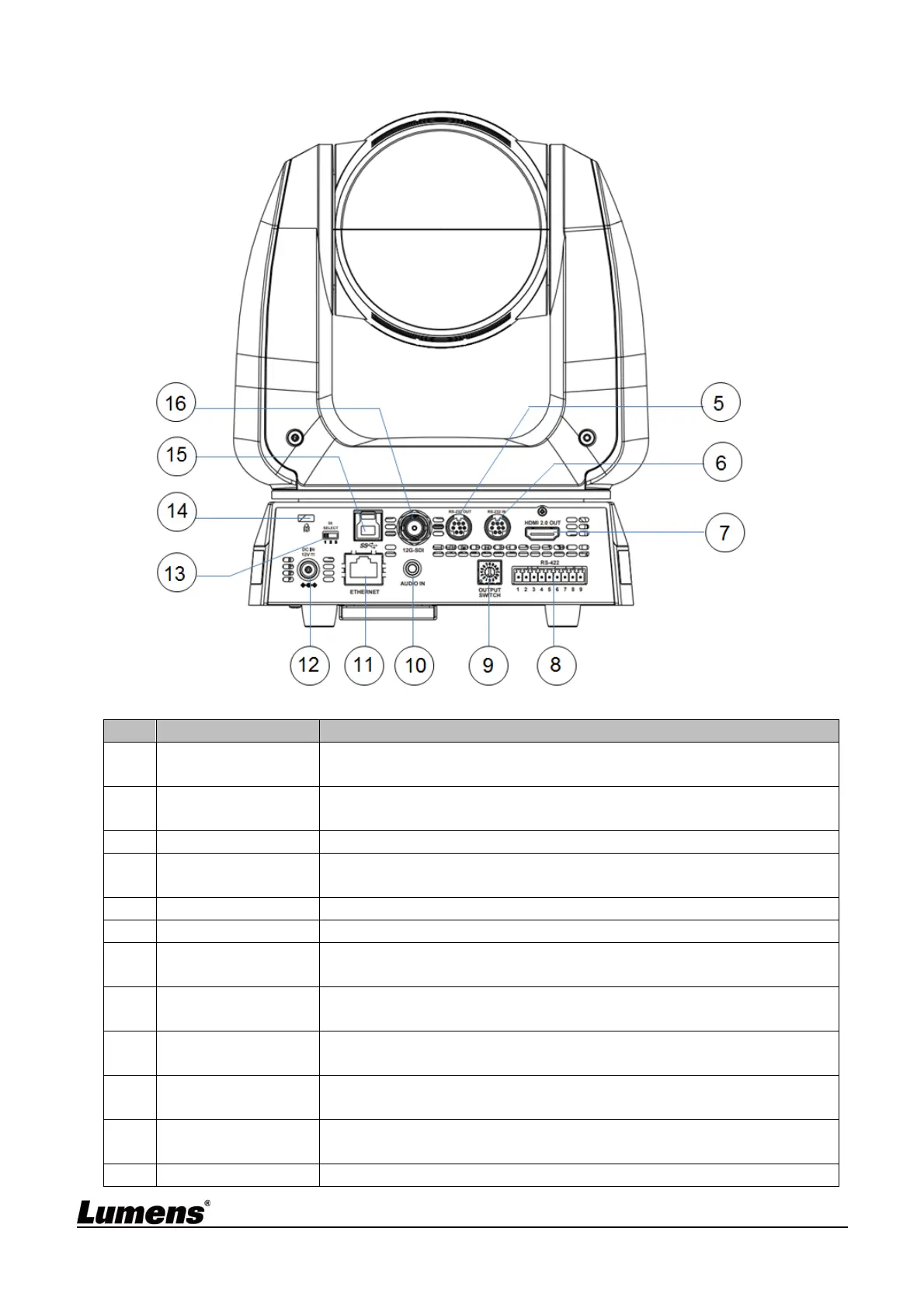

3.1.2 Back View
NO. Item Function Descriptions
5. RS-232 output
RS-232 output port, at most 7 cameras can be connected in a
serial connection
6. RS-232 input
RS-232 input port, at most 7 cameras can be connected in a serial
connection
7. HDMI 2.0 output HDMI 2.0 output (Audio output supported)
8. RS-422 port
RS-422 connecting port, at most 7 cameras can be connected in a
serial connection
9. OUTPUT SWITCH Adjust the resolution setting. The default is 3840 x 2160/59.94p
10. Audio input Support Line In/Mic In
11. Network port
Network port supports routers or hubs of PoE++ (IEEE802.3BT)
with power supply
12.
DC 12 V power
connector
AC power supply connecting port
13. IR SELECT
The remote control ID setting is only controlled after corresponding
to the Camera Select on the remote control
14.
Kensington lock
hole
Safety lock slot
15. USB 3.0 port
The USB port is for connecting to the USB port of the computer
and providing USB signal images
16. 12G-SDI output 12G-SDI output (Audio output supported)
