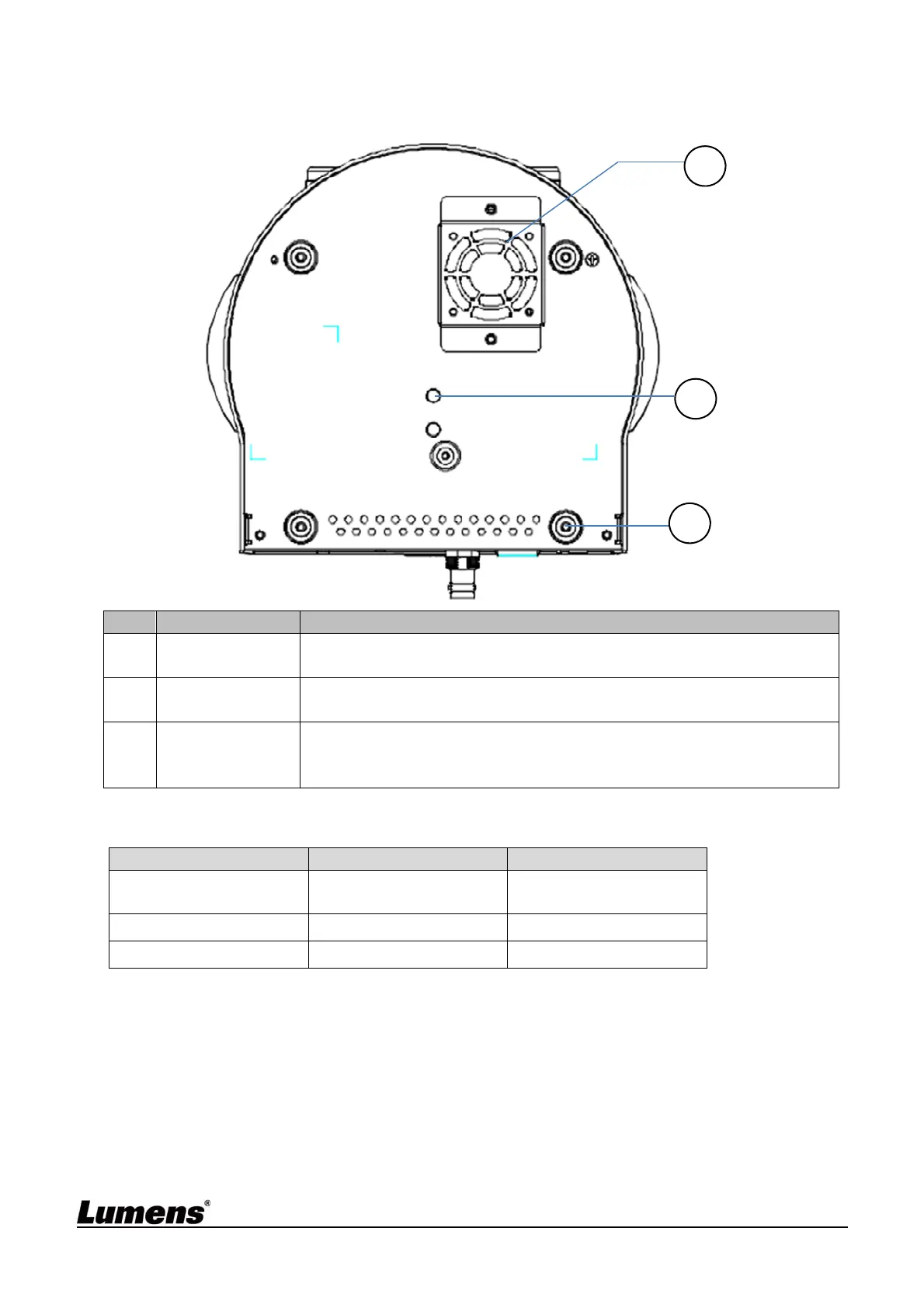

3.1.3 Bottom
NO. Item Function Descriptions
17. Mute cooling fan The cooling fan automatically controls its rotation speed and performs
cooling in cope with the operation temperature of the machine
18. Tripod deck lock
hole
The camera is mounted on a (specification) 1/4” - 20 UNC tripod deck
19.
Rotatable foot
pad
When using the metal plates of accessories, remove 4 pieces of
rotatable food pads on the bottom by rotating counterclockwise, and
then install the mental plates
3.2 Description of LED indicator
Status Power Standby
Startup in progress
(initialization)
Green light Orange light
In use Green light No indicator
In standby mode No indicator Orange light
3.3 Tally Lamp Function Description
3.3.1 Tally Lamp function may be enabled through the control of RS-232 command. The
setting method is as follows:
Tally Mode: 8x 01 7E 01 0A 01 0p FF
p = 0: OFF
p = 4: Red light (half-brightness)
p = 5: Red light (full-brightness)
17
18
19
