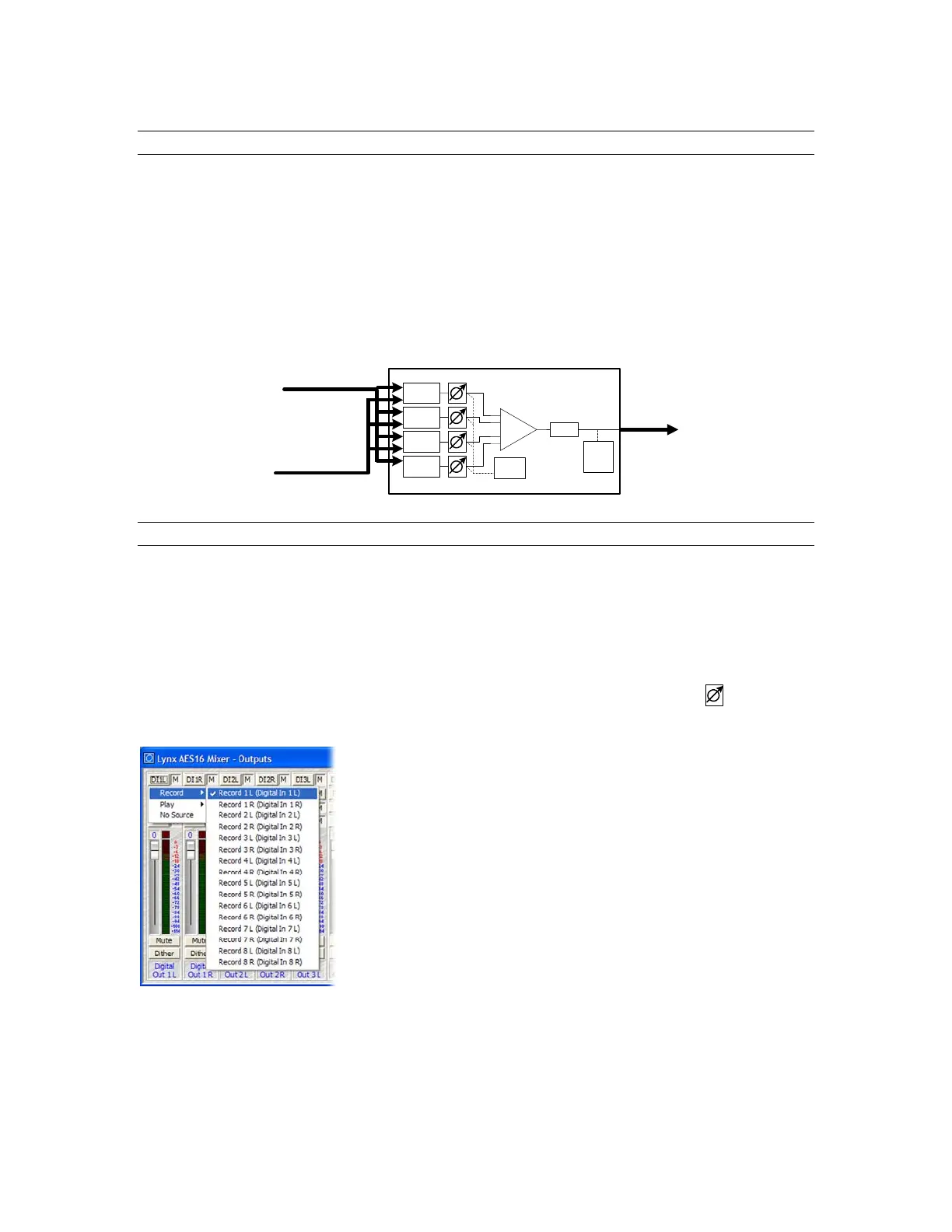

Using the AES16
7.2.1 Monitoring Theory
Low latency monitoring can be enabled using the
AES16’s on-board digital mixer. This method
avoids delays caused be monitoring through
application software. The digital mixer can be
setup manually using the Lynx Mixer application
or within applications that support direct
monitoring.
As discussed in Section 5.1.5 Digital Mixer
Outputs, each output of the AES16 is derived
from a four-input submixer. This submixer is
shown below. The inputs to the submixers
include both input signals and playback signals.
Enabling record monitoring is simply a matter of
selecting a desired input signal for mixing on a
particular output.
Output Bus
(16 signals)
Monitor
Sel ect
Monitor
Sel ect
Monitor
Sel ect
Monitor
Sel ect
Master
Fader
SUM
Dither
Peak
Level
Meter
Digital Mixer Ouput Submixer
( 1 of 16 )
R
e
c
o
r
d
B
u
s
f
r
o
m
I
n
p
u
t
s
(
1
6
s
i
g
n
a
l
s
)
P
l
a
y
B
u
s
f
r
o
m
P
l
a
y
d
e
v
i
c
e
s
(
1
6
s
i
g
n
a
l
s
)
7.2.2 Monitor Setup Using Lynx Mixer
The Outputs window of the Lynx Mixer provides access to the submixer connected to each physical output.
Controls on this window allow manual setup of monitoring.
The four Monitor Select blocks shown in the submixer diagram correspond to the four Output Monitor
Source buttons above the faders on each output channel of the Lynx Mixer. A mouse click on one of these
buttons launches a menu of Record and Playback sources. Selecting a Record source causes in input signal
to be routed to the output.
Horizontal faders below these buttons correspond to the submixer input volume controls,
, shown in
the diagram above.
In this example, Digital In 1 is being selected as a monitor source for
Output 1 Left. The “M” button next to the Output Monitor Source button
must be in the “out” position to unmute a monitor source. After the
source is selected, a corresponding four-letter pneumonic will appear on
the button.
AES16 User Manual 60
