Appendices

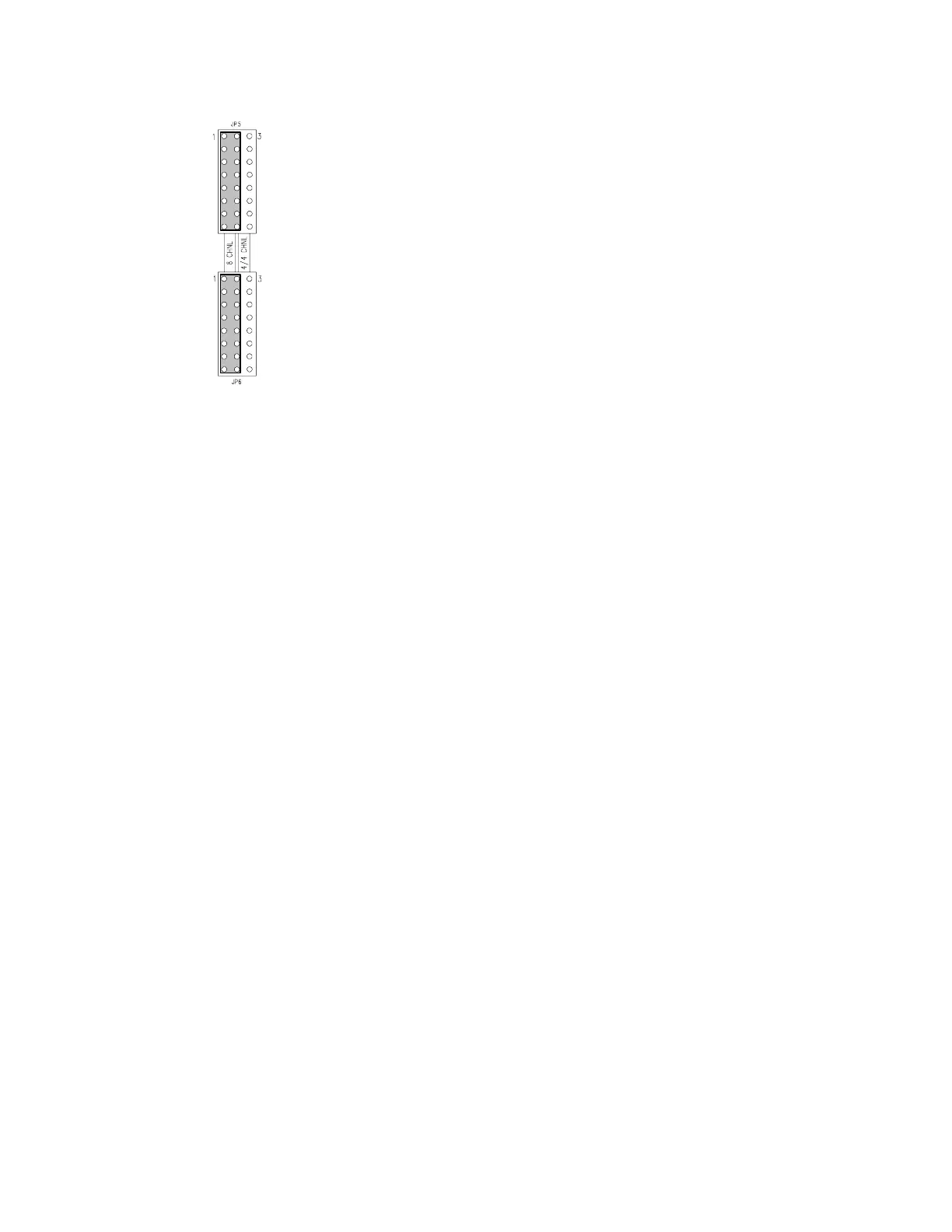

For connections to equipment with D25 connectors supporting
eight channels of input or eight channels of output, the I/O
Configuration Jumpers should be set to the 8 CHNL position on
JP5 and JP6 as shown below. In this position, I/O Port A provides
eight AES/EBU inputs and I/O Port B provides eight AES/EBU
outputs. This is the required position for CBL-AES1603.
In either I/O Configuration mode, a clock input signal is available on I/O Port A and a clock output signal
is available on I/O Port B. These signals are available on the BNC connectors on CBL-AES1604 breakout
cable
AES16 User Manual 74
