Ingeniería de Servicio

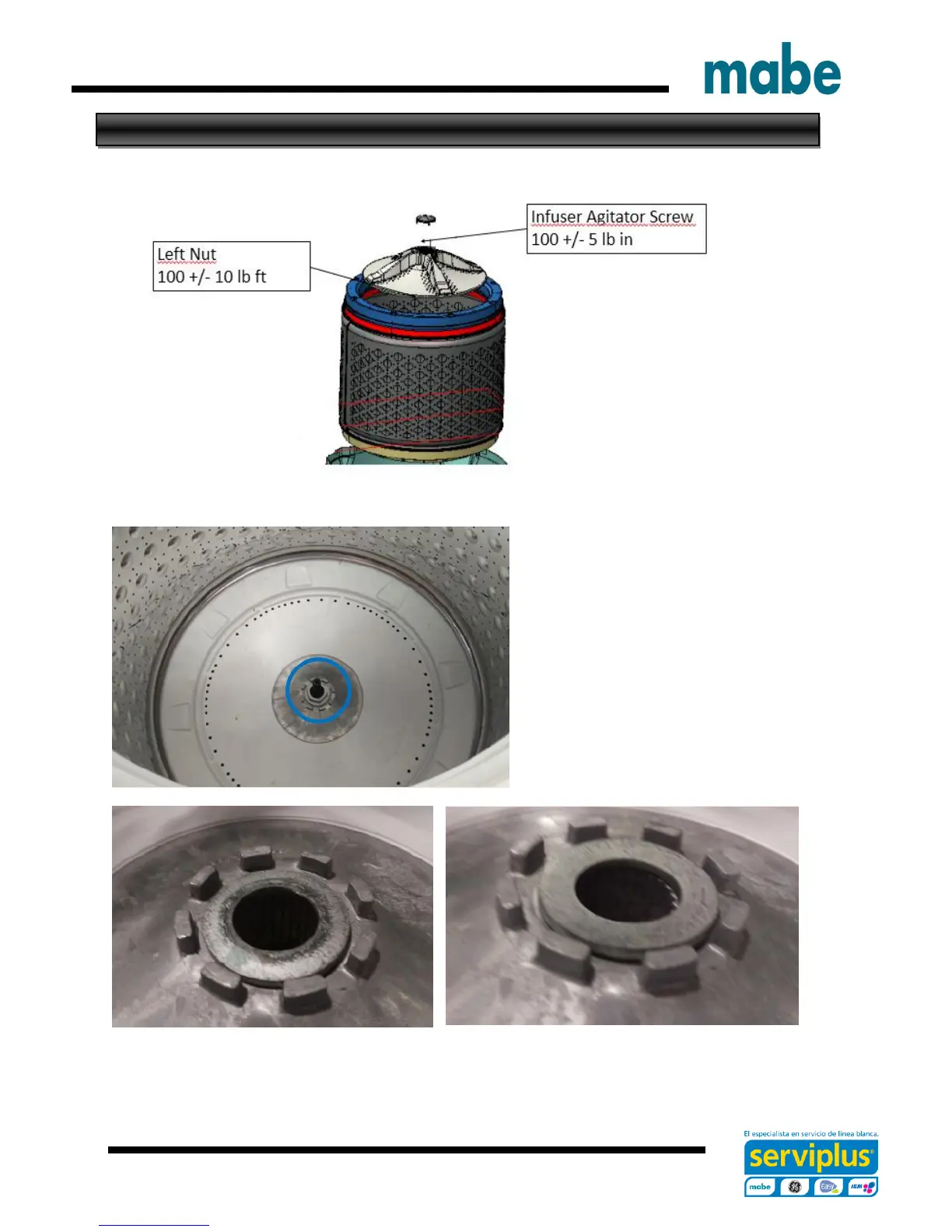

Basket Removal
Remove the 1-5/16
th
in. hub nut by
turning the nut clock-wise to loosen
(reverse threads).
A new hub nut should be used when
reinstalling the basket assembly.
Torque to 100 +/- 10 ft.lbs.
Remove the hub washer
Right position Wrong position
Be care of position when reinstalling the hub washer.
