Drain And Recirculation Pump
Recirculation pump

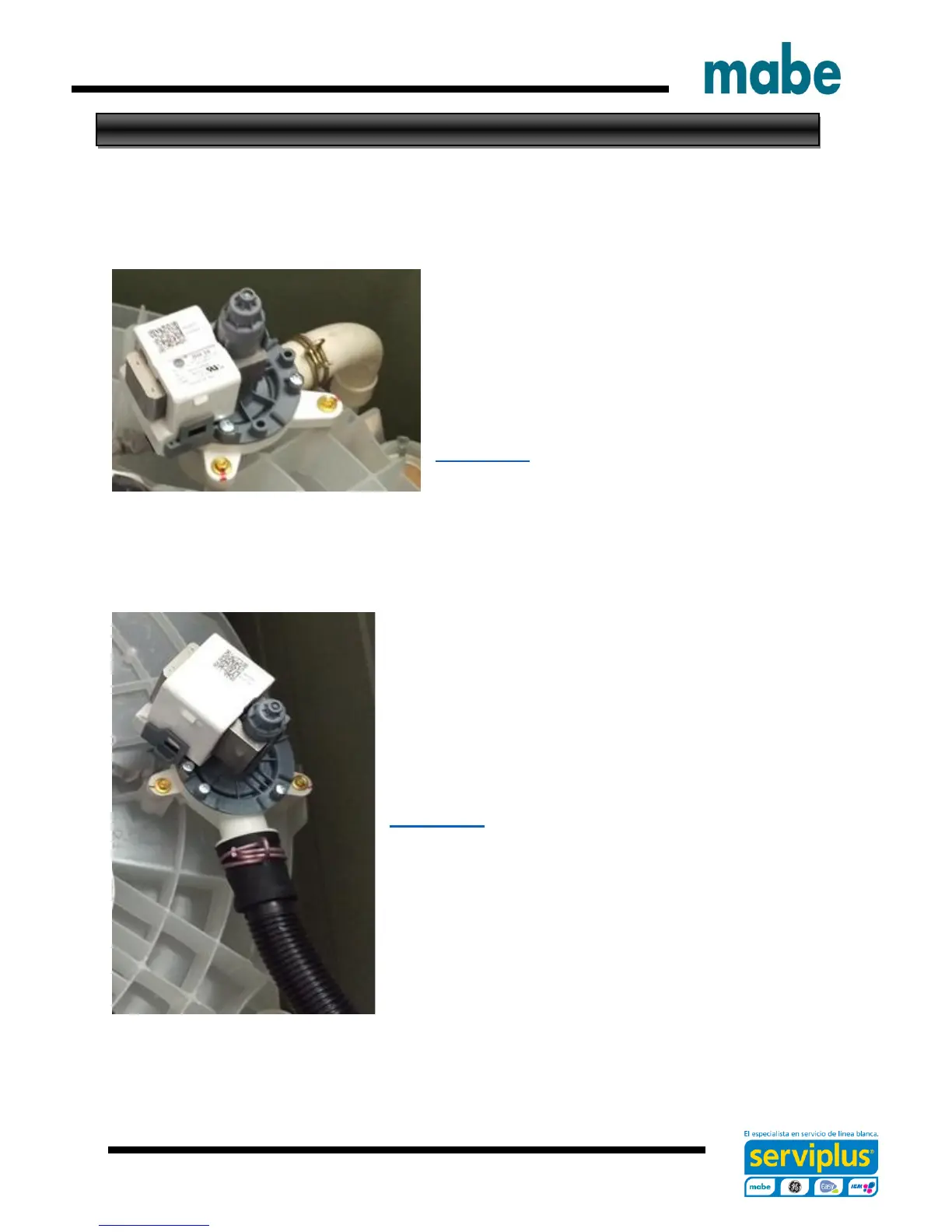

The GTW680 model has a recirculation pump
located at the front of the bottom of the tub. It
mounts to the tub the same as the drain pump.
Video Link
Drain Pump
The drain pump is located on the right side of the
bottom of the tub. It is mounted directly to the tub
secured by three (3) 3/8
th
in. hex head bolts.
Video Link
Both pumps are 120 VAC.
The approximate resistances of the pumps checked
from J512 board connector are:
Drain pump – 13.2 ohms
Recirculation pump – 31.7 ohms
