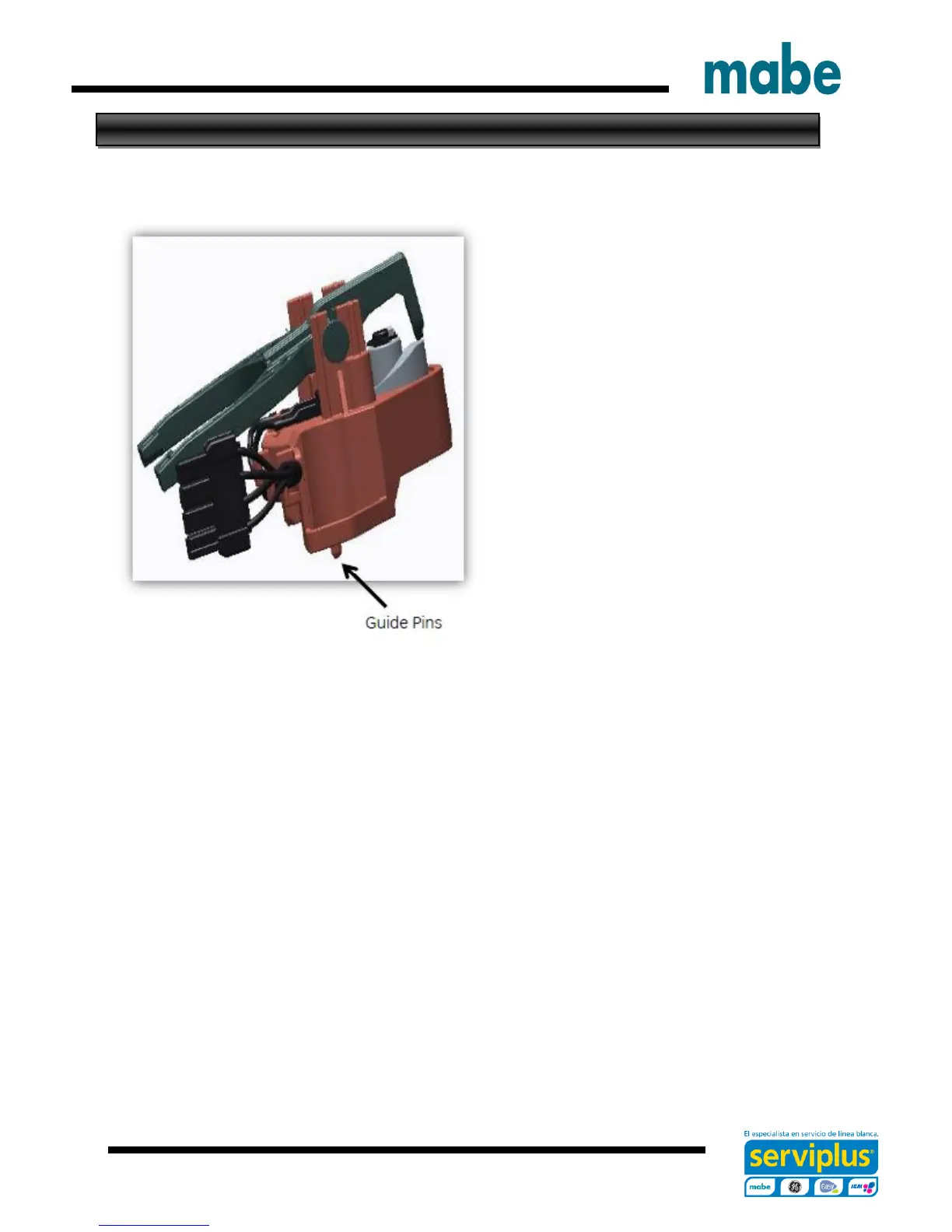

Mode Shifter Assembly
The mode shifter either engages or
disengages the clutch with the
transmission pulley depending on
whether the cycle is in spin or
agitate.
The clutch home position is
engaged with the pulley or ready for
spin.
It has a 120 VAC motor.
Resistance of the mode shift motor
from Red – Blue is 5700 +/- 10 %
ohm from J512 board connector.
To remove the mode shifter:
Remove the transmission pulley and nut. The pulley is held on by a 9/16 in. lock nut.
Use a new nut when reinstalling the pulley and torque to 110 in-lbs.
