Ingeniería de Servicio

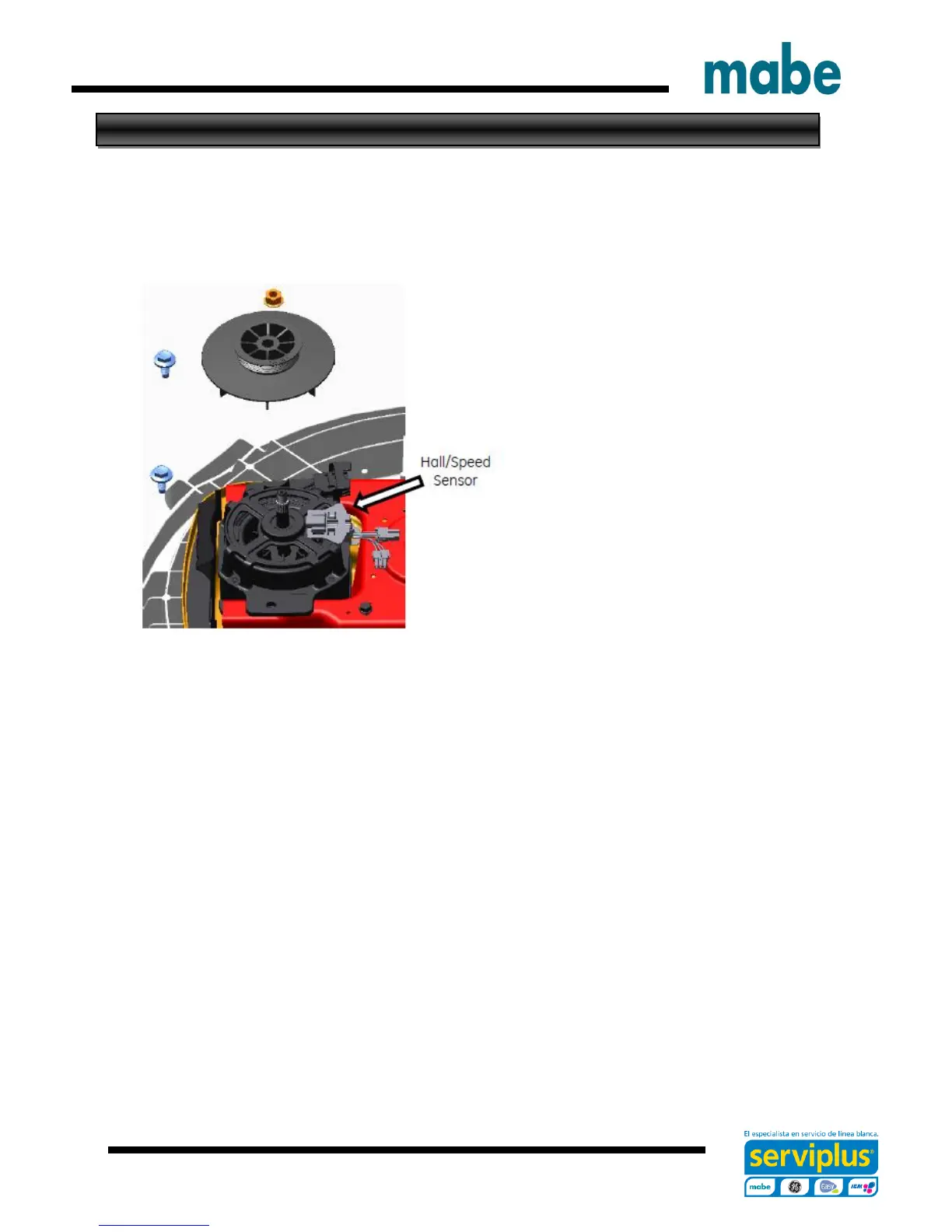

Drive Motor
Unclip the hall/speed sensor from the
motor.
Remove two ½ in. bolt mounting the
motor to the tub letting the motor
come loose from the platform.
When reinstalling the motor mounting
bolts torque to 110 in-lbs
Note.- If the hall/speed sensor is wire tied to the motor when replacing the motor, order
both, the motor and hall/speed sensor.
