Platform Transmission Assembly
The platform transmission
assembly is one complete part with
the exception of two harness
connector brackets and one motor
splash guard. These will need to be
transferred to the new platform
assembly when replacing the
platform transmission assembly.

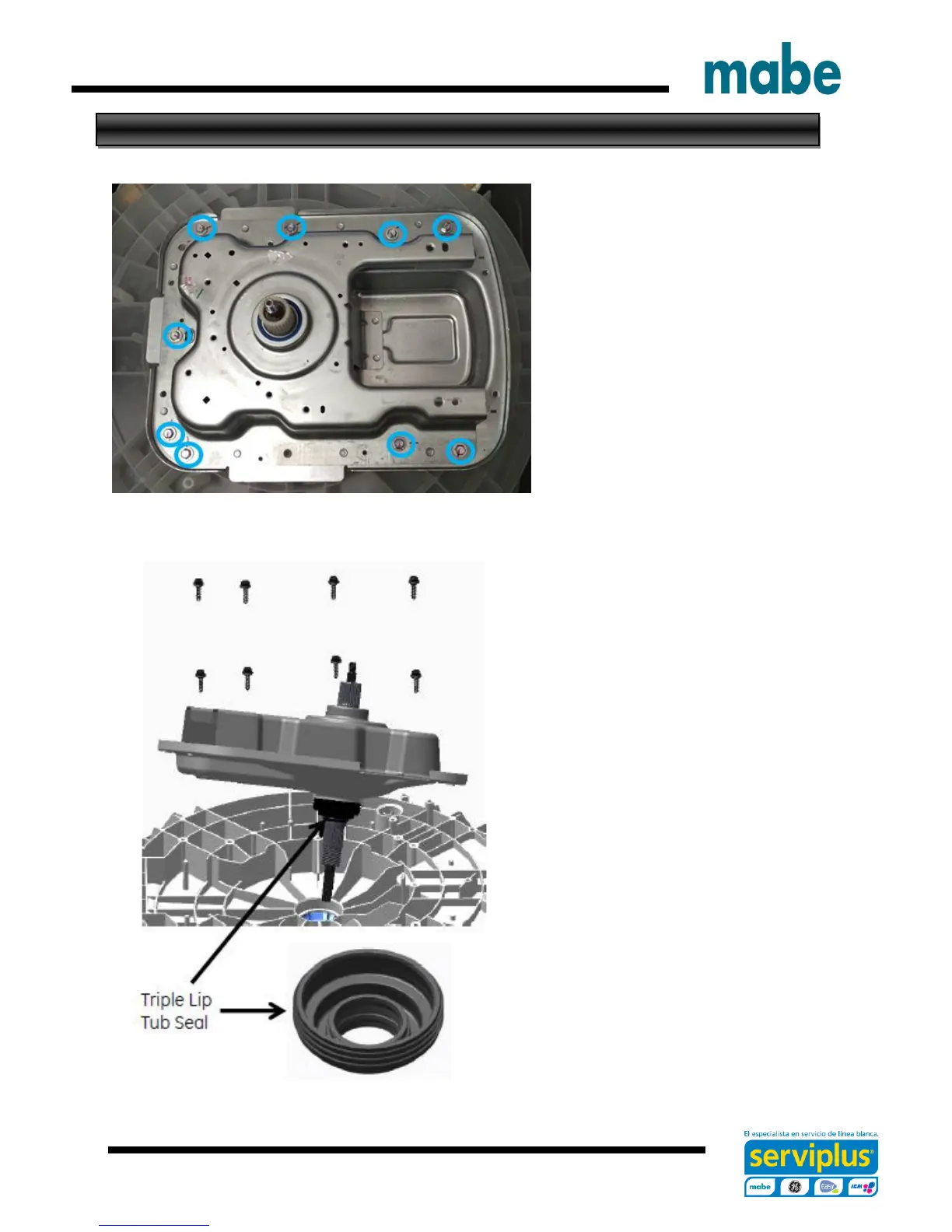

The platform assembly is secured
to the tub by nine 3/8
th
in. hex head
bolts circled. One of these bolts
also holds one of the harness
brackets to the platform.
To remove the platform assembly
after all other components have been
removed, remove the nine 3/8
th
in.
hex head bolts and pull the platform
away from the tub.
Note.- The bottom of the tub can be
used to pry the platform transmission
assembly off of the tub.
The tub seal is pressed on to the
platform transmission assembly. If
there is a leak from the seal, the
complete transmission will need to be
replaced.
