Platform Transmission Assembly
To reinstall the platform assembly
to the tub, slide the shaft of the
transmission into the opening of the
tub.
Press the tub seal into the tub
opening.
Note.- Line the guide post with the
opening in the platform.

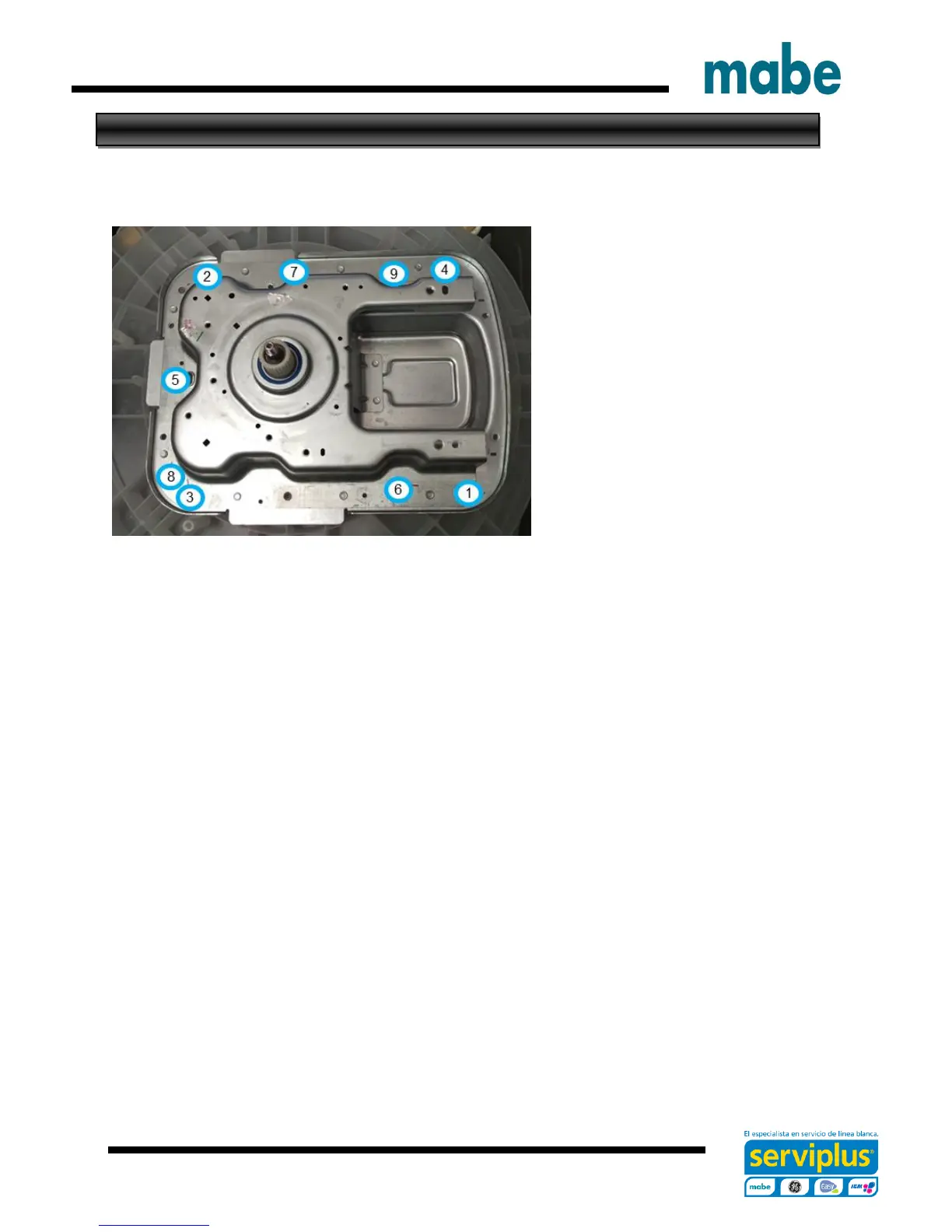

Tighten the nine hex head bolts in
a crisscross pattern so that the seal
is pulled into the tub evenly and
securely
This is done by tightening each bolt about ¼ of the way in at a time.
Torque to 70 in-lbs.
