mabe Kraken - Display Test and Fault Chart

Ingeniería de Servicio
- 56 -
Display Test and Fault Chart
Fault/Test #
displayed on
7-segment display
When entered into service mode
Service Mode Test
0 All LEDs on
1 Fault Codes
2 Personality ID
3 UI Software Version (Critical)
4 UI Software Version (Non-Critical)
5 XML Version (Non-critical)
6 Hot Water Valve
7 Cold Water Valve
8 Fabric Softener Dispenser
9 Spray Rinse Valve
10 Preasure Sensor
11 Recirculate Pump
12 Drain Pump
13 Lid Switch
14 Spin
15 Agitate
16 Clear all F Codes
17 Change Personality
18 Analog knob
Filled circles indicate
light on
Fault/Test # displayed in
binary format using
cycle status ligths

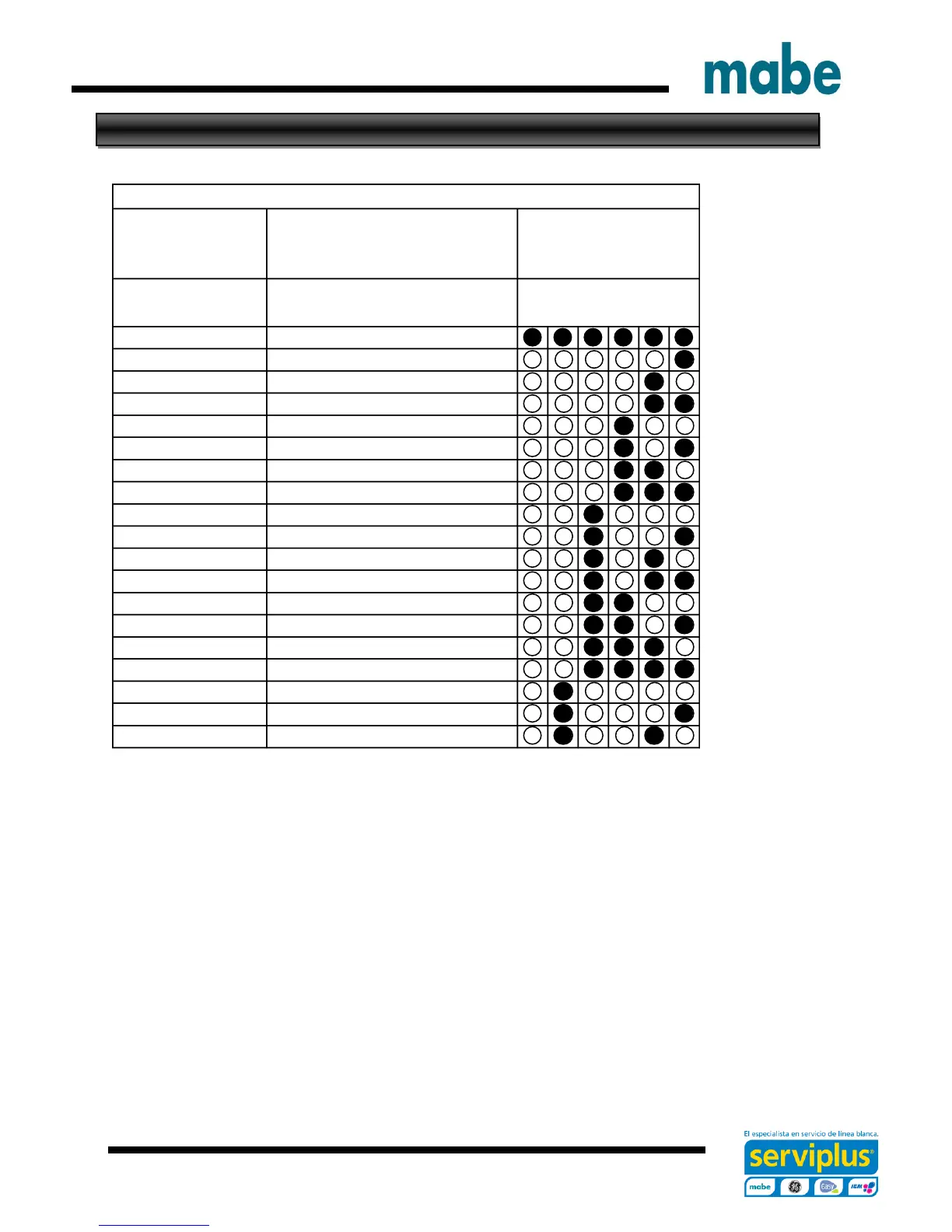

Binary Display Fault Chart
