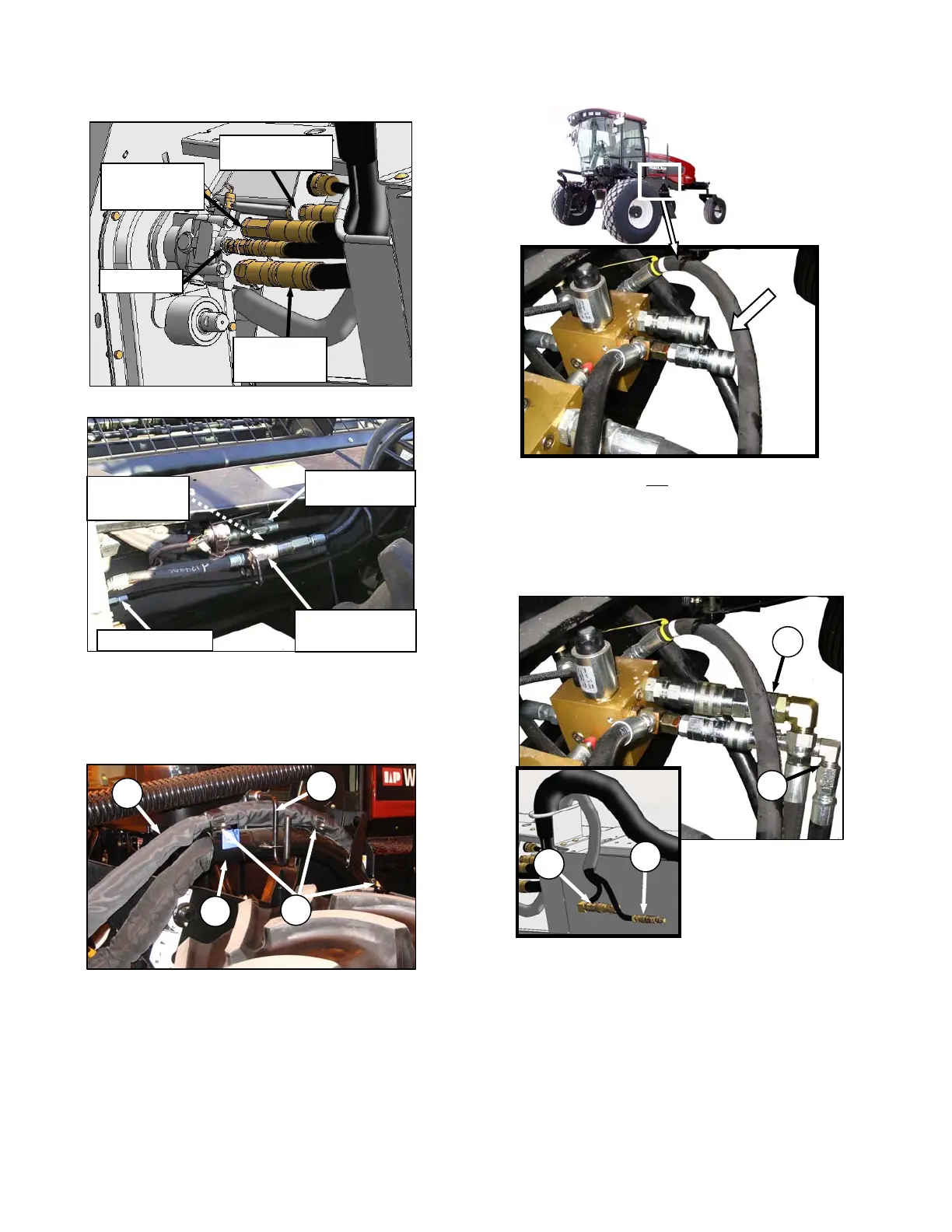

j. Push hose connectors onto mating receptacles
(as shown) until collars on receptacles snap into
“lock” position.
k. Route auger return and reel pressure hose
bundle (H) from header to windrower, and locate
bundle above existing hose support (K) (as
shown).
l. Secure with three straps (L), and lower lever (D).
m. If valve blocks are not
configured (as shown),
install required fittings as described in “A30-S,
A30-D and A40-D Auger Self-Propelled
Windrower Header Unloading and Assembly
Instructions - Form 169078” that was supplied
with your A40-D header.
n. Push auger/reel pressure (A) and auger/reel
return (B) hose couplers onto mating
receptacles on valve block, until collar on
receptacle snaps into “lock” position.
(continued next page)
