SECTION 6 OPERATION
Form 169000 / 169040 39 Revision D
o. Open header LH driveshield.

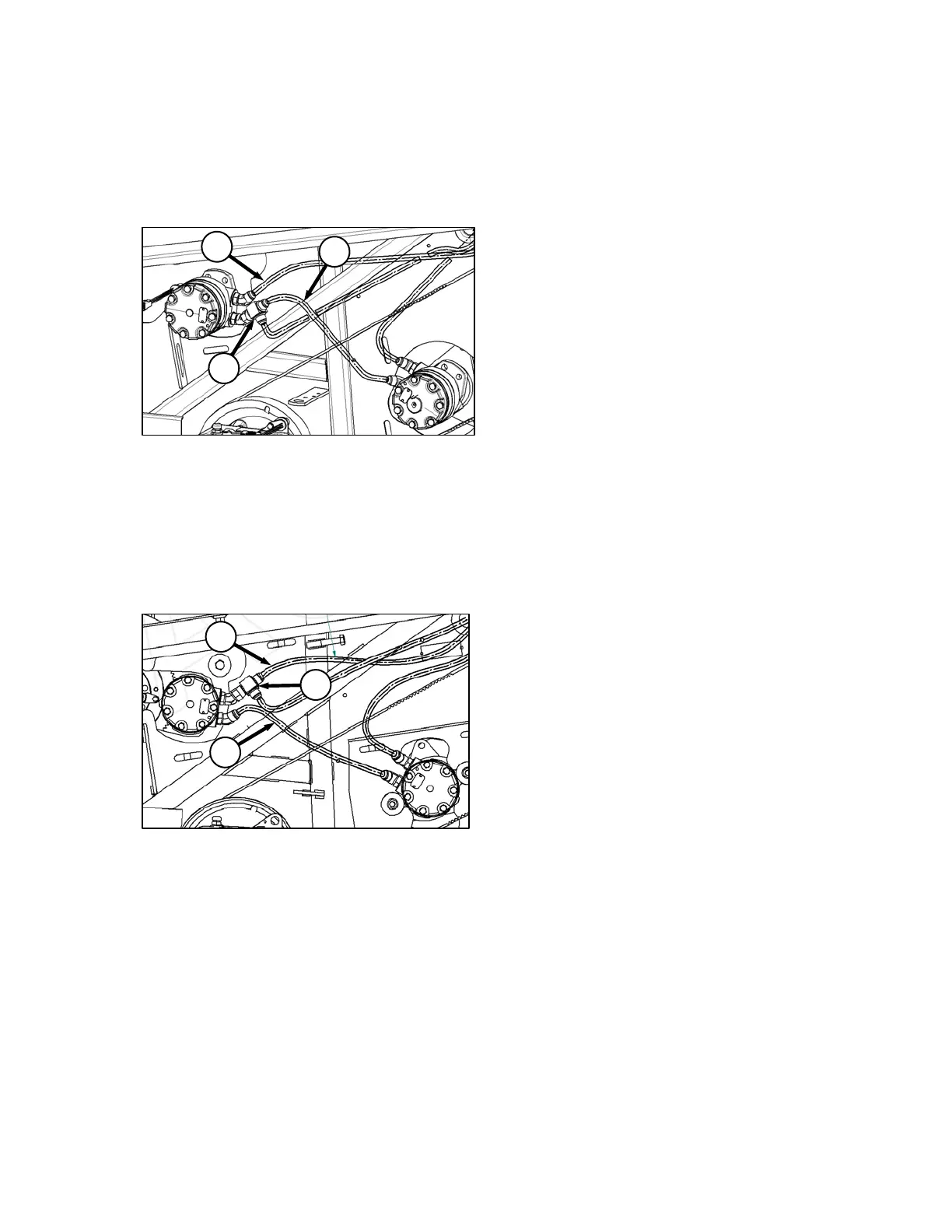

p. Check hose routing at the reel motor. The hose
routing depends on which windrower model the
header is being attached to. The header is
factory-assembled for M150, M155, and M200
windrowers.
q. Change hoses as follows if header is being
mounted on a M100, M105, or M205 windrower:
1. Disconnect hose (C) at tee (E).
2. Disconnect hose (D) at reel motor.
3. Disconnect tee (E) at motor lower port and
relocate to upper port.
4. Connect hose (D) to tee (E).
5. Connect hose (C) to motor lower port.
FACTORY CONFIGURATION
C
D
E
M100, M105, M205 CONFIGURATION
C
D
E
