SECTION 6 OPERATION
Form 169000 / 169040 44 Revision D
6.6.2.4 M205
CAUTION
To prevent accidental movement of the
windrower, place all controls in NEUTRAL or
in PARK, engage park brake (if applicable),
shut off engine, and remove key.
The M205 must be equipped with an auger drive
basic kit and a completion kit as shown above.
If necessary, obtain the following kits from your
MacDon Dealer, and install them in accordance
with the instructions supplied with the kit.
KIT DESCRIPTION KIT NUMBER
Base Kit B5491
Completion B5492
Coupler B5497

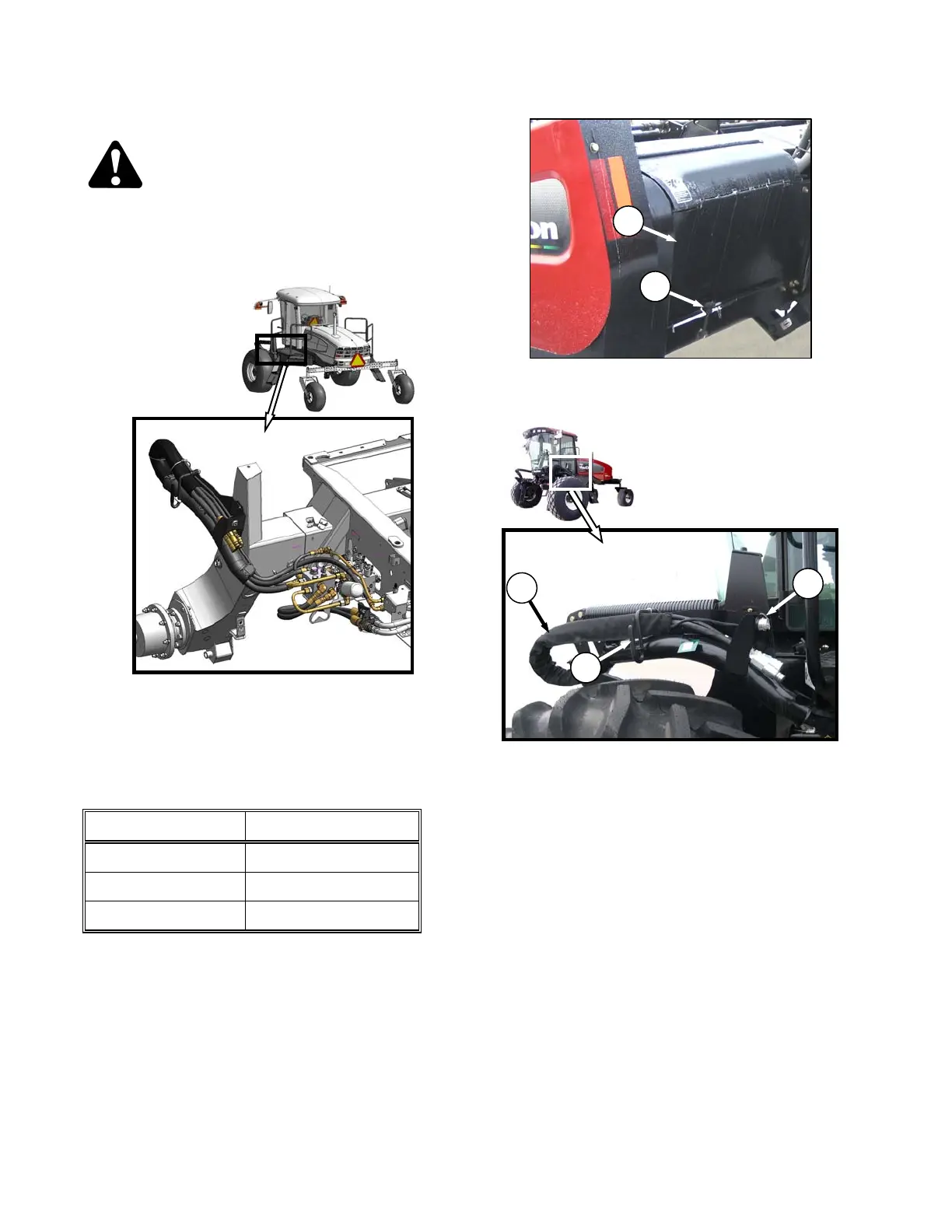

a. Disengage rubber latch (A), and open driveline
shield (B).
b. Remove the cap (C) from electrical connector,
and remove connector from support bracket.
c. Disengage and rotate lever (D) counter
clockwise to “fully up” position to release the
hose bundle (E).
d. Move hose/electrical bundle (E) to header.
(continued next page)
A
B
D
C
E
AUGER HEADER HYDRAULICS FOR M205
To Next Page
