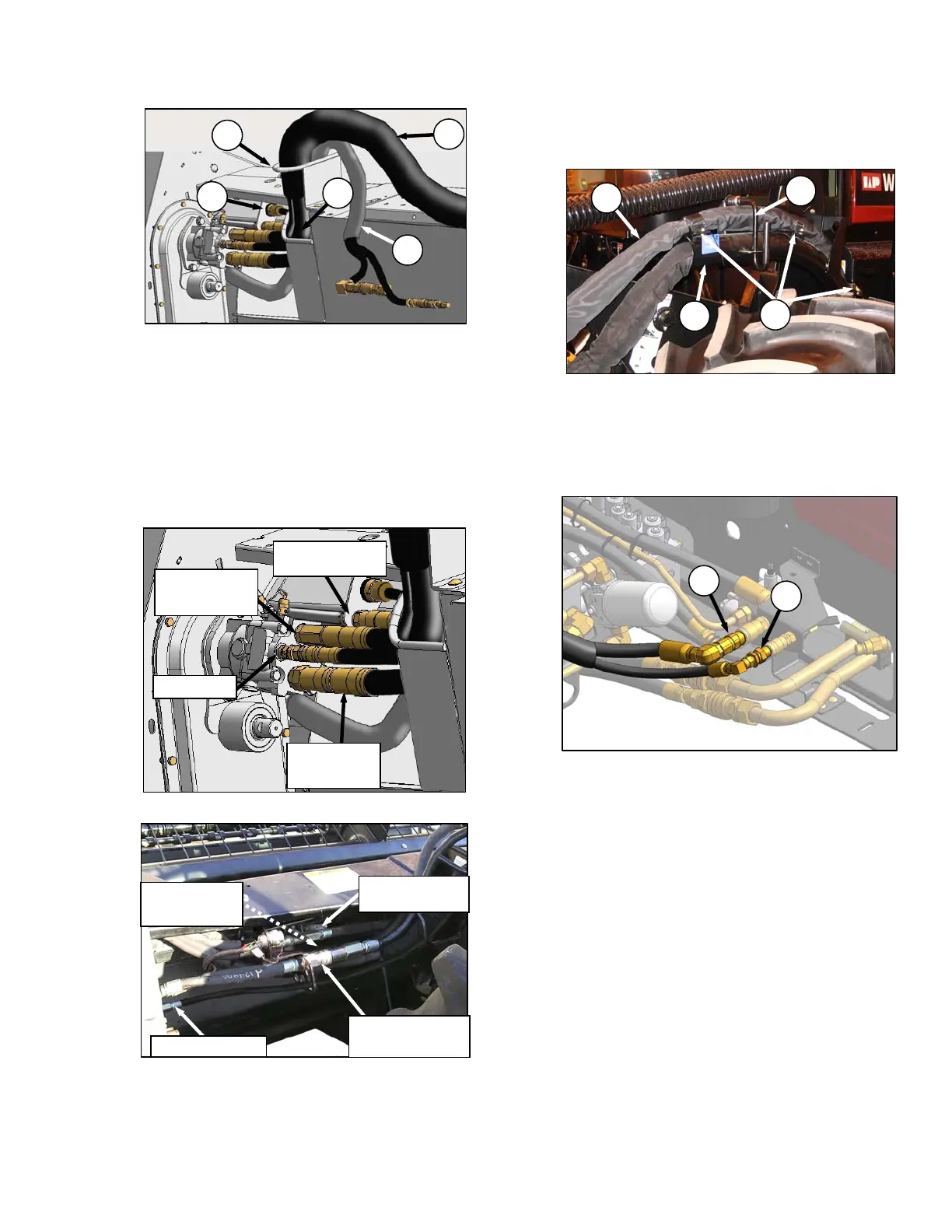

e. Route bundle (E) from windrower through
support (F) and access hole (G) in header frame
alongside existing hose bundle (H) from header.
f. Remove cover on header electrical receptacle
(J).
g. Push connector onto receptacle, and turn collar
on connector to lock it in place.
h. Attach cover to mating cover on windrower
wiring harness.
i. Remove caps from hydraulic couplers, and
clean if necessary.
j. Push hose connectors onto mating receptacles
(as shown) until collars on receptacles snap into
“lock” position.
k. Route auger return and reel pressure hose
bundle (H) from header to windrower, and locate
bundle above existing hose support (K) (as
shown).
l. Secure with three straps (L), and lower lever (D).
m. Push auger/reel pressure (A) and auger/reel
return (B) hose couplers onto mating
receptacles on valve block until collar on
receptacle snaps into “lock” position.
n. Re-route header drive hoses. Refer to Section
6.6.2.1 M100, M105, step q. on page 39.
