OPERATION
Form # 169053 37 Model Year - 2010
6.12.4 Flatbed
CAUTION
Use the following procedure when
transporting the mower conditioner on a
flatbed trailer.

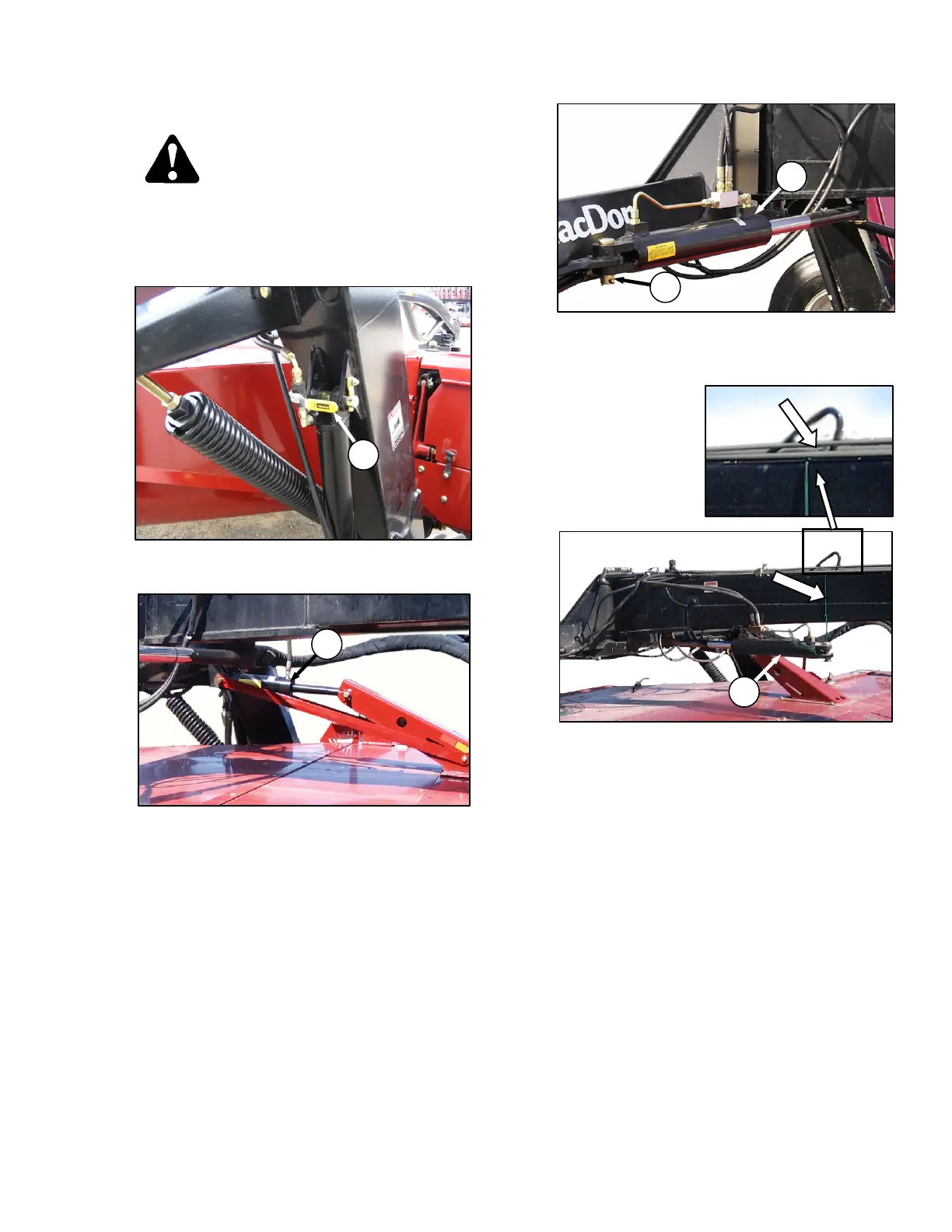

6.12.4.1 Loading
a. Lower the header to the ground and engage lift
cylinder lock-out valves (A).
b. Retract header angle control link (B) to minimum
length.
c. Unhook tractor from mower conditioner. See
Section 6.5 Mower Conditioner/Tractor Unhook.
d. Remove pin (C) attaching steering cylinder (D)
at frame and swing cylinder under APT. Store
pin in barrel end of cylinder.
e. Secure cylinder (D) to APT with shipping wire or
equivalent.
IMPORTANT
Ensure shipping wire is not over hydraulic
lines.
(continued next page)
A
B
D
C
D
To Next Page
