MAINTENANCE/SERVICE
Form # 169053 77 Model Year - 2010
7.8.6.3 Driven and Suspended Deflectors - 16
Ft
DANGER
Stop engine and remove key from ignition
before leaving operator's seat for any
reason. A child or even a pet could engage
an idling machine.
CAUTION
Exercise caution when working around the
blades. Blades are sharp and can cause
serious injury. Wear gloves when handling
blades.

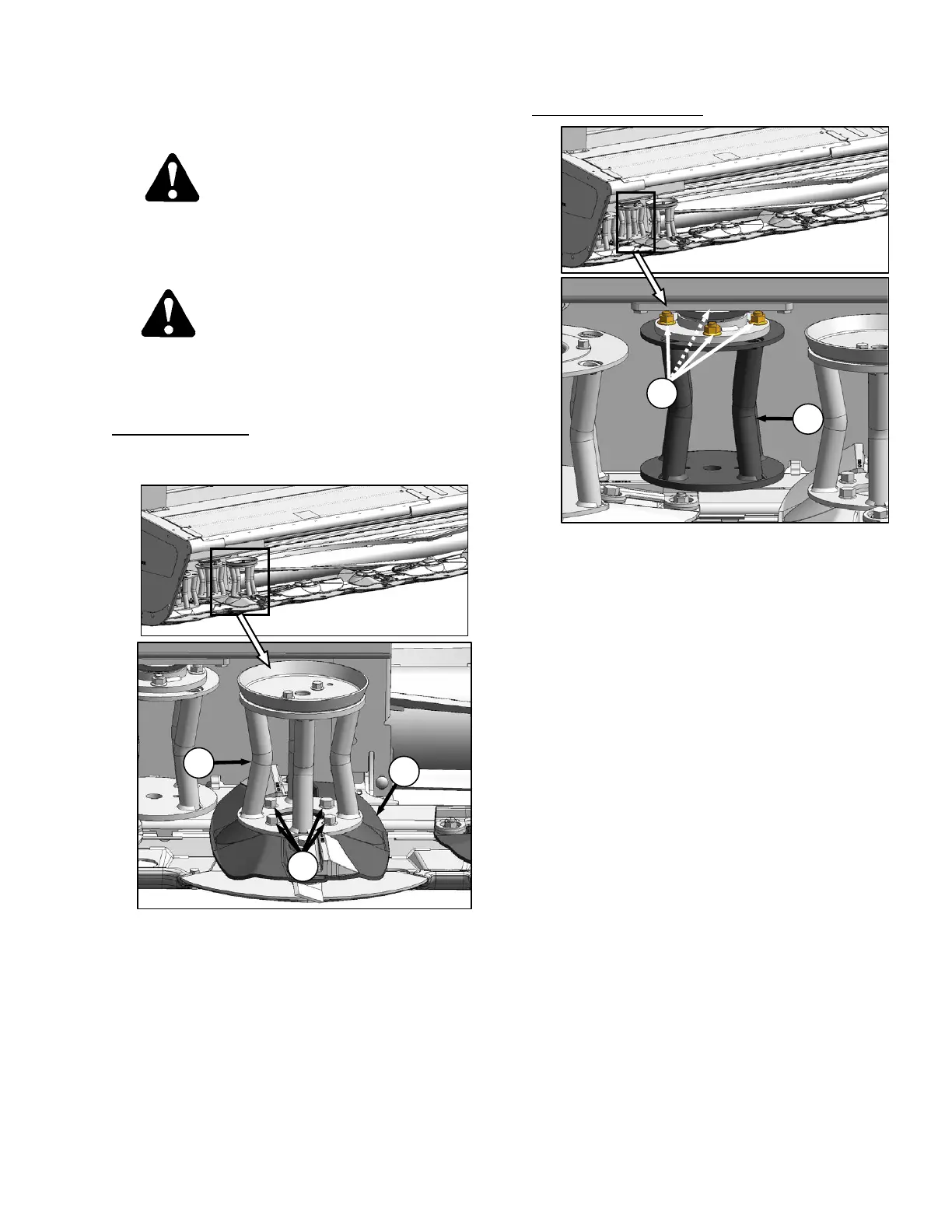

Driven Deflector (A)
a. Place a block of wood between two discs to
prevent deflector from turning.
b. To remove driven deflector (A), remove four
bolts (B) and remove deflector.
c. To install deflector (A), position deflector on disc
(C) and install bolts (B) and torque to 92 ft·lbf
(125 N·m).
d. Remove block of wood if used.
Suspended Deflector (D)
a. Place a block of wood between two discs to
prevent deflector from turning.
b. To remove suspended deflector (D), remove
four bolts (E) and nuts, and remove deflector.
c. To install deflector (D), position deflector on
flange (F) and install bolts (E) and nuts. Tighten
to 92 ft·lbf (125 N·m).
d. Remove block of wood if used.
e. Close doors.
RH SHOWN – LH OPPOSITE
B
A
C
RH SHOWN – LH OPPOSITE
D
E
