MacDon R80 - Page 81

MAINTENANCE/SERVICE
Form # 169053 79 Model Year - 2010

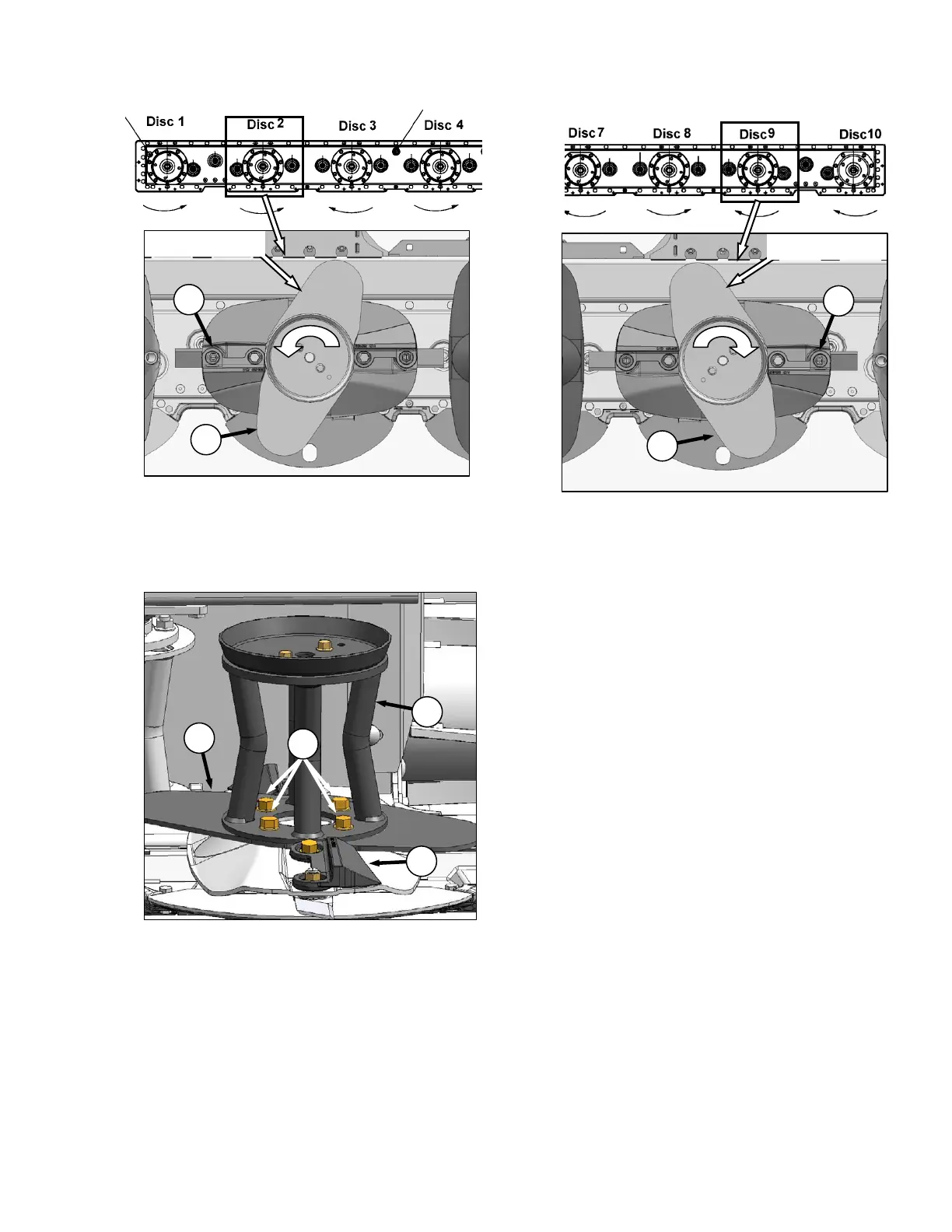

g. Locate feed pate (D) on the disc ensuring that
hole in feed plate registers on disc. Position
plate as shown and align holes.
IMPORTANT
Feed plate should be located so that when
holes are aligned, the leading edge of the
feed plate (D) is further from the
accelerator (E) than the trailing edge.
NOTE
Older type feed plates may require
trimming to properly locate on disc.
Locate feed plate (D) on disc and scribe a
trim line on feed plate to clear the
accelerators (E). Trim feed plate to suit.
h. Re-position deflector (C) and align holes.
i. Re-install bolts (B) and tighten to 92 ft·lbf (125
N·m).
j. Repeat above steps for opposite side.
k. Manually rotate discs to check for interference of
feed plate and adjacent parts.
D
LEADING EDGE
COUNTERCLOCKWISE ROTATION
RH INBOARD DISC
E
CLOCKWISE ROTATION
LH INBOARD DISC
D
LEADING EDGE
E
B
C
D
E
COUNTERCLOCKWISE ROTATION
RH INBOARD DISC
