MAINTENANCE/SERVICE
Form # 169053 91 Model Year - 2010

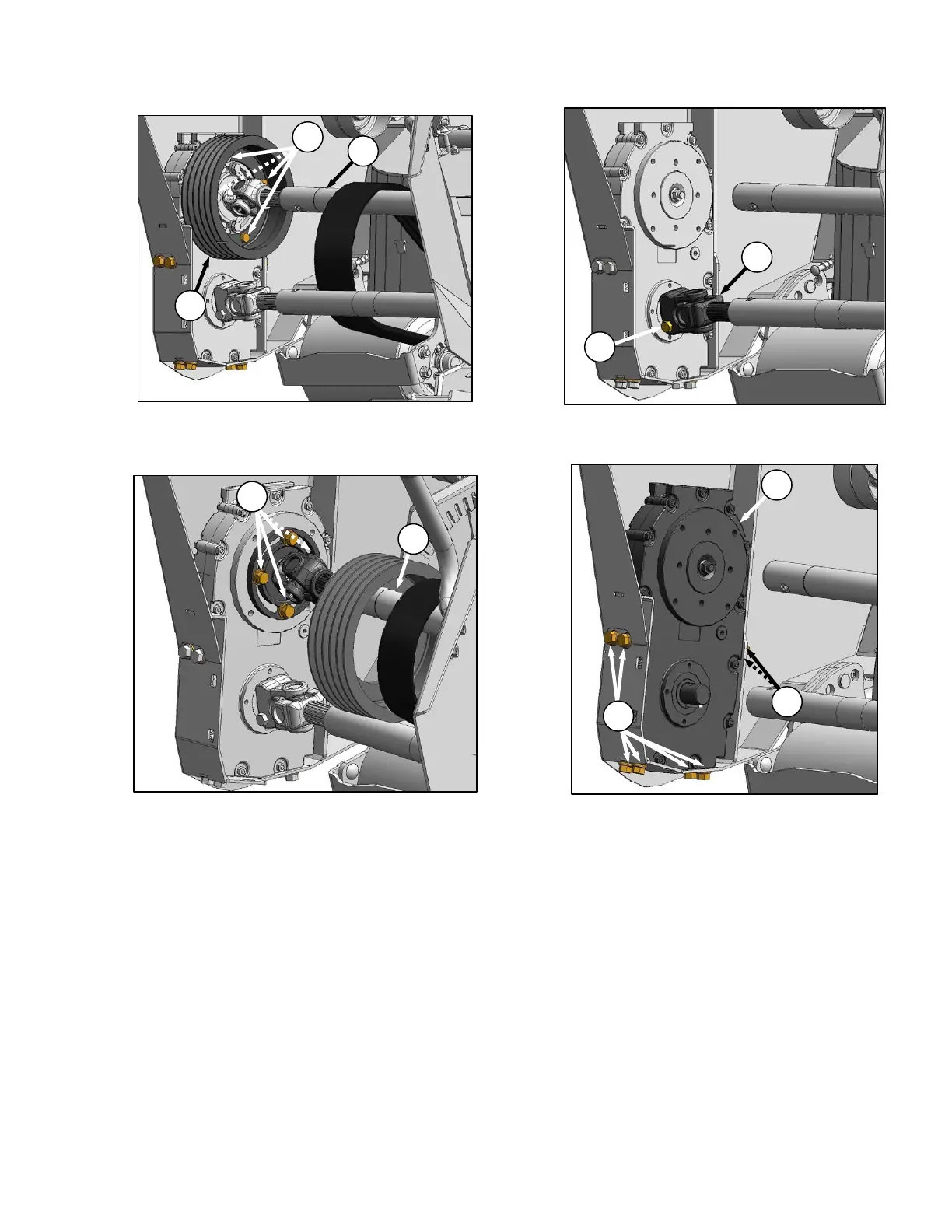

g. Remove bolts (M). Slide pulley (L) off gearbox
and slide pulley over timing flange yoke onto
driveshaft (N).
h. Remove bolts (O) and swivel driveshaft (N) so
that pulley can be slipped off driveline.
i. Position driveline clear of work area.
j. Loosen bolt (Q) on lower U-joint and slide yoke
(R) off gearbox.
k. Remove eight bolts (S) attaching gearbox (T) to
frame and lift gearbox out of drive compartment.
S
T
S
R
Q
M
N
L
O
N
