D8B Manual • Chapter 1 • page 5
2. Connect the data cable between the Remote CPU
and the console. Rotate the thumbscrews on each
connector clockwise until they are finger tight.
3. Make sure the POWER switch on the Remote
CPU is off.
4. Connect the detachable linecord to the Remote
CPU. Shortly, we’ll connect to AC power.

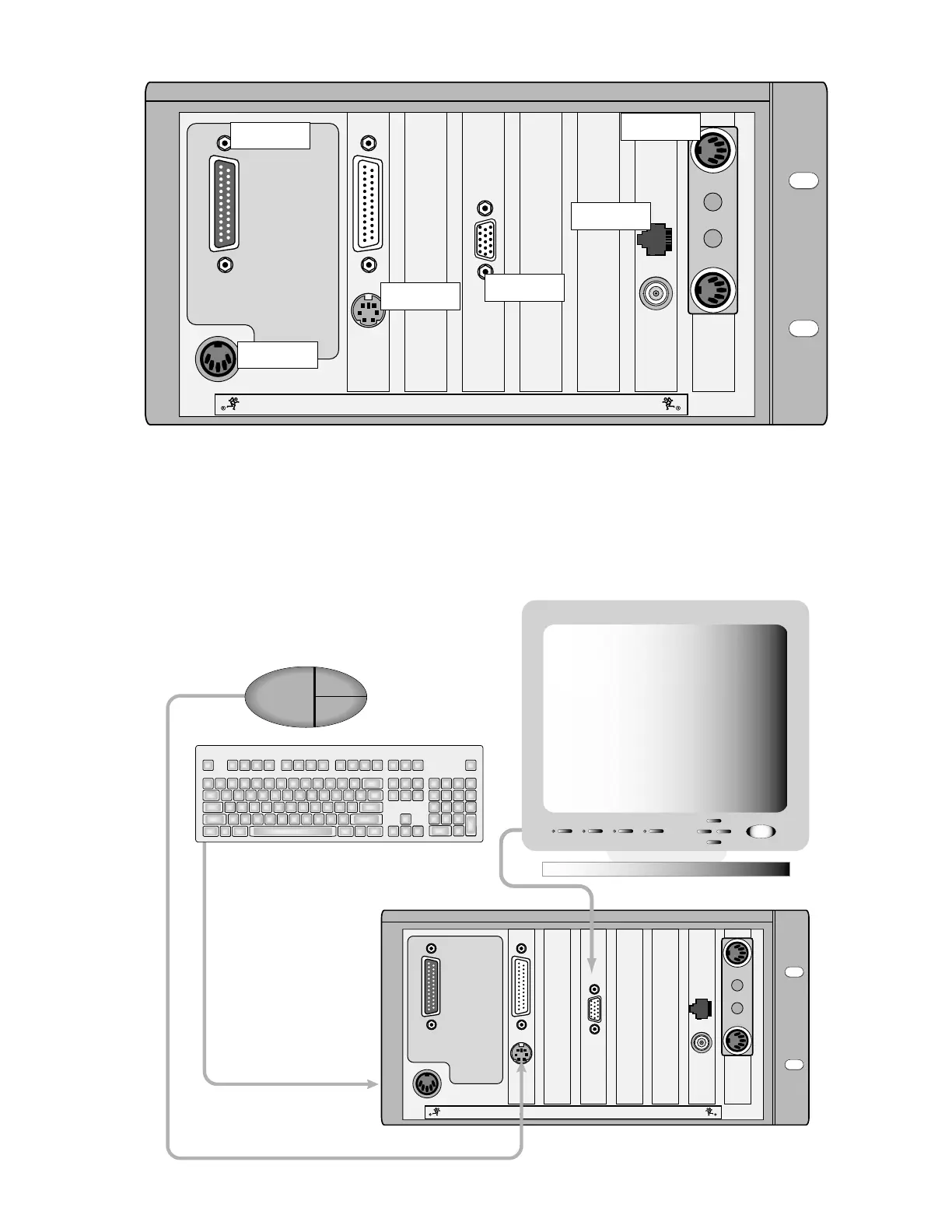

Next, connect the keyboard, mouse,
and video monitor.
These connections are optional, but we strongly
recommend using them to get the most from your
new Digital 8•Bus console.
