D8B Manual • Chapter 4 • page 121
TDIF Hookup to HDR24/96 (DIO•8)
Cables & Hardware
(3) DIO•8 cards for HDR24/96
(3) DIO•8 cards for D8B
(1) Clock I/O card for D8B
(3) TDIF cables
(1) 75 Ω BNC word clock cable
Hookup
1. Connect the three TDIF cables
between the corresponding TDIF jacks
on the HDR24/96 and D8B.
2. When TDIF is used, the D8B must
have a Clock I/O card installed. To
make the D8B the clock master,
connect its Word Clock Out (not
DIO•8 Sync out) to the HDR24/96
Word Clock In. To make the HDR24/96
the clock master, connect its Word
Clock Out to the D8B Word Clock In.
HDR24/96 Settings
1. Set the Tape Input format for each
DIO•8 card to TDIF, and the Tape
Output format to TDIF.
2. If the HDR24/96 is the clock master,
set the Sample Clock to Internal; if it
is a clock slave, set it to Word Clock
and depress the 75 Ω termination
switch on the Sync card.
3. Set the Sample Rate to 44.1kHz or
48kHz according to your preference.

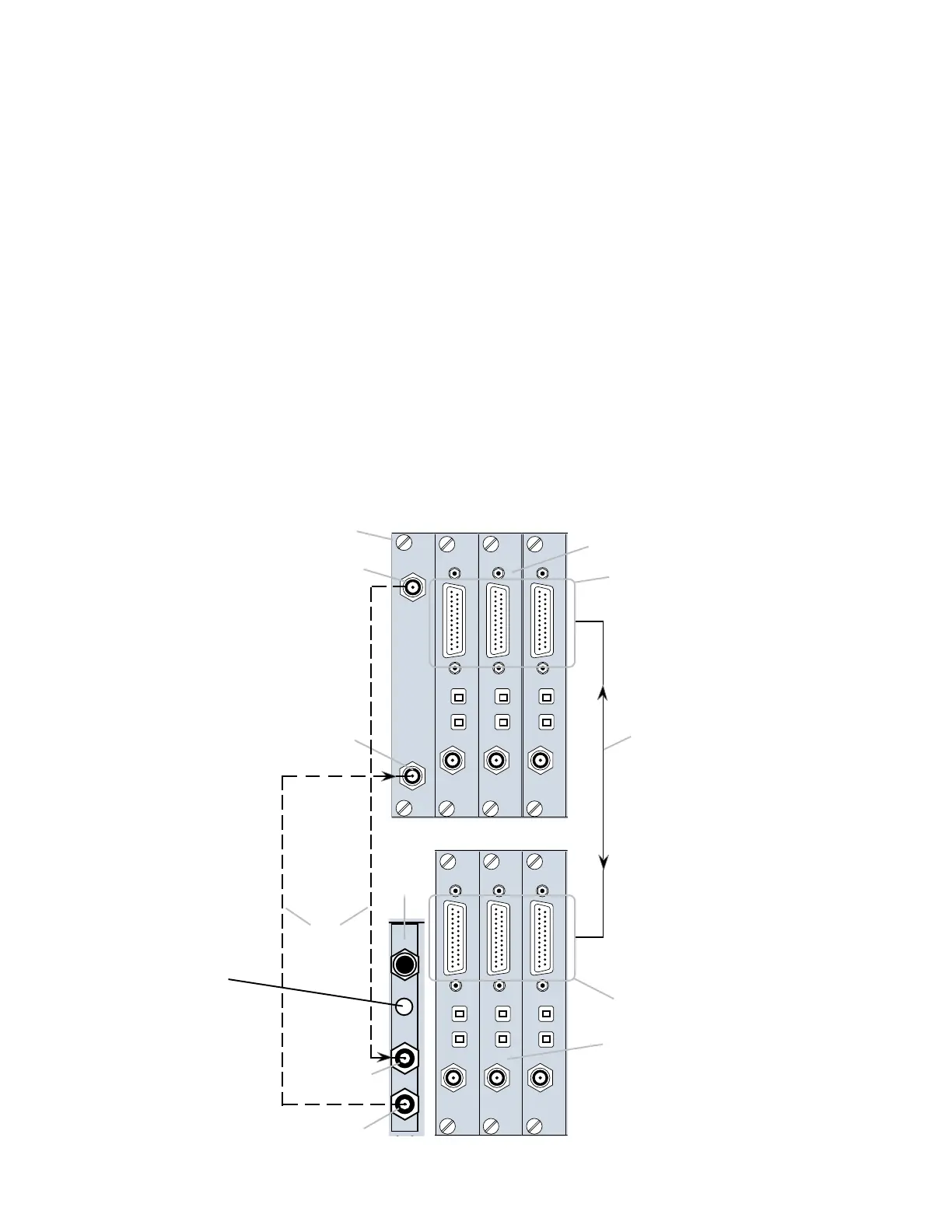

TDIF Hookup with DIO•8
Digital 8
•Bus
APOGEE
SYNC
APOGEE
Word
Clock
Out
Word
Clock
In
Word
Clock Out
(HDR24/96
as Master)
Word
Clock
Out
(D8B as
Master)
TDIF Connection
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
Word
Clock In
TDIF Cables
(DB25)
DIO•8 Cards
Word
Clock Out
Apogee
Clock I/O
Card
TDIF Connection
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
APOGEE
DIGITAL I/O
SYNC
IN OUT
TDIF
ADAT OPTICAL
HDR
Sync
Card
Word
Clock In
HDR 24/96
DIO•8 Cards
Word
Clock Out
Use
one
only
Depress the
Termination
button if the
HDR24/96 is
set to Slave
To Next Page
